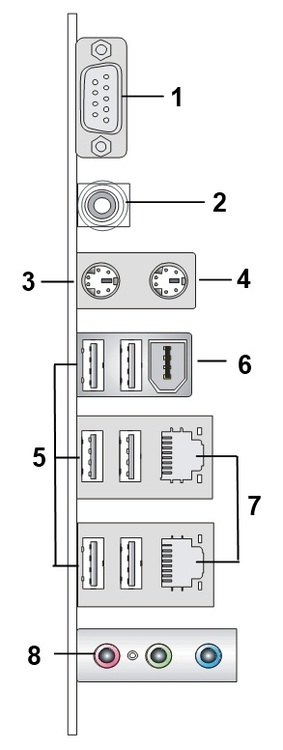

Tyan Thunder n6650W S2915A2NRF-E Ports
Serial Port: 9-pin RS-232 port for connecting serial data devices (also known as a COM port).
Coaxial S/PDIF Out: Digital audio output port compatible with coaxial S/PDIF cables / devices.
PS/2 Mouse Port: Connection for a PS/2 mouse.
PS/2 Keyboard Port: Connection for a PS/2 keyboard.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
Firewire Port (IEEE 1394a): IEEE 1394a port, also known as Firewire A, is an older standard for high-speed device connectivity.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

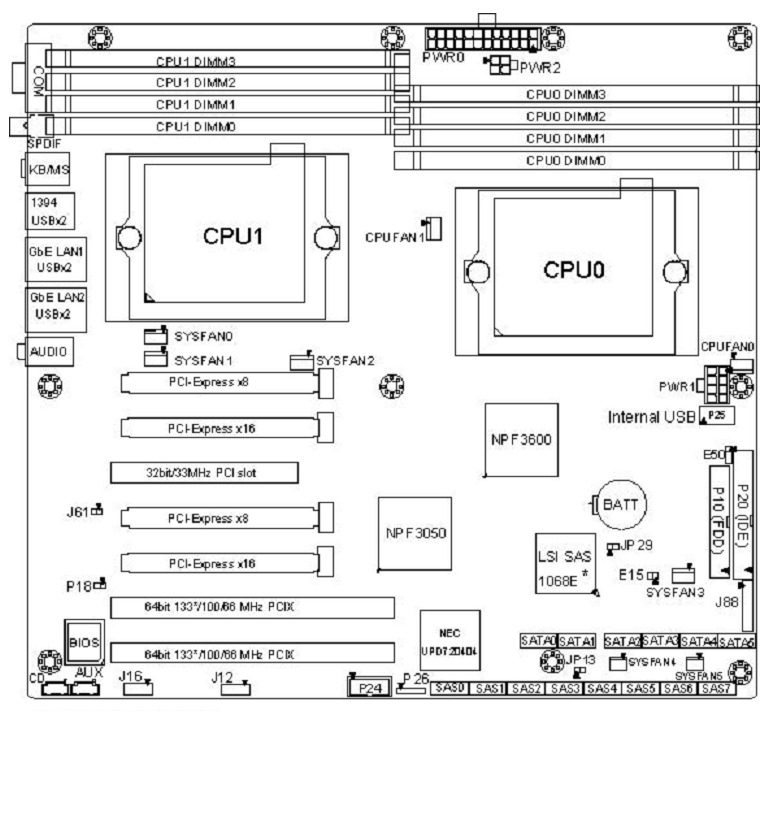

Tyan Thunder n6650W S2915A2NRF-E Schematic

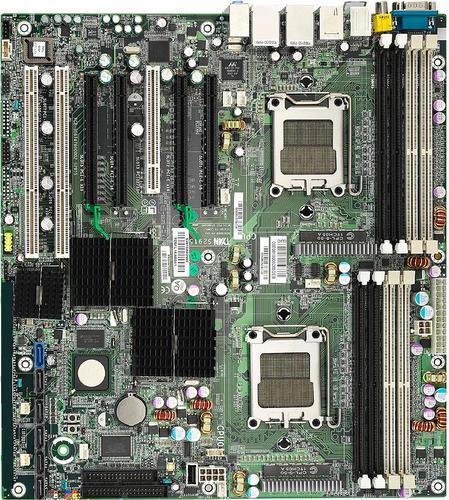

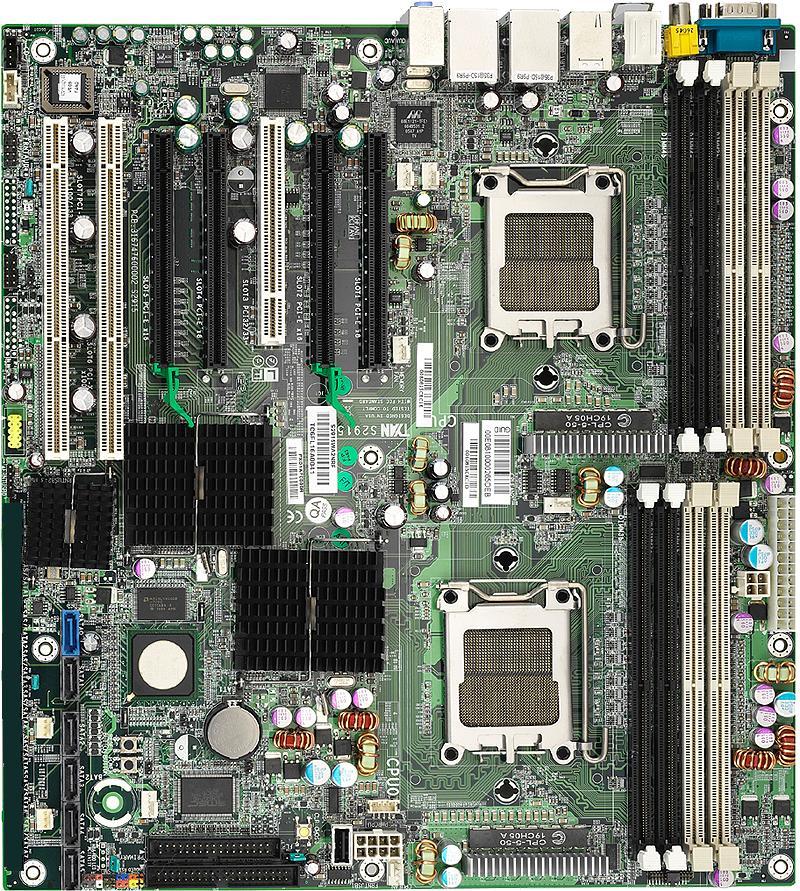

Model: Tyan S2915A2NRF-E
Specifications
| Socket | Dual Socket F |
| CPU Compatibility | Opteron 2000 Series |
| Form Factor | EATX |
| Chipset Manufacturer | nVidia |
| Chipset | 3600 + 3050 |
| Front Side Bus | HyperTransport |
| Network Connectivity | Dual Gigabit Networking |
| Cooling System | Heatsink |
| Number of Fans | 0 |
Memory Support | |
| Type | DDR2 REG ECC |
| Maximum Speed | 667 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 64 GB |
External Connections | |
| USB 2.0 | 6 |
| PS/2 Keyboard | Yes |
| PS/2 Mouse | Yes |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
| Serial (COM) Port | 1 |
| Firewire | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| Firewire | 1 |
| Floppy | 1 |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | PCI-X 133 MHz |
| Slot 2 | PCI-X 133 MHz |
| Slot 3 | PCI Express x16 |
| Slot 4 | PCI Express x8 in a x16 size |
| Slot 5 | PCI |
| Slot 6 | PCI Express x8 in a x16 size |
| Slot 7 | PCI Express x16 |
Additional Information | |
| RAID Support | 0/1/0+1/5 |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 330 mm (13.0 in) |
| Net Weight | 1 kg (2.2 lbs) |
Internal Connections
SATA2: 6
