Specifications
| Form Factor | 2U |
| Chipset | AMD 8131 |
Memory Type: DDR400/333/266 ECC Reg
Max CPU: 4x Socket 940 Opteron 800 Series
Max Memory: 32 GB
Memory Slots: 16
AGP: na
# PCI: 2x133Mhz/64bit PCI-x, 2x66Mhz/64bit PCI-x, 1x 33Mhz/32bit PCI
Onboard Items: ATI Rage XL 8MB Video, 2x BCM5704C Gigabit LAN
Hard Drive Support: 2x Hot-swappable SCSI 80-pin HDD Bays (LSI 53C1030 Ultra320)
Specification
Mfr Part Number: B4882T46U2H

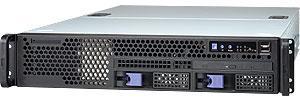

Transport TX46(B4882T46U2H) 2U Rackmount, Come With Slim CD-ROM

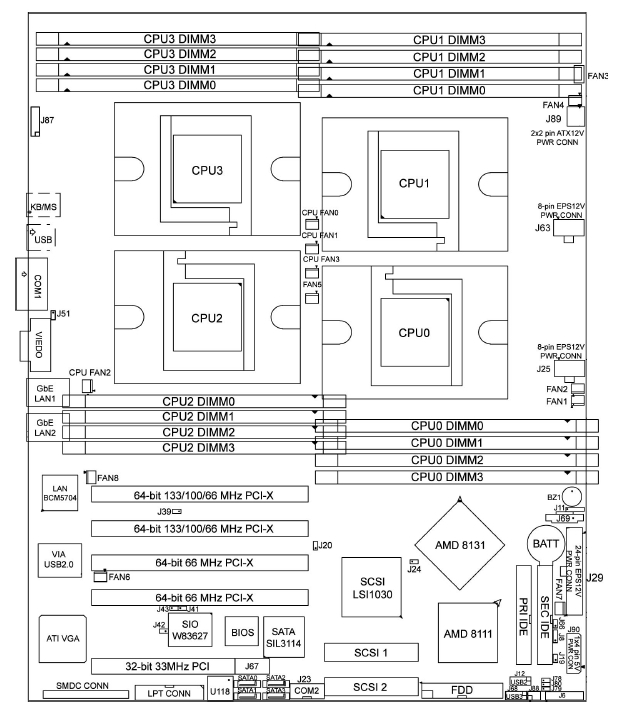

Motherboard: S4882UG2NR
Chipset: AMD 8131
CPU: Quad PGA 940-pin ZIF Socket Support Up To Four AMD Opteron 800 Series Processors
Memory: 16*DIMMs Support ECC/REG DDR400/333/266 Up To 32GB(Dual Channel)
Storage: 2* Hot-swappable SCSI(80-pin) HDD Bays(LSI 53C1030 Ultra320)
Video: ATI Rage XL 8MB PCI Graphics Controller
LAN: 2* Broadcom BCM5704C Gigabit LAN(PCI-X)
Expansion Slot: 2*133/100/66MHz 64bit PCI-X; 2* 66/33MHz 64bit PCI-X; 1* 33MHz 32bit PCI Total Of 5* Low Profile Slots
Power Supply: Single 2U 700W A/C Powersupply w/PFC
Dimension: 17.25"(W)*28"(D)*3.5"(H)
