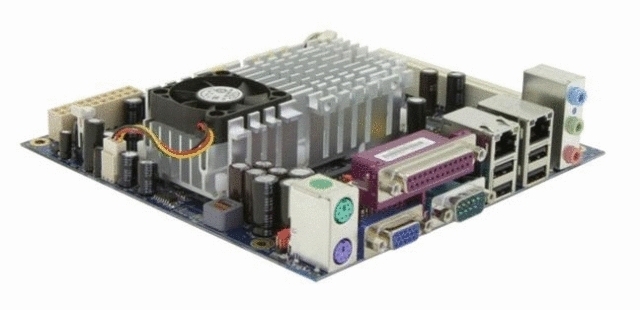

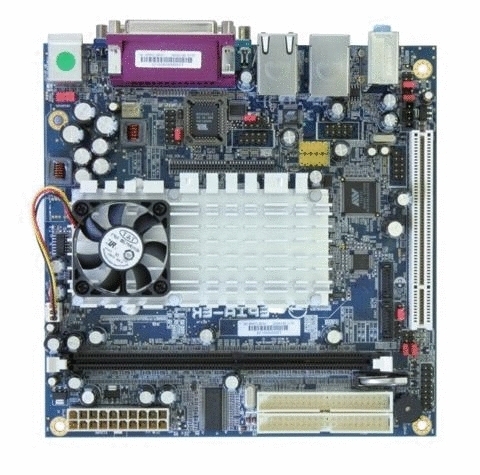

Model: VIA EPIA EK10000G
Specifications
| CPU Compatibility | VIA 1.0GHz Luke CoreFusion Processor |
| Form Factor | ITX |
| Chipset | VT8237R Series South Bridge |
| Wired Network Connectivity | 10/100Mbps Networking |
| Cooling System | Heatsink and Fan |
| Number of Fans | 1 |
Memory Support | |
| Type | DDR |
| Maximum Speed | 400 MHz |
| Number of Slots | 1 |
| Maximum Size per Slot | 1 GB |
| Maximum Amount Supported | 1 GB |
Onboard Video | |
| Chipset Manufacturer | VIA |
| Processor Type | UniChrome Pro |
| VGA | 1 |
External Connections | |
| USB 2.0 | 4 |
| PS/2 Mouse | Yes |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (5.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
| Serial (COM) Port | 1 |
| Printer (LPT) Port | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | PCI |
Dimensions | |
| Width | 170 mm (6.7 in) |
| Depth | 170 mm (6.7 in) |
Internal Connections
SATA2: 2
The VIA EPIA EK Mini-ITX mainboard is available with the 1GHz VIA Luke CoreFusion processor platform and boasts a rich array of connectivity and digital media features to make possible a new generation of bandwidth efficient network devices focused on digital media applications.
Integrated into the VIA Luke CoreFusion processor platform is a host of digital media features including the VIA UniChrome IGP Pro graphics processor with MPEG-2/4 hardware decoding acceleration to enable smooth playback and transmission of digital media, as well as the VIA Vinyl VT1618 6-channel audio with VIA Smart5.1 Surround sound. Hardware security is available too, with the VIA PadLock Security Engine. Designed to offer real-time military-grade protection of data stored and exchanged, the VIA PadLock Security Engine enables developers to offload the computational process involved in complex encryption algorithms, freeing processor loading to handle more data faster.
Offering a flexible upgrade path from previous generations of VIA EPIA Mini-ITX mainboards, the VIA EPIA EK Mini-ITX mainboard sets new standards for flexibility and connectivity with dual LAN support that includes the option for a single Gigabit Ethernet port, as well as up to four COM and eight USB ports, a printer port, a PCI port, and Digital I/O (4 GPI/GPO). The mainboard also boasts both Serial and Parallel ATA support and utilizes DDR400 memory.
The VIA EPIA EK Mini-ITX has a maximum power consumption of just 19W, and is fully compatible with all Mini-ITX, FlexATX and MicroATX chassis and associated accessories such as the new VIA 120W DC-DC converter, external PCI riser card, VIA DVI interface and VIA LVDS panel support module, and is compatible with Microsoft Windows XP as well as Linux, making it the ideal platform for developers to create energy efficient always-on network based devices for digital media applications.
