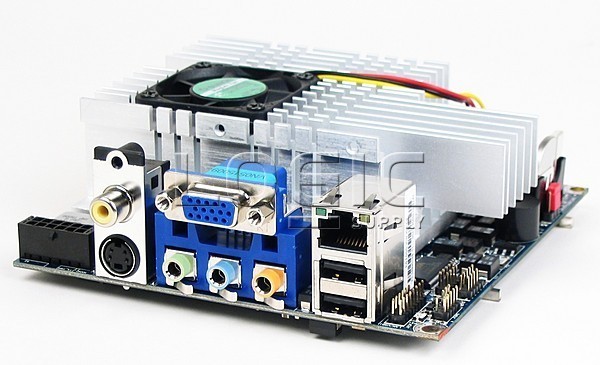

Model: VIA EPIA N10000G
Specifications
| CPU Compatibility | VIA 1.0GHz Luke CoreFusion Processor |
| Form Factor | ITX |
| Chipset | VT8237R Series South Bridge |
| Wired Network Connectivity | 10/100Mbps Networking |
| Cooling System | Heatsink and Fan |
| Number of Fans | 1 |
Memory Support | |
| Type | DDR |
| Maximum Speed | 400 MHz |
| Number of Slots | 1 |
| Maximum Size per Slot | 1 GB |
| Maximum Amount Supported | 1 GB |
Onboard Video | |
| Chipset Manufacturer | VIA |
| Processor Type | UniChrome Pro |
| VGA | 1 |
| S-Video | 1 |
| RCA | 1 |
External Connections | |
| USB 2.0 | 2 |
| PS/2 Keyboard | No |
| PS/2 Mouse | No |
| Audio Out | Surround Sound (5.1) |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 1 |
| Serial (COM) Port | 1 |
| Printer (LPT) Port | 1 |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| IDE | 2 Devices |
Expansion Slots | |
| Slot 1 | Mini-PCI |
Dimensions | |
| Width | 120 mm (4.7 in) |
| Depth | 120 mm (4.7 in) |
Internal Connections
SATA2: 1
