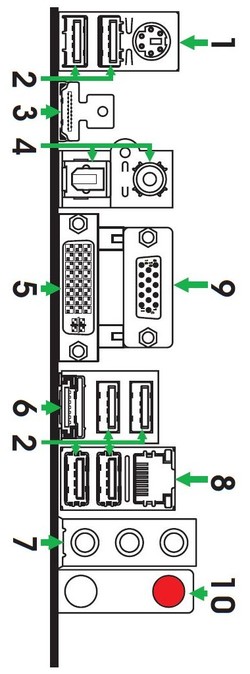

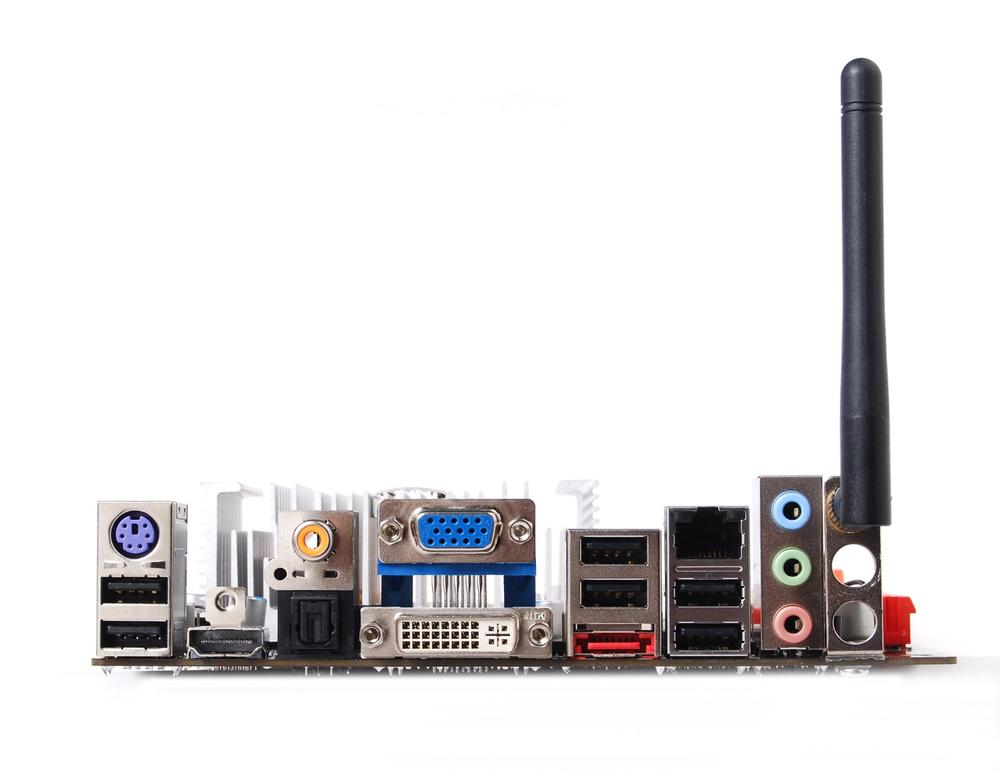

Zotac IONITX-F-E ATOM N330 Ports
PS/2 Keyboard Port: Connection for a PS/2 keyboard.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
Coaxial S/PDIF Out: Digital audio output port compatible with coaxial S/PDIF cables / devices.
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.
External SATA Port: External SATA (eSATA) port for connecting to drives directly via SATA rather than USB or Firewire.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.

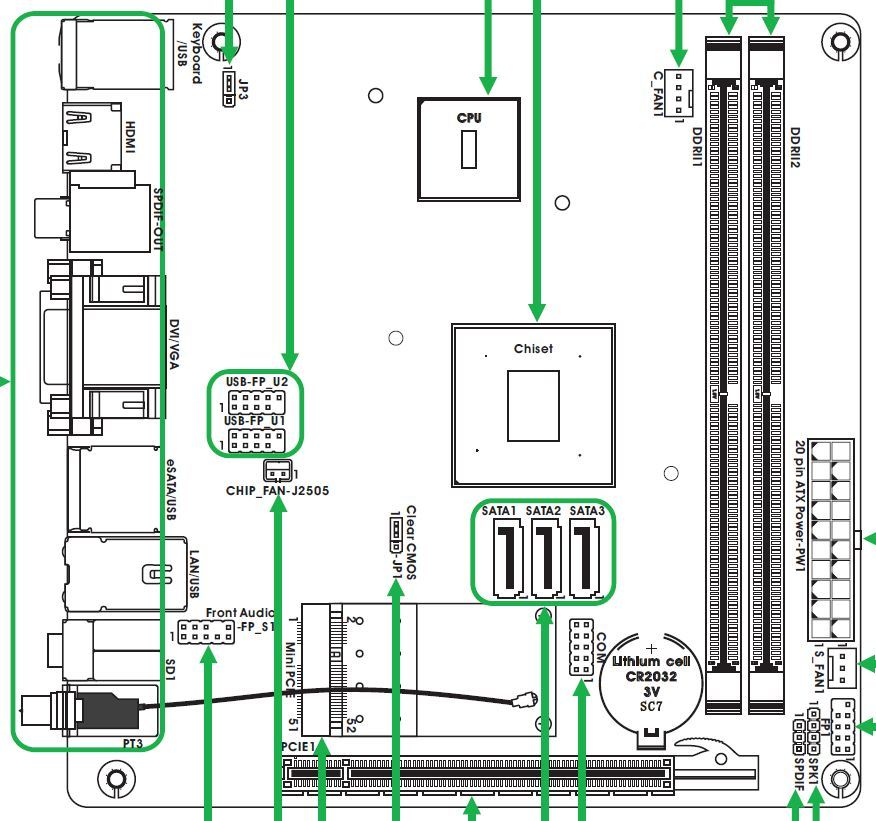

Zotac IONITX-F-E ATOM N330 Schematic

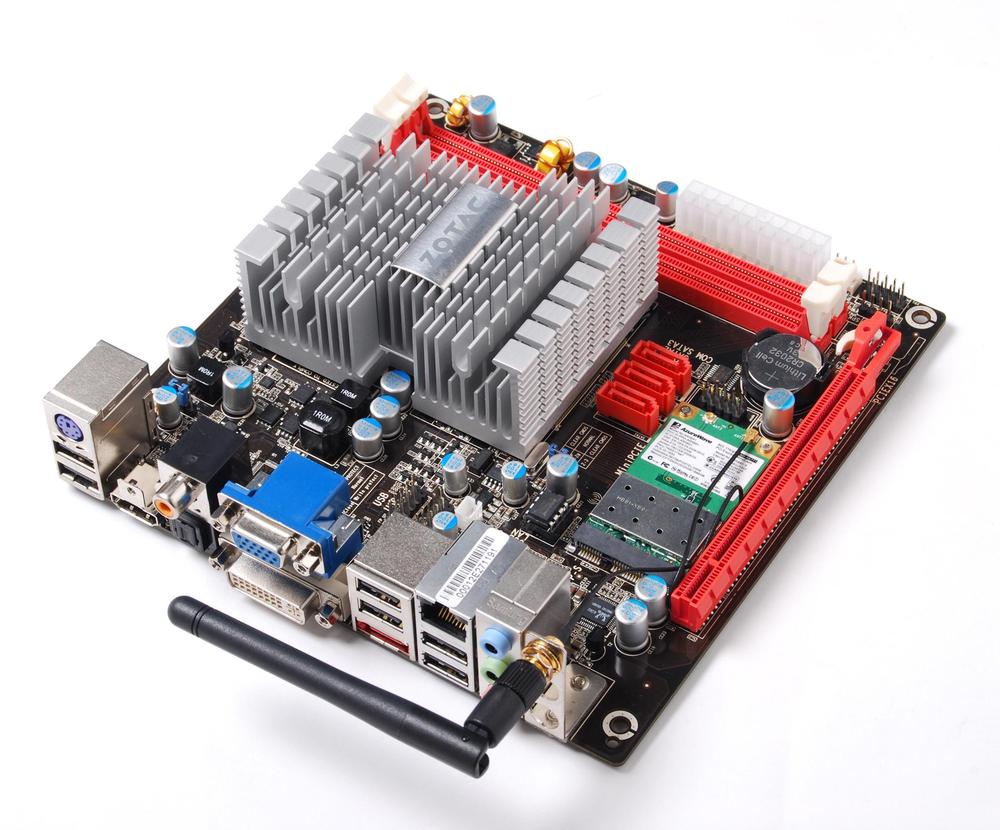

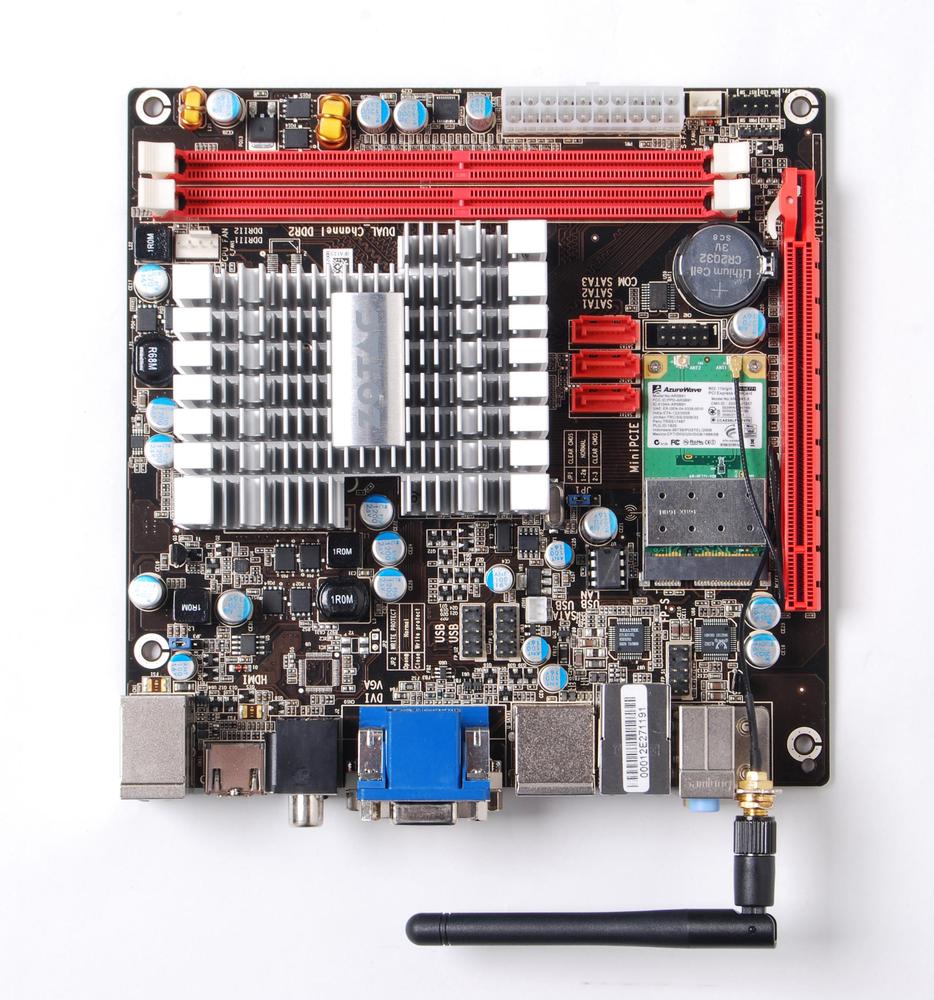

Model: Zotac IONITX-F-E
Specifications
| CPU Compatibility | Intel ATOM N330 |
| Form Factor | Mini-ITX |
| Chipset Manufacturer | nVidia |
| Chipset | MCP7A-ION |
| Front Side Bus | 533Mhz |
| Wired Network Connectivity | Gigabit Networking + 802.11 G/N |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR2 |
| Maximum Speed | 800 MHz |
| Number of Slots | 2 |
| Maximum Size per Slot | 2 GB |
| Maximum Amount Supported | 4 GB |
Onboard Video | |
| Chipset Manufacturer | nVidia |
| Processor Type | GeForce 9400M |
| Maximum Shared Memory | 512 MB |
| Maximum Resolution | 1920x1200 |
| DVI | 1 |
| VGA | 1 |
| HDMI | 1 |
| Notes: | HDCP Compliant, HDMI version 1.3 |
External Connections | |
| USB 2.0 | 6 |
| PS/2 Mouse | No |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (5.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical and Coaxial |
| External SATA | 1 |
| LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| SATA II 3.0Gbps | 3 |
Expansion Slots | |
| Slot 1 | PCI Express x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0,1,0+1 |
Dimensions | |
| Height | 38.4 mm (1.5 in) |
| Width | 177.6 mm (7.0 in) |
| Depth | 170 mm (6.7 in) |
| Net Weight | 0.5 kg (1.1 lbs) |
Graphics Engine Clock: 450MHz
Shader Clock: 1100MHz
16 Stream Processors.
Supports DirectX 10
nVidia PureVideo HD Support.
nVidia CUDA Ready.
nVidia PhysX Ready.
Includes 802.11n wireless. Mini PCI-Express slot is used by wireless card by default.
