Antec HCP-1200 1200W Power Supply

Power Supply

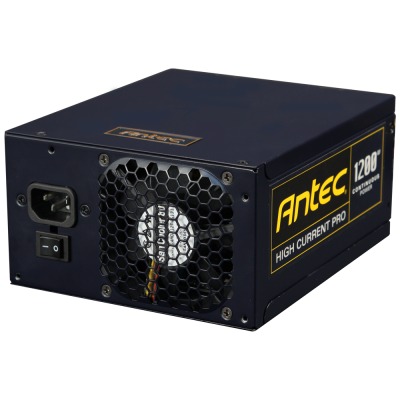

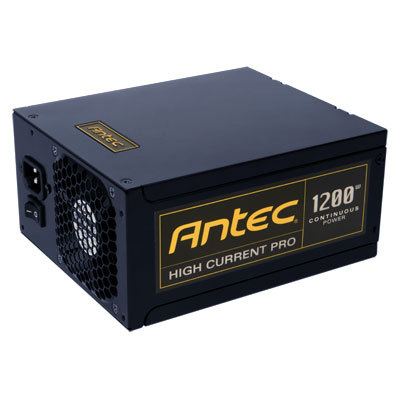

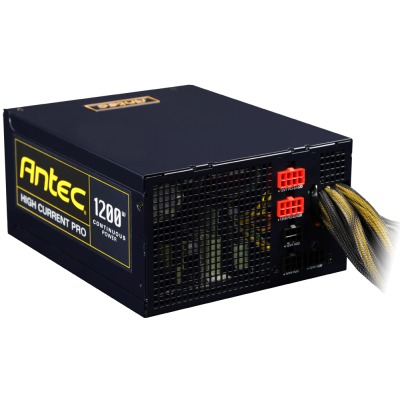

Antec HCP-1200 1200W Power Supply Picture 17641Antec HCP-1200 1200W Power Supply Picture 17642Antec HCP-1200 1200W Power Supply Picture 17643
Model: Antec HCP-1200

Specifications:
spacer
Maximum Power  1200 W
Standard Compliance  ATX12V version 2.3 and EPS version 2.92
Peak Efficiency  92 %
Efficiency Certification  80 PLUS Gold
Cooling System  80mm Fan
Safety Compliance  cUL, TÜV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
Power Distribution
+3.3V rail  25 amps
+5V rail  25 amps
+12V1 rail  30 amps
+12V2 rail  30 amps
+12V3 rail  30 amps
+12V4 rail  30 amps
+12V5 rail  30 amps
+12V6 rail  30 amps
+12V7 rail  30 amps
+12V8 rail  30 amps
Combined +12V Maximum  99 amps
Connectors
Molex  9
SATA  12
Floppy  1
PCI Express 8-pin  8
CPU Power 8 pin  1
CPU Power 8/4 pin  1
Dimensions
Height  86 mm (3.4 in)
Width  150 mm (5.9 in)
Depth  180 mm (7.1 in)
Net Weight  2.9 kg (6.4 lbs)
Input
Voltage  100~240 Vac
Frequency  50~60 Hz


with the Antec HCP-1200 1200W Power Supply.
