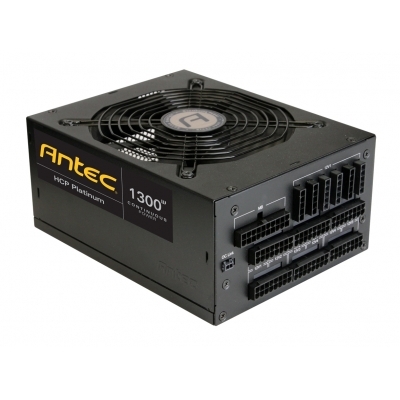

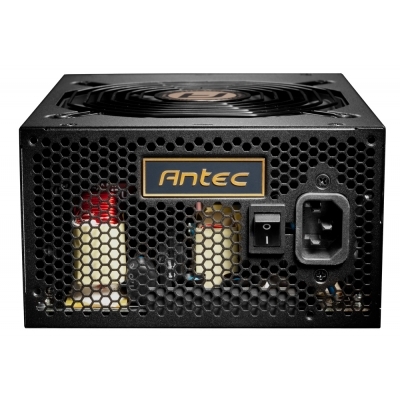

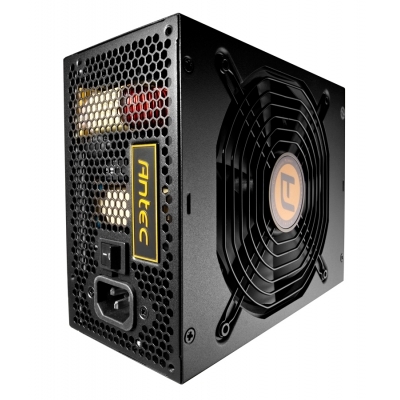

Model: Antec HCP-1300 PLATINUM
Specifications
| Maximum Power | 1300 W |
| Standard Compliance | ATX12V version 2.32 and EPS version 2.92 |
| Peak Efficiency | 94 % |
| Efficiency Certification | 80 PLUS Platinum |
| Cooling System | 135mm Fan |
| Safety Compliance | UL, cUL, CB, CE, FCC, TÜV, BSMI, CCC, C-Tick, GOST-R |
| Industry Compliance | Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protecion (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP) |
Power Distribution | |
| +3.3V rail | 25 amps |
| +5V rail | 25 amps |
| +12V1 rail | 50 amps |
| +12V2 rail | 50 amps |
| +12V3 rail | 50 amps |
| +12V4 rail | 50 amps |
Connectors | |
| Molex | 6 |
| SATA | 9 |
| Floppy | 1 |
| PCIe 8-Pin | 8 |
| CPU Power 8 pin | 1 |
| CPU Power 8/4 pin | 1 |
| External Connector Type | C13 |
Dimensions | |
| Height | 86 mm (3.4 in) |
| Width | 150 mm (5.9 in) |
| Depth | 190 mm (7.5 in) |
| Net Weight | 2.2 kg (4.9 lbs) |
Input | |
| Voltage | 100~240 Vac |
| Frequency | 50~60 Hz |
