Antec Phantom 500

Power Supply

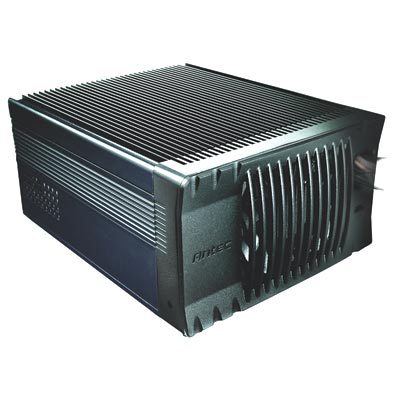

Antec Phantom 500 Picture 6391
Model: Antec Phantom 500

Specifications:
spacer
Maximum Power  500 W
Standard Compliance  ATX12V 2.01
Peak Efficiency  82-86 %
Cooling System  Passive
Noise Level  0 dB
Power Distribution
+3.3V rail  30 amps
+5V rail  30 amps
+12V1 rail  17 amps
+12V2 rail  18 amps
Connectors
Molex  5
SATA  4
Floppy  2
PCI Express  1
CPU Power 4 pin  1
CPU Power 8 pin  1
Dimensions
Height  86 mm (3.4 in)
Width  150 mm (5.9 in)
Net Weight  3 kg (6.6 lbs)

Dimensions
Length: 183 mm



Warranty:

AQ3 3-year Warranty




with the Antec Phantom 500.
