Antec TruePower New Series 650W Power Supply

Power Supply

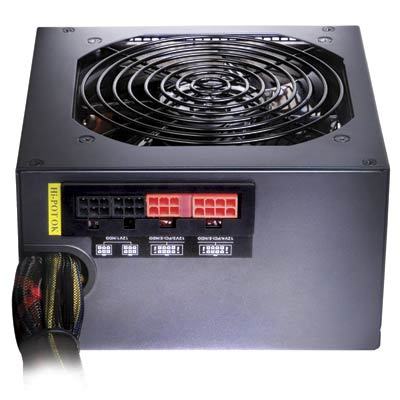

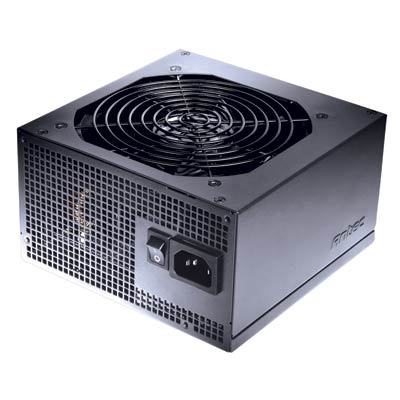

Antec TruePower New Series 650W Power Supply Picture 16666Antec TruePower New Series 650W Power Supply Picture 16667
Model: Antec TP-650

Specifications:
spacer
Maximum Power  650 W
Standard Compliance  ATX12V V2.3 / EPS12V V2.91
Peak Efficiency  80 %
Efficiency Certification  80 PLUS Bronze
Cooling System  Quiet 120mm Fan
Safety Compliance  UL, CUL, CE, CB, FCC Class B, TUV, CCC, C-tick, BSMI
Power Distribution
+3.3V rail  24.0 amps
+5V rail  25 amps
+12V1 rail  22 amps
+12V2 rail  22 amps
+12V3 rail  25 amps
+12V4 rail  25 amps
Combined +12V Maximum  54 amps
Connectors
Molex  9
SATA  9
Floppy  1
PCI Express  2
PCI Express 8-pin  2
CPU Power 4 pin  1
CPU Power 8 pin  1
Dimensions
Height  86 mm (3.4 in)
Width  150 mm (5.9 in)
Depth  150 mm (5.9 in)
Net Weight  2.3 kg (5.1 lbs)
Input
Voltage  100~240 Vac
Frequency  47~63 Hz


with the Antec TruePower New Series 650W Power Supply.
