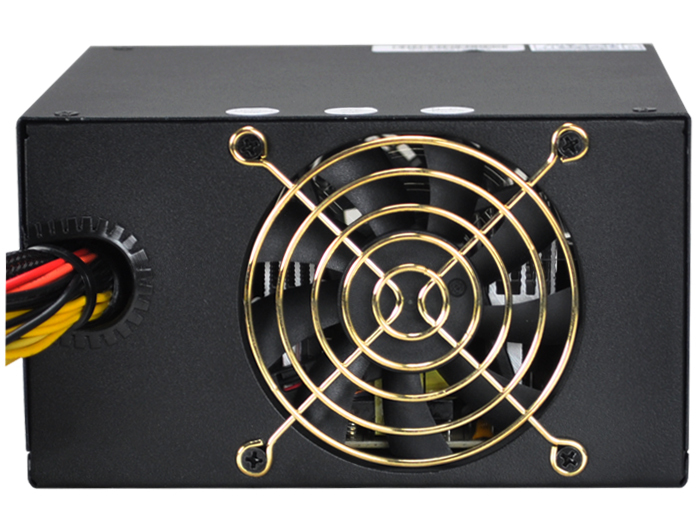

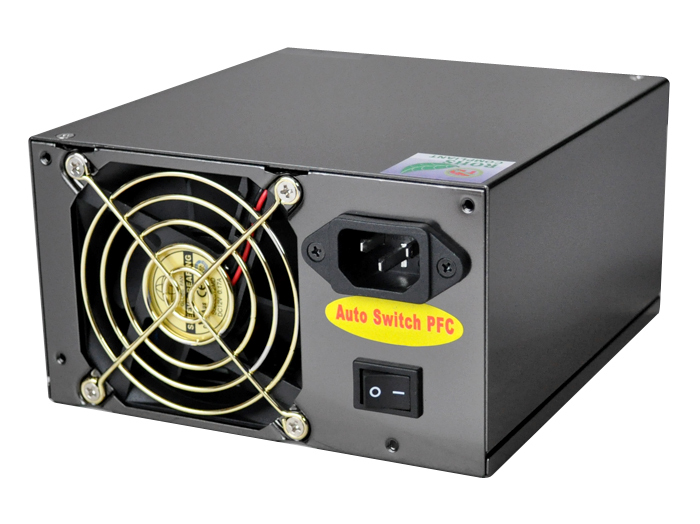

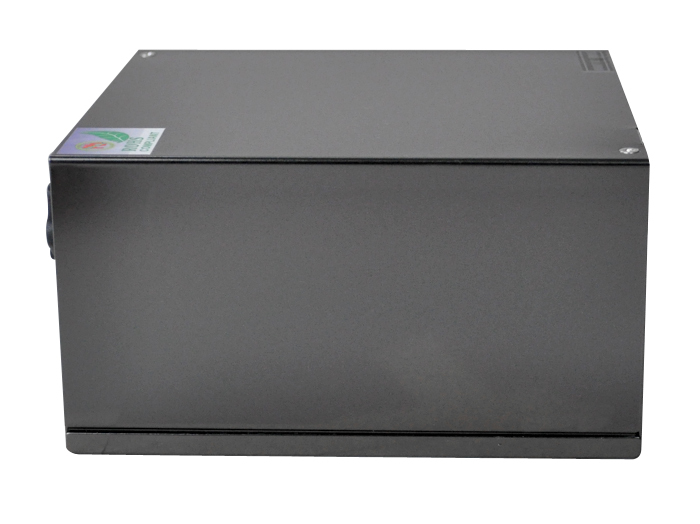

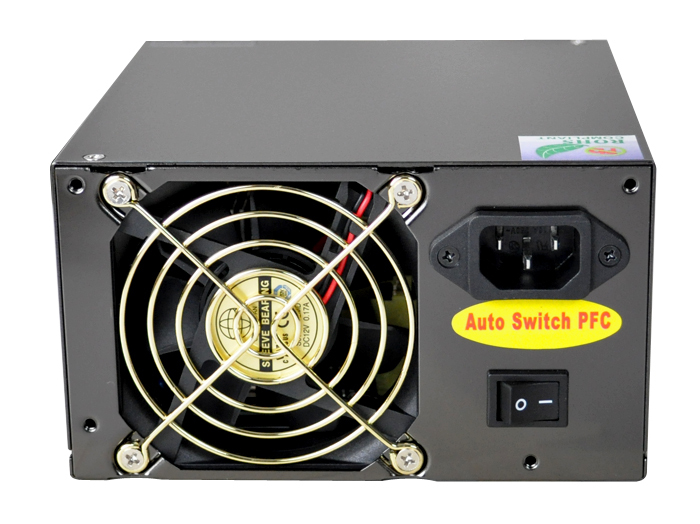

Athena AP-P4ATX60FEP8 600W Power Supply

Power Supply

Athena AP-P4ATX60FEP8 600W Power Supply Picture 62622Athena AP-P4ATX60FEP8 600W Power Supply Picture 62623Athena AP-P4ATX60FEP8 600W Power Supply Picture 62624Athena AP-P4ATX60FEP8 600W Power Supply Picture 62625
Unlike most of the power supplies we sell, this Athena unit does not have a side-mounted 120mm fan. The 80mm rear-mounted fan it uses instead is often necessary in low profile and rackmount cases, were there is no room for airflow to the sides or top/bottom of the power supply.

Model: Athena AP-P4ATX60FEP8

Specifications

Maximum Power 600 W
Cooling System 2x 80mm Fan
Power Distribution
+3.3V rail 18 amps
+5V rail 20 amps
+12V1 rail 24 amps
+12V2 rail 24 amps
Combined +12V Maximum 48 amps
Connectors
Molex 2
SATA 6
Floppy 1
PCI Express 2
PCI Express 8-pin 2
CPU Power 4 pin 1
CPU Power 8 pin 1
External Connector Type C13
Dimensions
Height 82 mm (3.2 in)
Width 146 mm (5.7 in)
Depth 158 mm (6.2 in)
Net Weight 2.65 kg (5.8 lbs)
Input
Voltage 88 -264 Vac
Frequency 47/63 Hz
