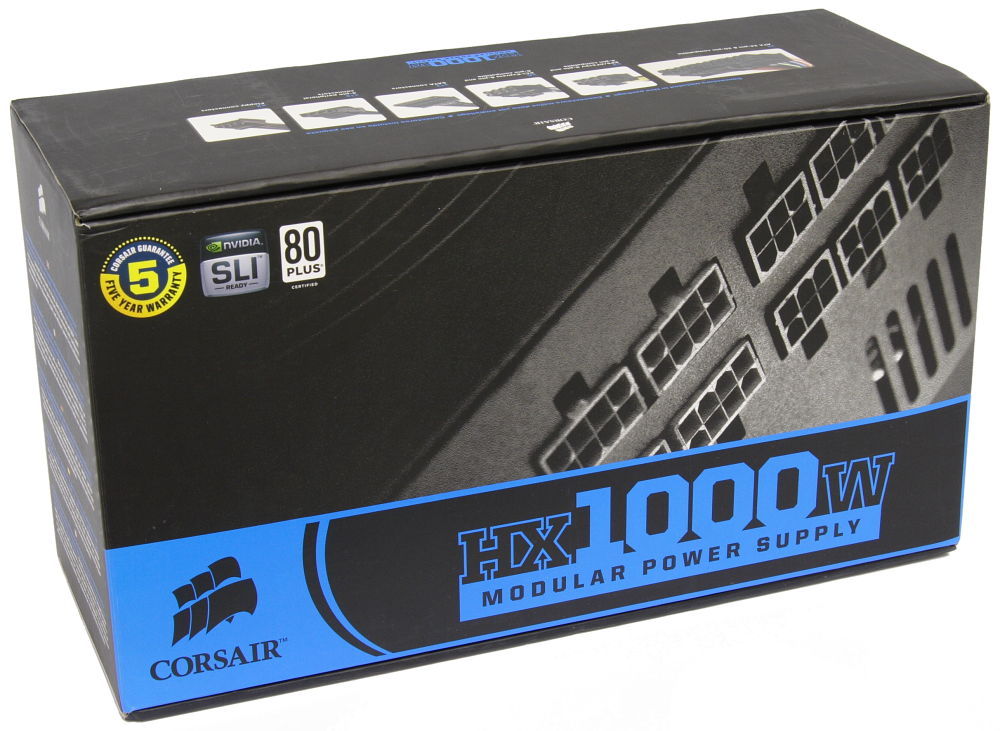

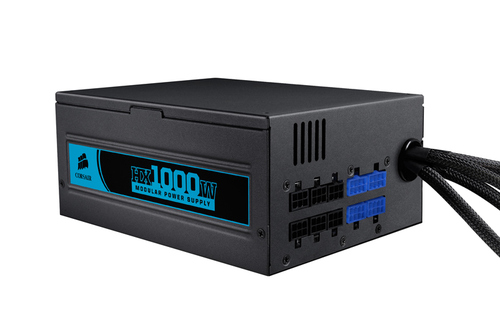

Model: Corsair CMPSU-1000HX
Specifications
| Maximum Power | 1000 W |
| Standard Compliance | ATX 12V v2.2 |
| Peak Efficiency | 80 % |
| Cooling System | Quiet 140mm Fan |
| Noise Level | 24 (idle), 44 (max) dB |
Power Distribution | |
| +3.3V rail | 30 amps |
| +5V rail | 30 amps |
| +12V1 rail | 40 amps |
| +12V2 rail | 40 amps |
| Combined +12V Maximum | 80 amps |
Connectors | |
| Molex | 10 |
| SATA | 10 |
| Floppy | 2 |
| PCIe 8-Pin | 6 |
| CPU Power 8 pin | 2 |
Dimensions | |
| Height | 86 mm (3.4 in) |
| Width | 150 mm (5.9 in) |
Features
- 80%+ energy efficiency at 20%, 50% and 100% load condition for less heat generation
- High quality Japanese capacitors provide uncompromised performance and reliability.
- MTBF: 100,000 Hours
Dimensions
Length: 200 mm
