Corsair HX 850W Power Supply

Power Supply

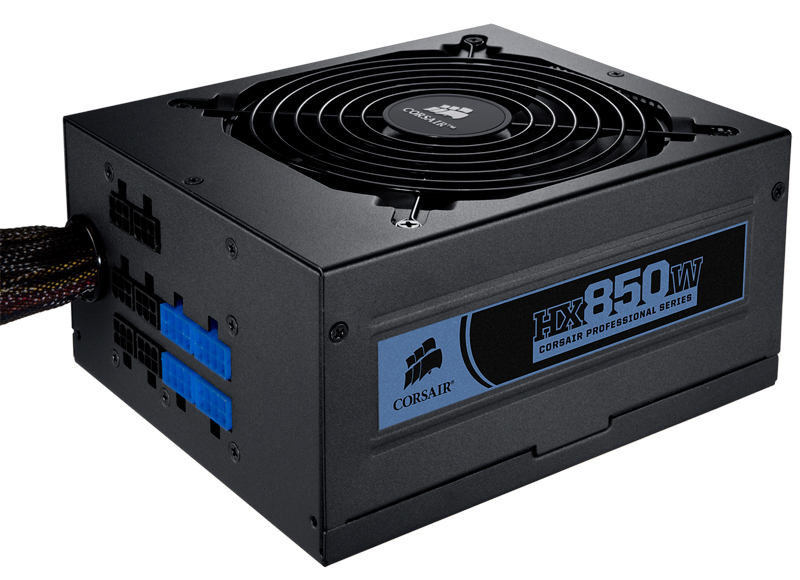

Corsair HX 850W Power Supply Picture 13587
Model: Corsair CMPSU-850HX

Specifications:
spacer
Maximum Power  850 W
Standard Compliance  ATX12v 2.3, EPS12V 2.91
Peak Efficiency  90 %
Cooling System  140mm Fan
Power Distribution
+3.3V rail  25 amps
+5V rail  25 amps
+12V1 rail  70 amps
Combined +12V Maximum  70 amps
Connectors
Molex  12
SATA  12
Floppy  2
PCI Express  6
CPU Power 8 pin  1
Dimensions
Height  86 mm (3.4 in)
Width  150 mm (5.9 in)
Depth  180 mm (7.1 in)
Net Weight  4.1 kg (9.0 lbs)
Input
Voltage  100-240 Vac
Frequency  50/60 Hz

80 PLUS SILVER Certified




with the Corsair HX 850W Power Supply.
