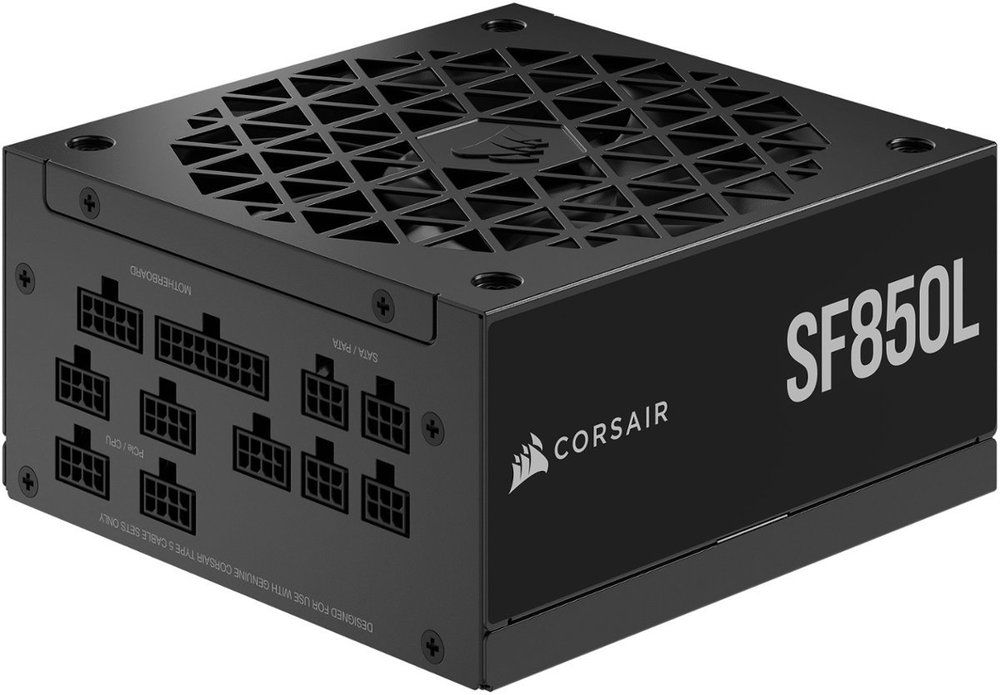

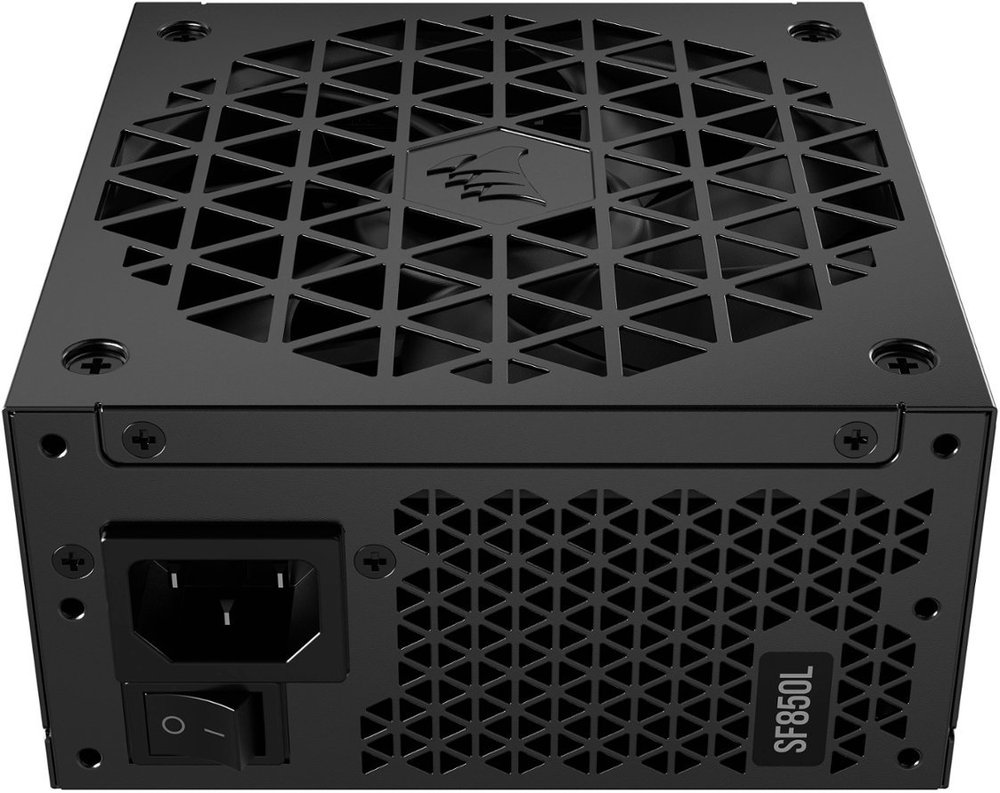

The Corsair SF850L power supply is a small form factor SFX-L power supply, ideally suited to use in many ITX cases as well as the optional secondary PSU position in our Silverstone RM51 rackmount chassis. It is very efficient, with an 80 PLUS Gold rating, and offers a lot of wattage capacity despite its compact size. The PCIe 5.0 standard is also supported, with one 16-pin connector cable included for powering the latest graphics cards. Cooling is handled by a 120mm fan which turns off entirely at low power loads.
Model: Corsair CP-9020245-NA
Specifications
| Maximum Power | 850 W |
| Efficiency Certification | 80 PLUS Gold |

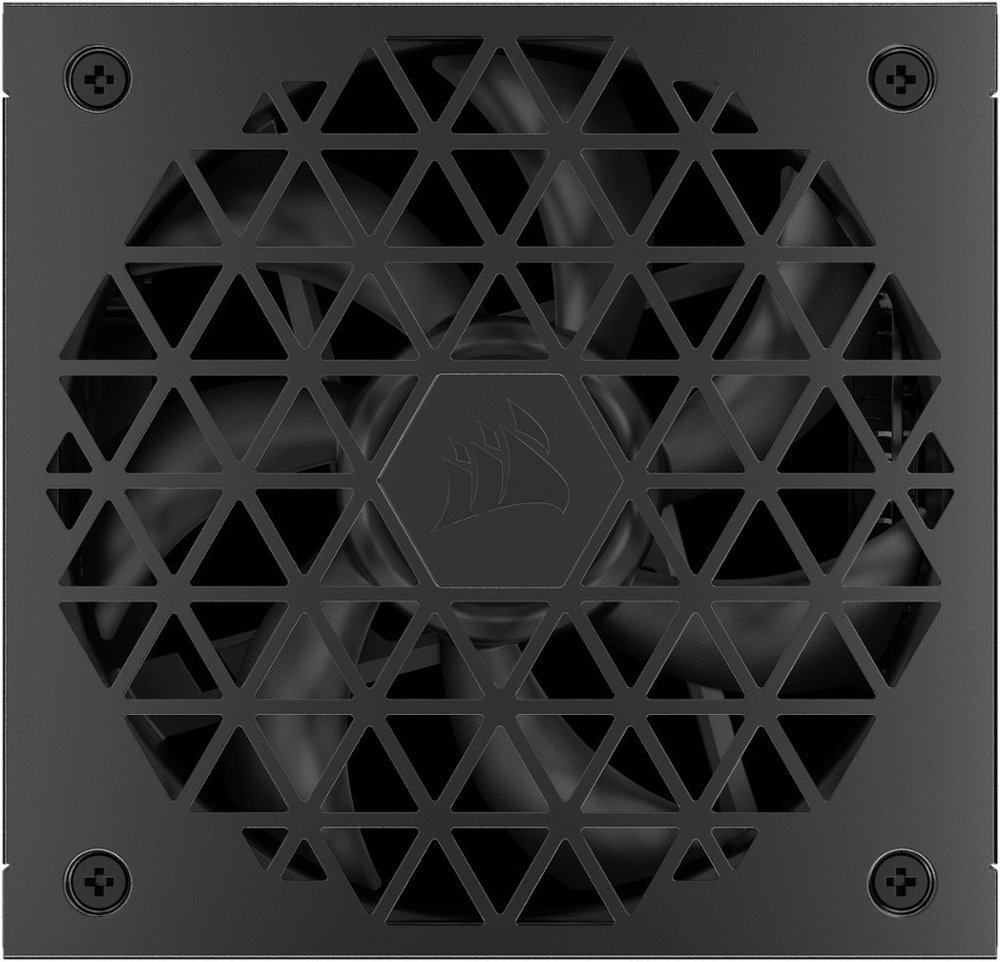

| Cooling System | Quiet 120mm Fan |
| Noise Level | 0-40 dB |
| Safety Compliance | OVP, UVP, OPP, SCP, OCP, OTP |
| Industry Compliance | ATX12V Version v2.4, EPS12V Version v2.92 |
| Form Factor | SFX |
Power Distribution | |
| +3.3V rail | 20 amps |
| +5V rail | 20 amps |
| +12V1 rail | 70.8 amps |

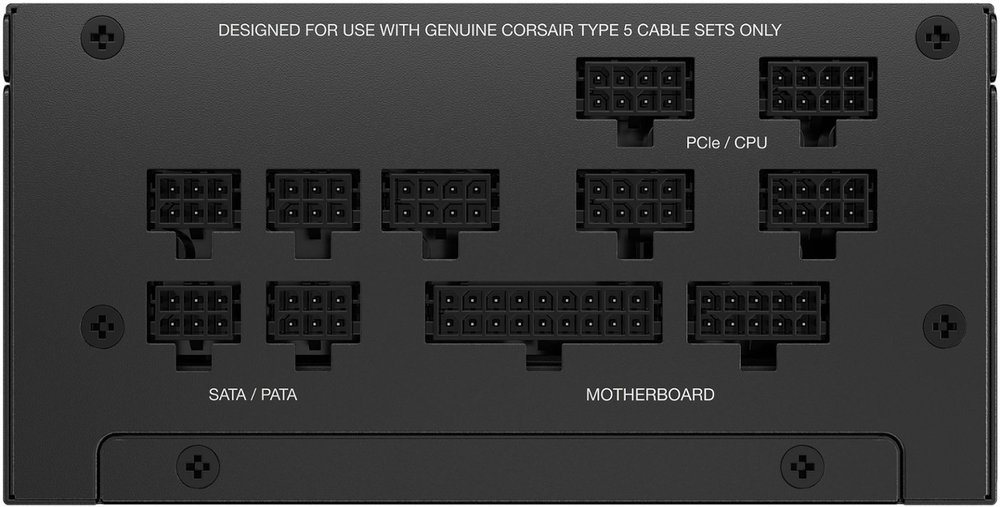

Connectors | |
| Molex | 3 |
| SATA | 8 |
| PCIe 8-Pin | 2 |
| 12V-2x6 | 1 |
| CPU Power 8/4 pin | 2 |

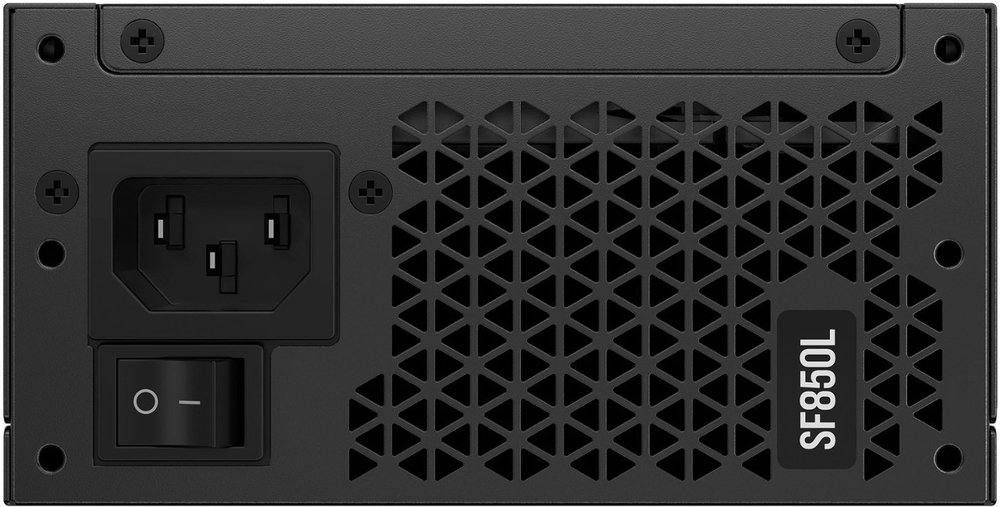

| External Connector Type | C13 |
Dimensions | |
| Height | 100 mm (3.9 in) |
| Width | 63 mm (2.5 in) |
| Depth | 130 mm (5.1 in) |
| Net Weight | .97 kg (2.1 lbs) |
Input | |
| Voltage | 100-240 Vac |
| Frequency | 47-63 Hz |
