EVGA SuperNOVA 1600W G+ Power Supply

Power Supply

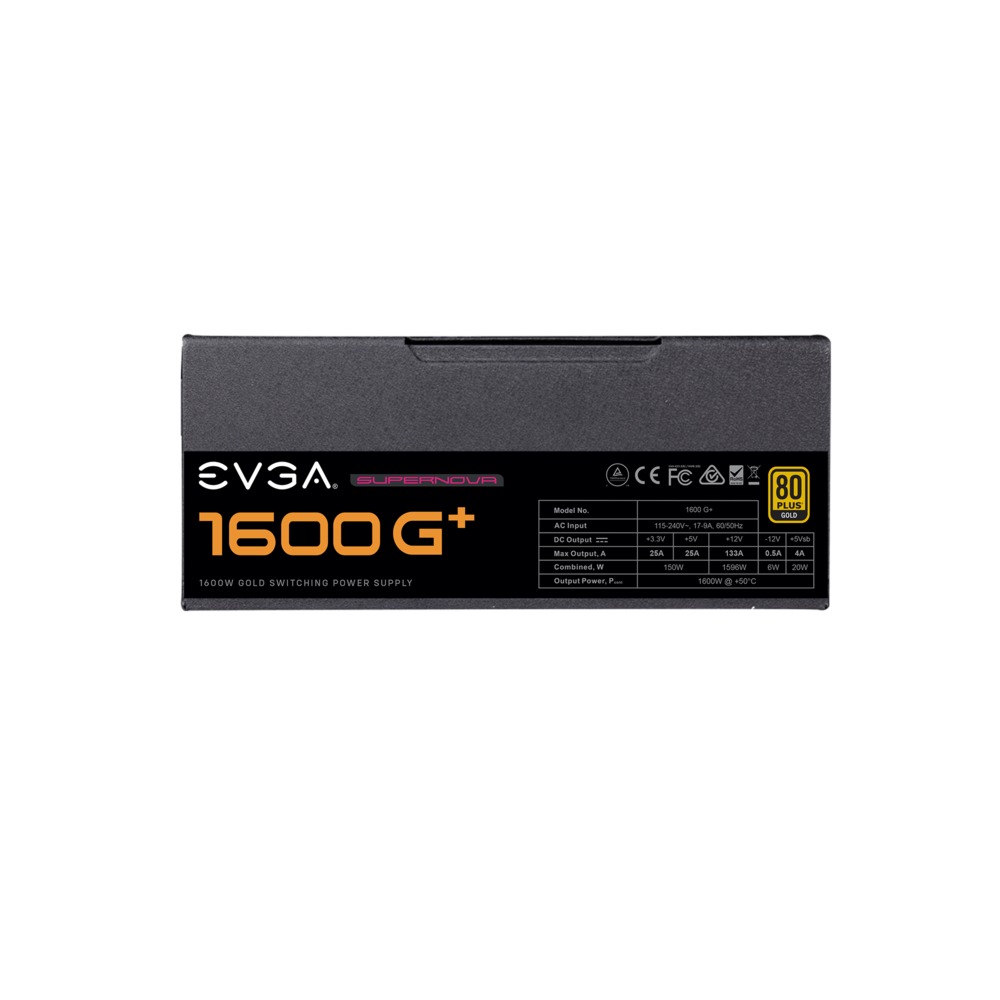

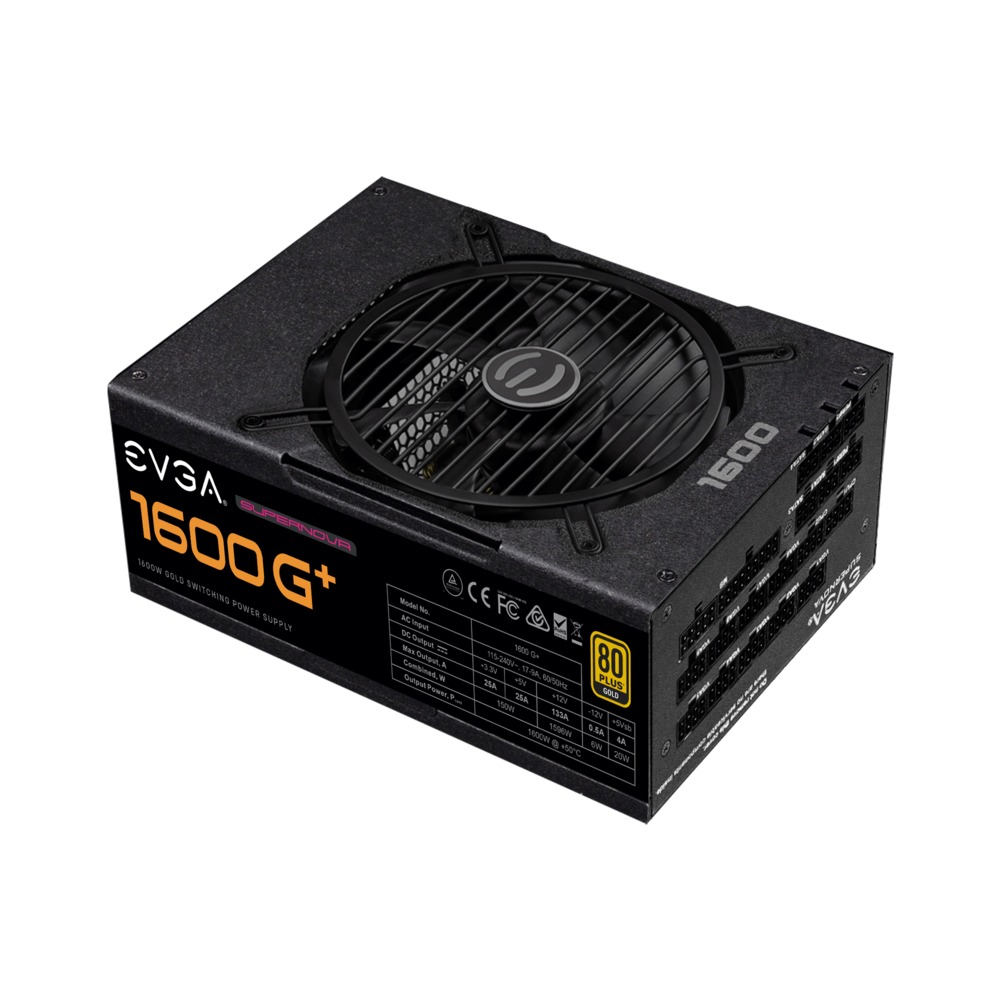

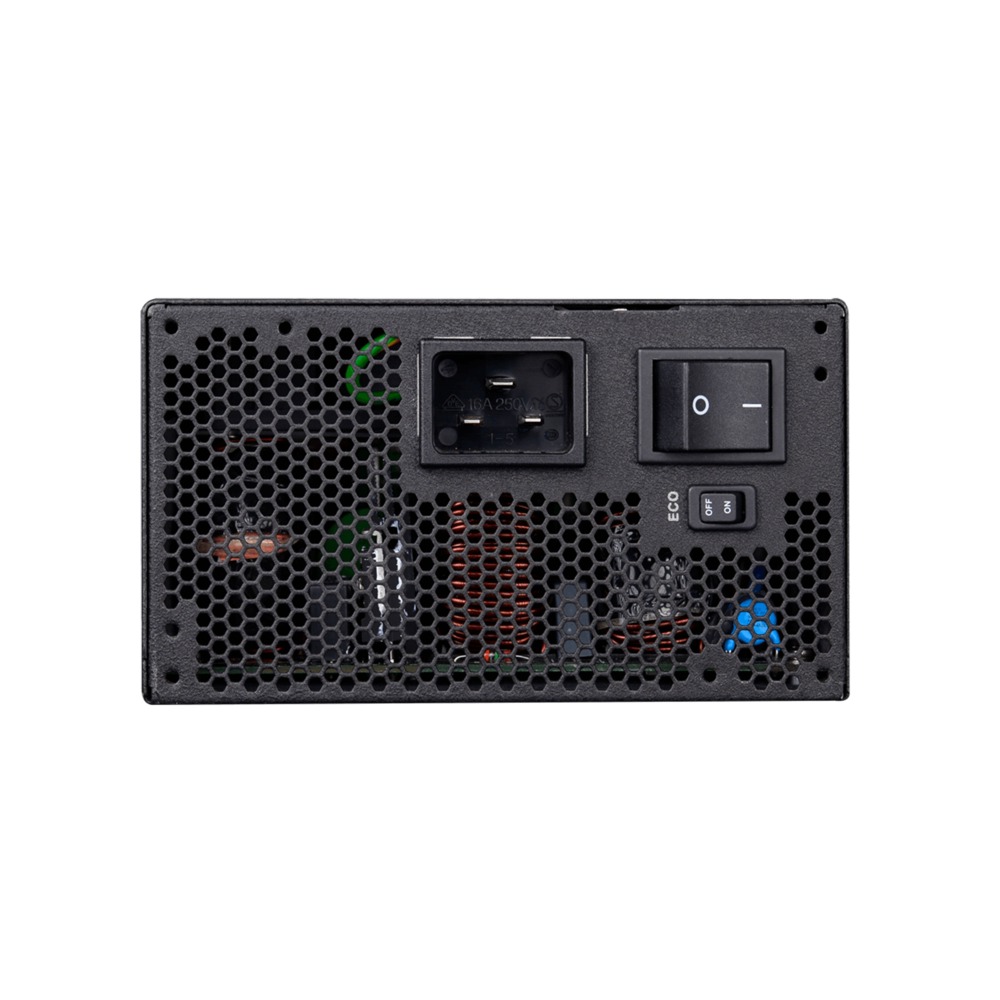

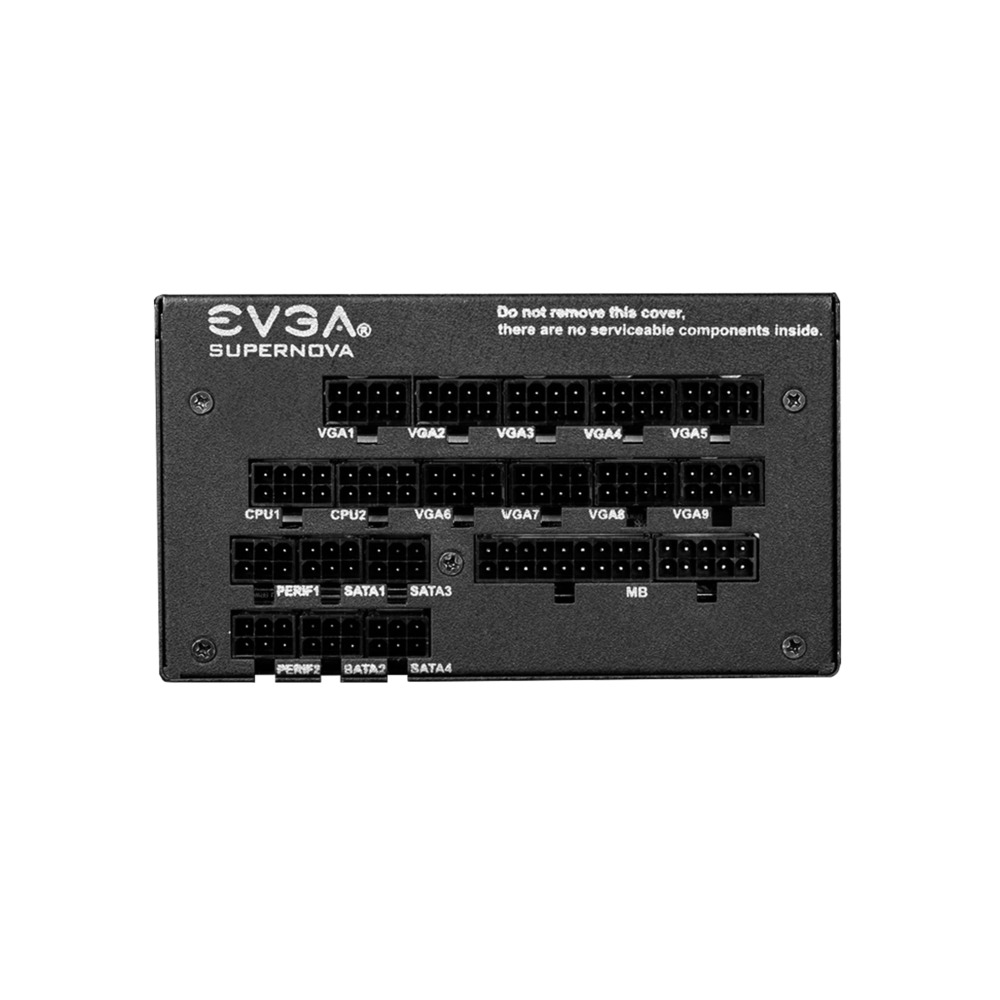

EVGA SuperNOVA 1600W G+ Power Supply Picture 68502EVGA SuperNOVA 1600W G+ Power Supply Picture 68503EVGA SuperNOVA 1600W G+ Power Supply Picture 68504EVGA SuperNOVA 1600W G+ Power Supply Picture 68505
The EVGA SuperNOVA 1600W G+ is a large, 80 PLUS Gold-certified power supply unit. As befits a high-end PSU, it has completely modular wiring and a fan that only turns on under moderate to heavy load - so it is almost silent at idle / low load levels. However, when the fan does come on this particular model is a bit noisy.

Model: EVGA 220-GP-1600-X1

Specifications

Maximum Power 1600 W
Standard Compliance TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
Peak Efficiency 90 %
Efficiency Certification 80 PLUS Gold
Cooling System Quiet 140mm Fan
Safety Compliance OVP, UVP, OCP, OPP, SCP
Materials Compliance WEEE, RoHS
Power Distribution
+3.3V rail 25 amps
+5V rail 25 amps
+12V1 rail 133 amps
Combined +12V Maximum 133 amps
Connectors
Molex 8
SATA 14
Floppy 2
PCI Express 5
PCI Express 8-pin 9
CPU Power 8/4 pin 2
External Connector Type C19
Dimensions
Height 86 mm (3.4 in)
Width 150 mm (5.9 in)
Depth 200 mm (7.9 in)
Net Weight 4.5 kg (9.9 lbs)
Input
Voltage 100-240 Vac
Frequency 50/60 Hz
