EVGA SuperNOVA 850W T2 Power Supply

Power Supply

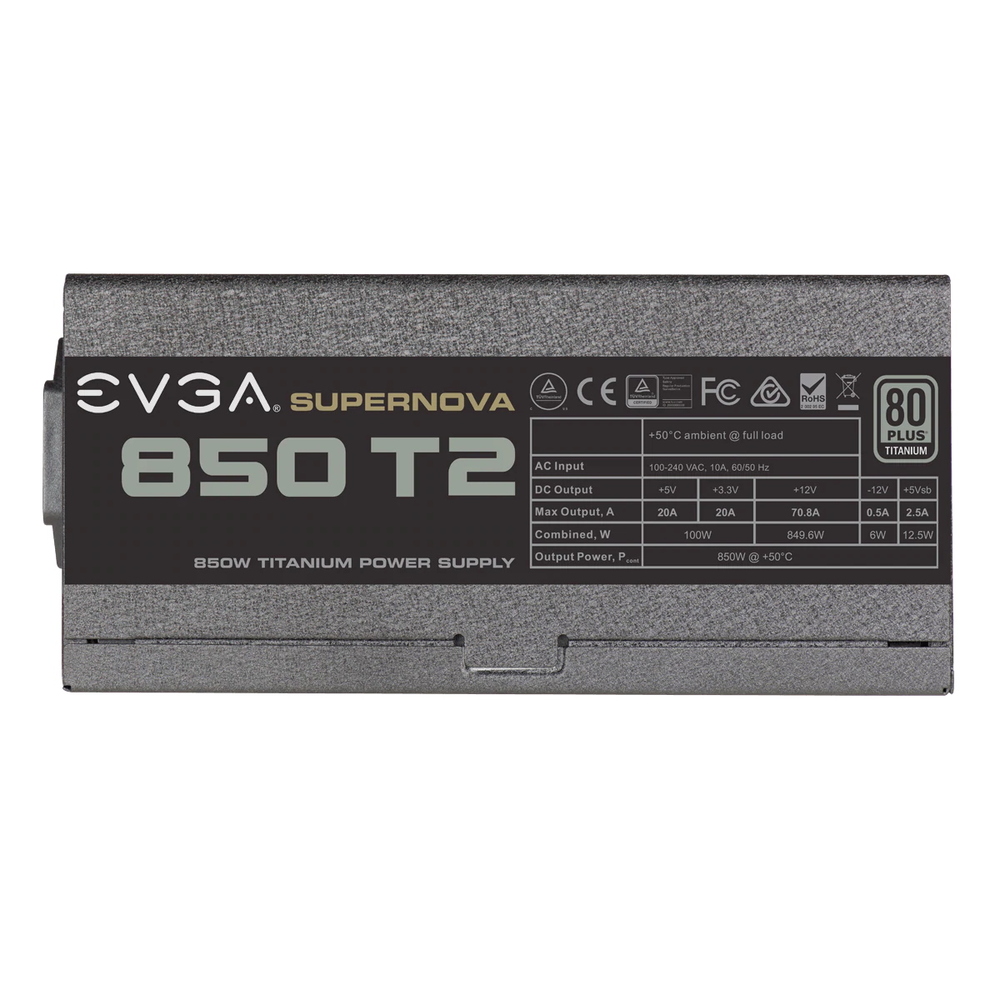

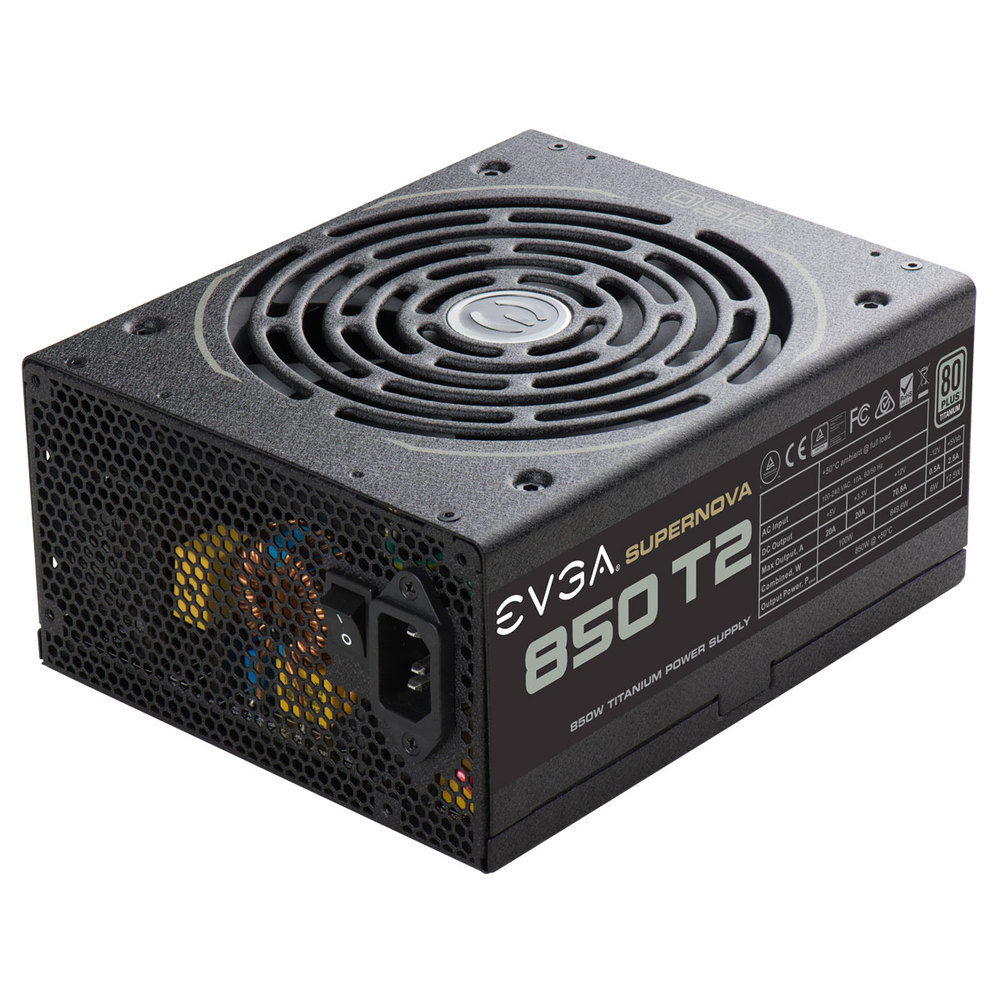

EVGA SuperNOVA 850W T2 Power Supply Main Picture


EVGA SuperNOVA 850W T2 Power Supply Picture 64276EVGA SuperNOVA 850W T2 Power Supply Picture 64278EVGA SuperNOVA 850W T2 Power Supply Picture 64279
The EVGA SuperNOVA 850W is a full-featured, 80 PLUS Titanium-certified power supply unit - complete with entirely modular wiring for clean assembly and a 140mm fan for cooling. Its ECO fan mode turns the fan off entirely at low power draw levels, and even when it spins up the fan remains relatively quiet.

Model: EVGA 220-T2-0850

Specifications

Maximum Power 850 W
Standard Compliance TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
Peak Efficiency 92 %
Efficiency Certification 80 PLUS Titanium
Cooling System 140mm Fan
Noise Level 0-32 dB
Safety Compliance TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
Power Distribution
+3.3V rail 20 amps
+5V rail 20 amps
+12V1 rail 70.8 amps

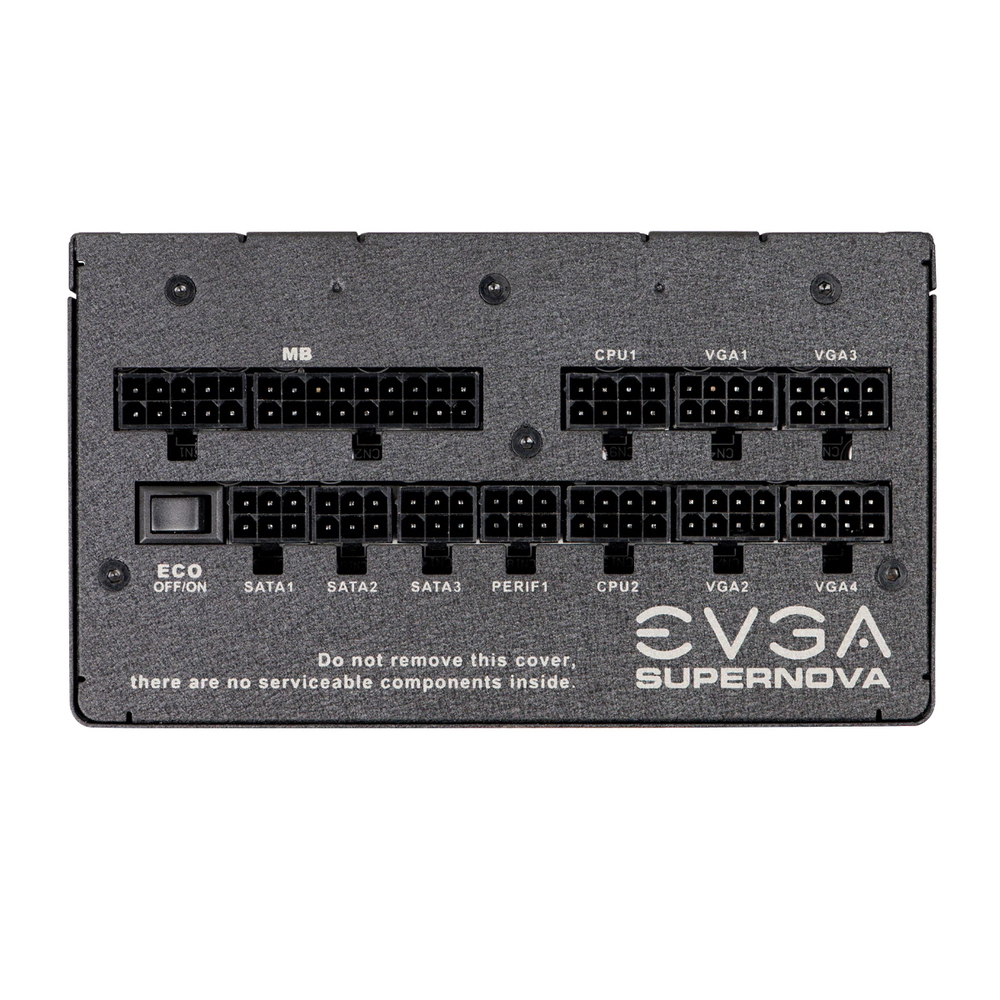

Connectors
Molex 4
SATA 10
Floppy 1
PCI Express 2
PCI Express 8-pin 4
CPU Power 8/4 pin 2

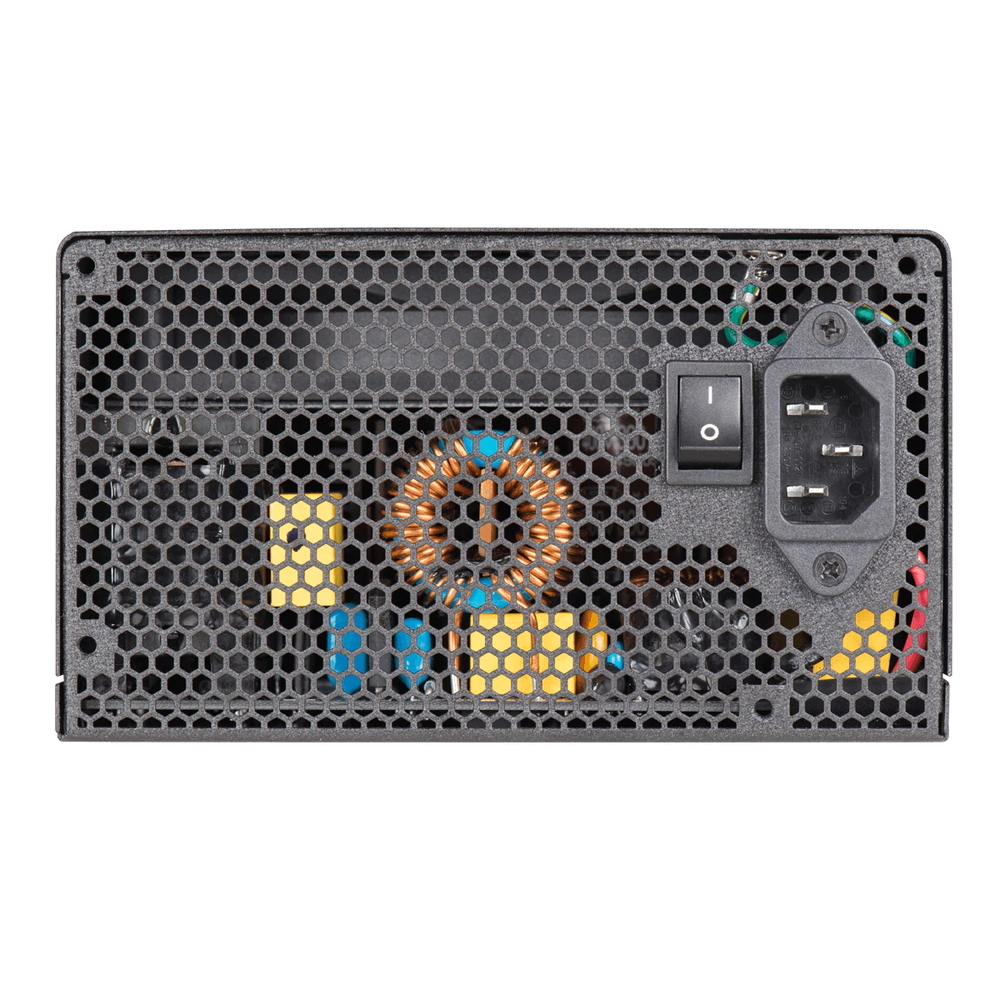

External Connector Type C13
Dimensions
Height 85 mm (3.3 in)
Width 150 mm (5.9 in)
Depth 180 mm (7.1 in)
Net Weight 3.6 kg (7.9 lbs)
Input
Voltage 100-240 Vac
Frequency 50/60 Hz
