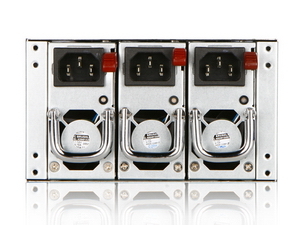

Redundant power supplies are highly recommended for computers where downtime must be avoided at all costs - servers being the primary systems with such needs. Three independent power supplies are housed within this unit, each needing its own AC power connection; in this way, though, a failure of a single power supply or cable does not interrupt operation of the computer.
This 950W supply is ideal for high-end servers, particularly those with multiple CPUs. There is also a 500W model available for less demanding systems.
This 950W supply is ideal for high-end servers, particularly those with multiple CPUs. There is also a 500W model available for less demanding systems.

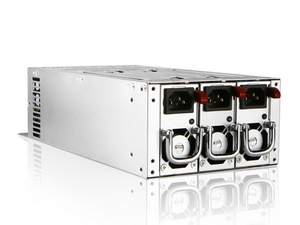

Model: I-Star IS-950R3NPD8
Specifications
| Maximum Power | 950 W |
| Peak Efficiency | 80 % |
| Cooling System | 3x1 40mm Fans |
Power Distribution | |
| +3.3V rail | 30 amps |
| +5V rail | 40 amps |
| +12V1 rail | 68 amps |
| Combined +12V Maximum | 68 amps |
Connectors | |
| Molex | 10 |
| Floppy | 2 |
| CPU Power 8 pin | 2 |
Dimensions | |
| Height | 86.1 mm (3.4 in) |
| Width | 150.1 mm (5.9 in) |
| Depth | 290.1 mm (11.4 in) |
Input | |
| Voltage | 100-240 Vac |
| Frequency | 47-63 Hz |
