In Win 500W 1U Power Supply

Power Supply

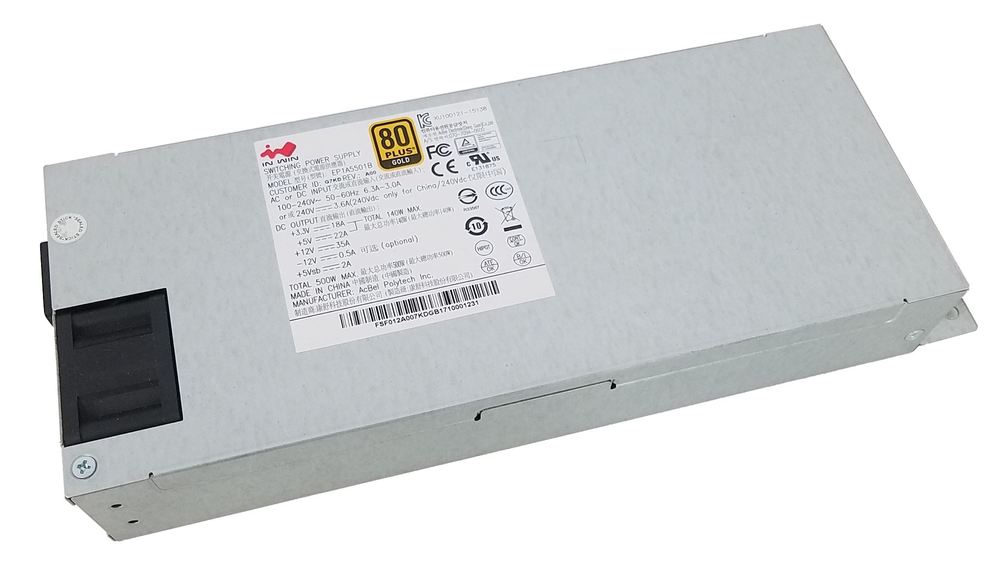

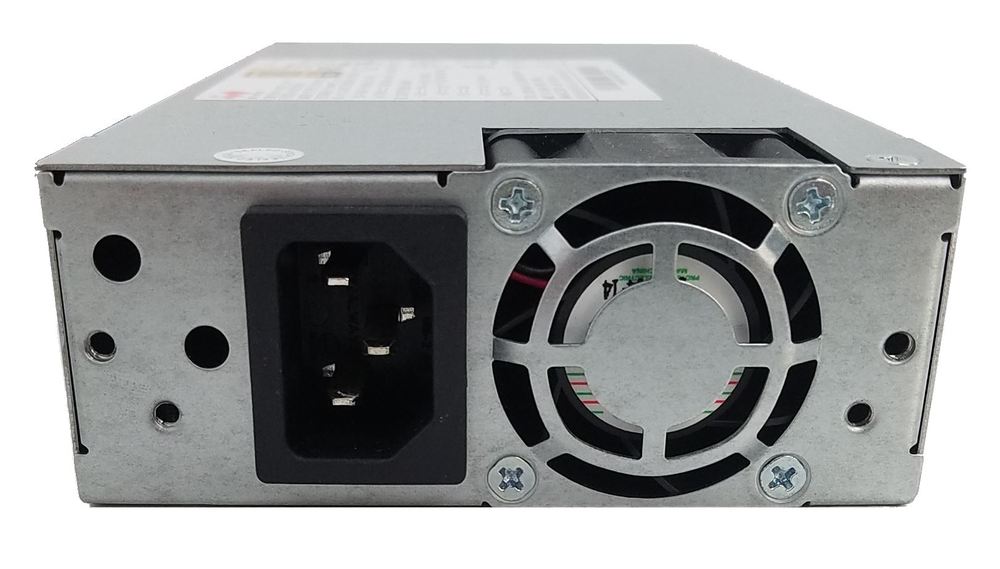

In Win 500W 1U Power Supply Picture 48265In Win 500W 1U Power Supply Picture 48266In Win 500W 1U Power Supply Picture 48267
This 500W supply is specially sized for In Win 1U rackmount cases, and provides wattage ideally suited for single-CPU or low power dual-CPU servers.

Model: InWin PSU-S500AC1U

Specifications

Maximum Power 500 W
Peak Efficiency 90 %
Efficiency Certification 80 PLUS Gold
Cooling System 40mm Fan
Noise Level 65.5 dB
Safety Compliance UL, TUV, CB, BSMI, CCC, FCC, KC

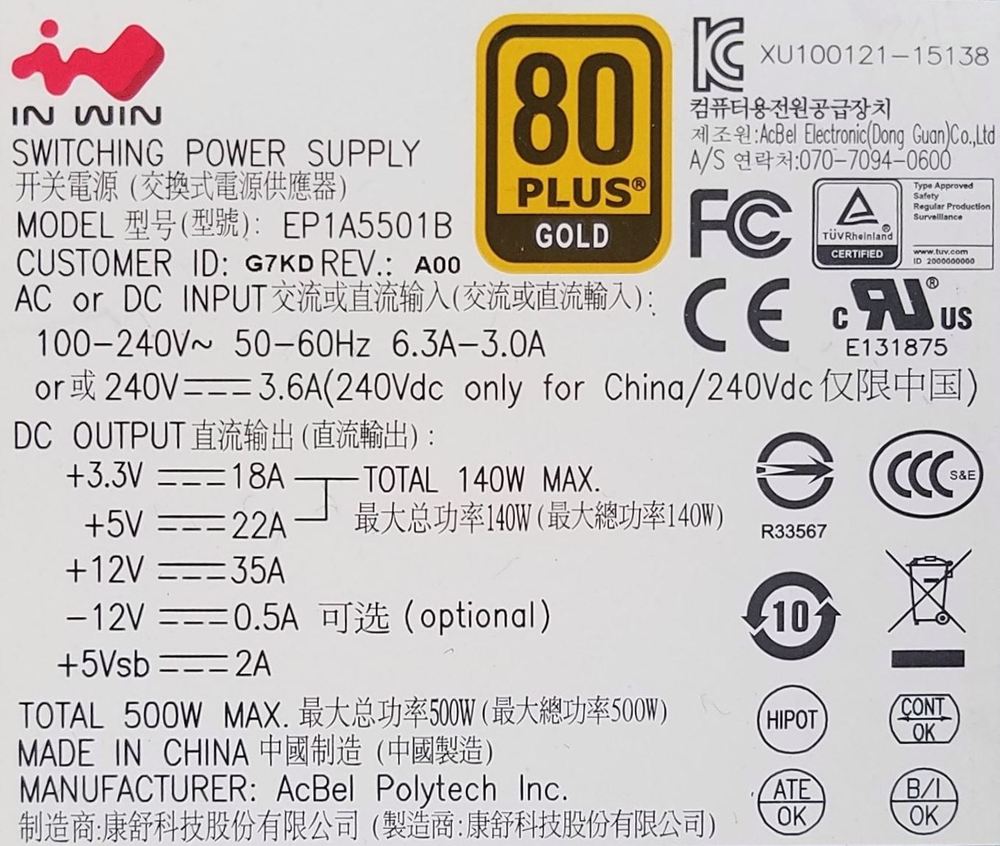

Power Distribution
+3.3V rail 18 amps
+5V rail 22 amps
+12V1 rail 35 amps
Connectors
Molex 9
SATA 3
CPU Power 8 pin 1
CPU Power 8/4 pin 1
External Connector Type C13
Dimensions
Height 40 mm (1.6 in)
Width 100 mm (3.9 in)
Depth 240 mm (9.4 in)
Net Weight 2.65 kg (5.8 lbs)
Input
Voltage 100-240 Vac
Frequency 50/60 Hz
