Seasonic X-560 560W Power Supply

Power Supply

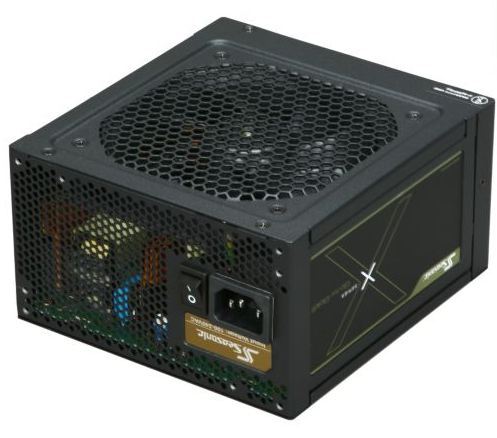

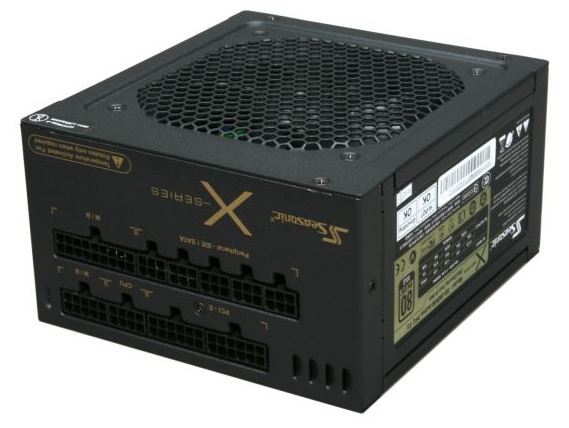

Seasonic X-560 560W Power Supply Picture 16167Seasonic X-560 560W Power Supply Picture 16168
Model: SeaSonic SS-560KM Active PFC F3

Specifications:
spacer
Maximum Power  560 W
Peak Efficiency  80 %
Efficiency Certification  80 PLUS Gold
Cooling System  Quiet 120mm Fan
Noise Level  0-20 dB
Power Distribution
+3.3V rail  25 amps
+5V rail  25 amps
+12V1 rail  46 amps
Connectors
Molex  5
SATA  8
PCI Express 8-pin  2
CPU Power 8 pin  1
Dimensions
Height  86 mm (3.4 in)
Width  150 mm (5.9 in)
Depth  160 mm (6.3 in)
Input
Voltage  100-240 Vac
Frequency  50/60 Hz


with the Seasonic X-560 560W Power Supply.
