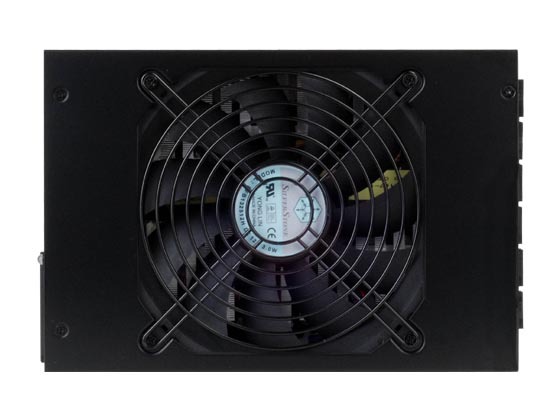

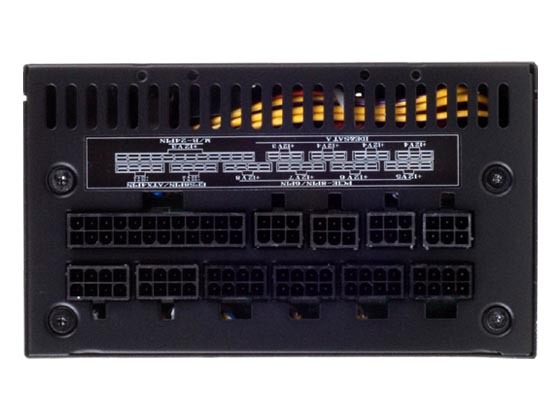

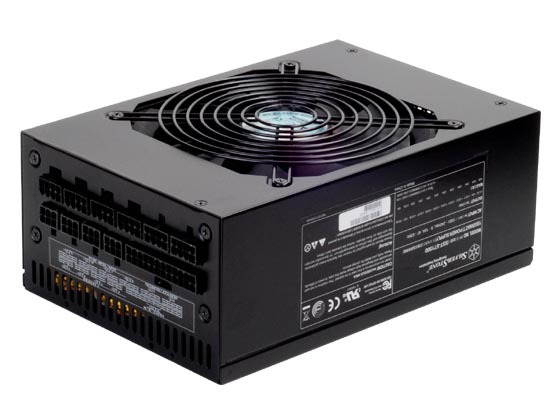

Silverstone ST1500 1500W Power Supply

Power Supply

Silverstone ST1500 1500W Power Supply Picture 14602Silverstone ST1500 1500W Power Supply Picture 14603Silverstone ST1500 1500W Power Supply Picture 14604Silverstone ST1500 1500W Power Supply Picture 14605
Model: Silverstone SST-ST1500

Specifications:
spacer
Maximum Power  1500W W
Standard Compliance  ATX 12V v2.2
Peak Efficiency  88 %
Efficiency Certification  80 PLUS Silver
Cooling System  135mm Fan
Noise Level  19-34 dB
Power Distribution
+3.3V rail  40 amps
+5V rail  40 amps
+12V1 rail  25 amps
+12V2 rail  25 amps
+12V3 rail  25 amps
+12V4 rail  25 amps
+12V5 rail  25 amps
+12V6 rail  25 amps
+12V7 rail  25 amps
+12V8 rail  25 amps
Combined +12V Maximum  110 amps
Connectors
Molex  12
SATA  12
Floppy  4
PCI Express  4
PCI Express 8-pin  4
CPU Power 8 pin  2
Dimensions
Height  86 mm (3.4 in)
Width  150 mm (5.9 in)
Depth  220 mm (8.7 in)
Net Weight  4.2 kg (9.3 lbs)
Input
Voltage  90~264 Vac
Frequency  47~63 Hz
