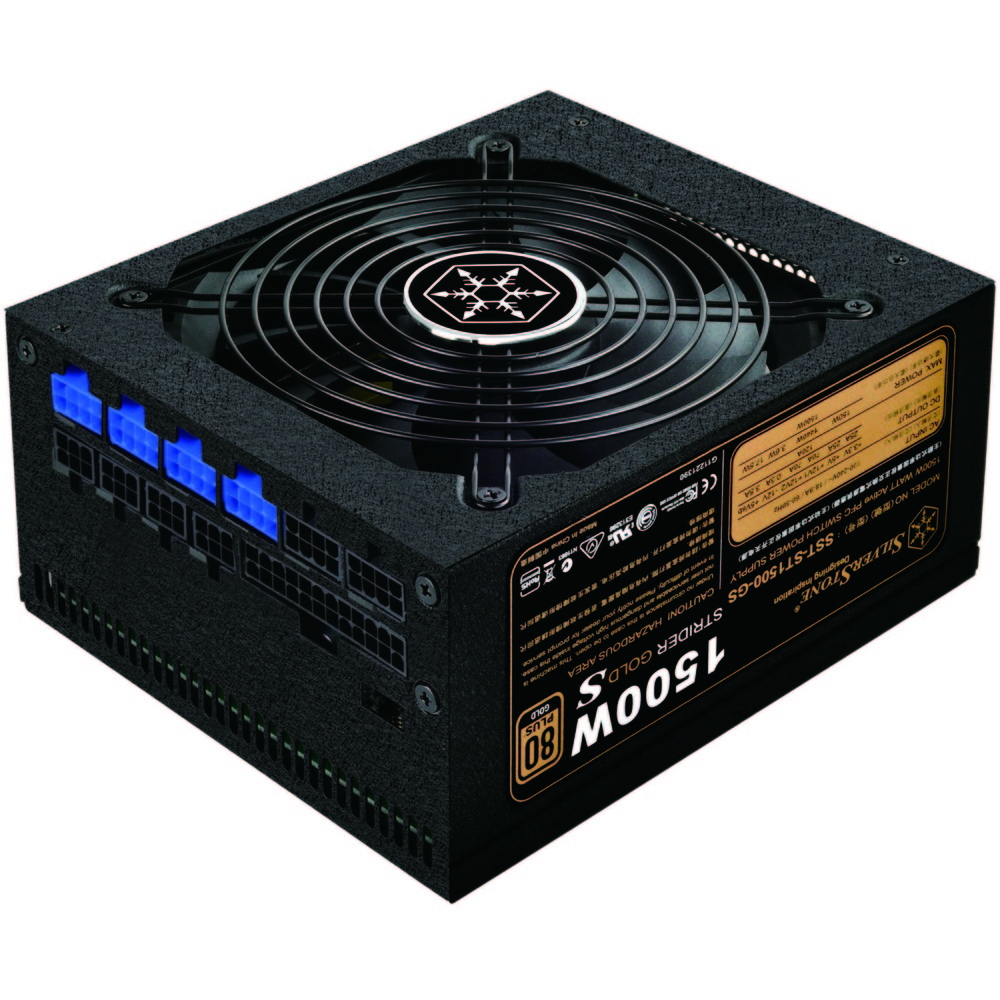

The ST1500-GS is an 80 PLUS Gold-certified power supply unit from Silverstone, rated for 1500W. It has fully modular cabling, 90% peak efficiency, a single 12-volt rail, and a 135mm fan for cooling. Despite its high wattage rating, the ST1500-TI is only 180mm deep - shorter than many power supplies that are rated for only 1000-1200W. The cooling fan is also adaptive, based on energy load, and turns off entirely below about 15% usage.
Model: Silverstone ST1500-GS
Specifications
| Maximum Power | 1600 W |
| Standard Compliance | ATX 12V v2.4 |
| Peak Efficiency | 90 % |
| Efficiency Certification | 80 PLUS Gold |

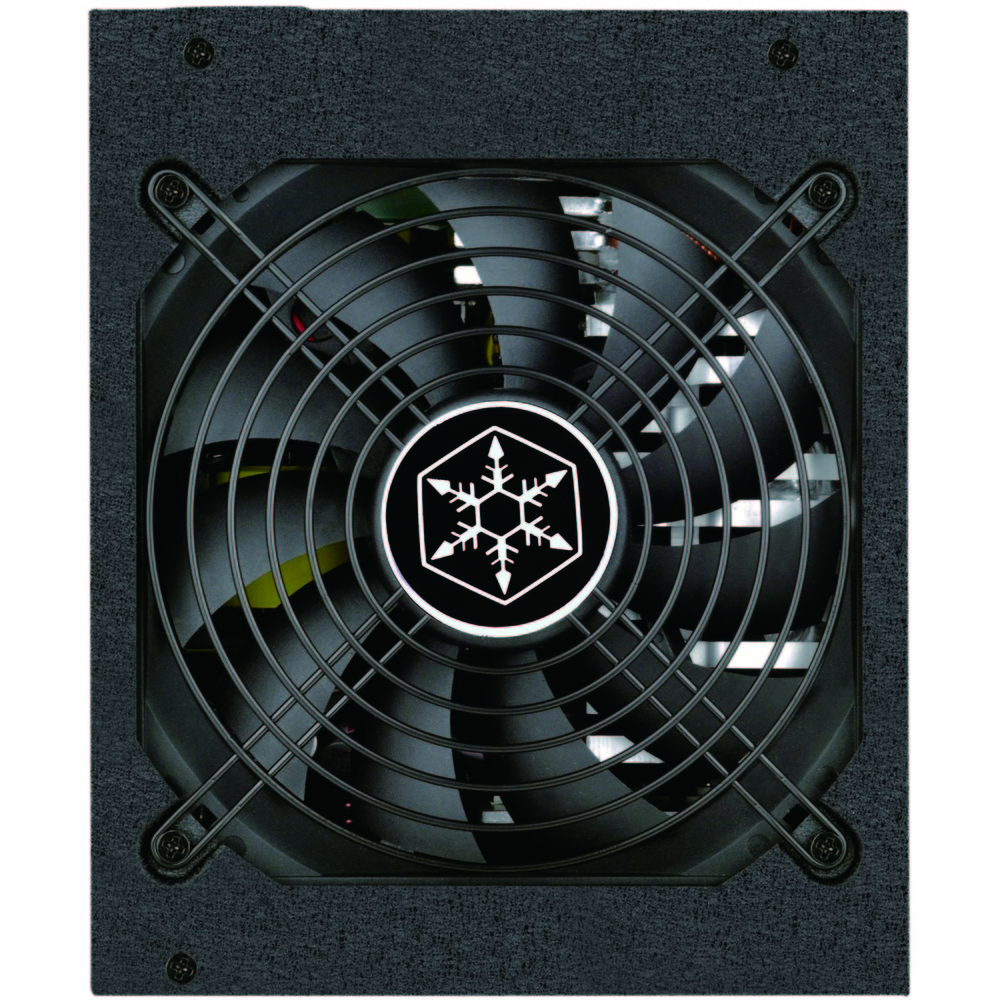

| Cooling System | 135mm Fan |
| Noise Level | 18-34 dB |
Power Distribution | |
| +3.3V rail | 25 amps |
| +5V rail | 25 amps |
| +12V1 rail | 70 amps |
| +12V2 rail | 70 amps |

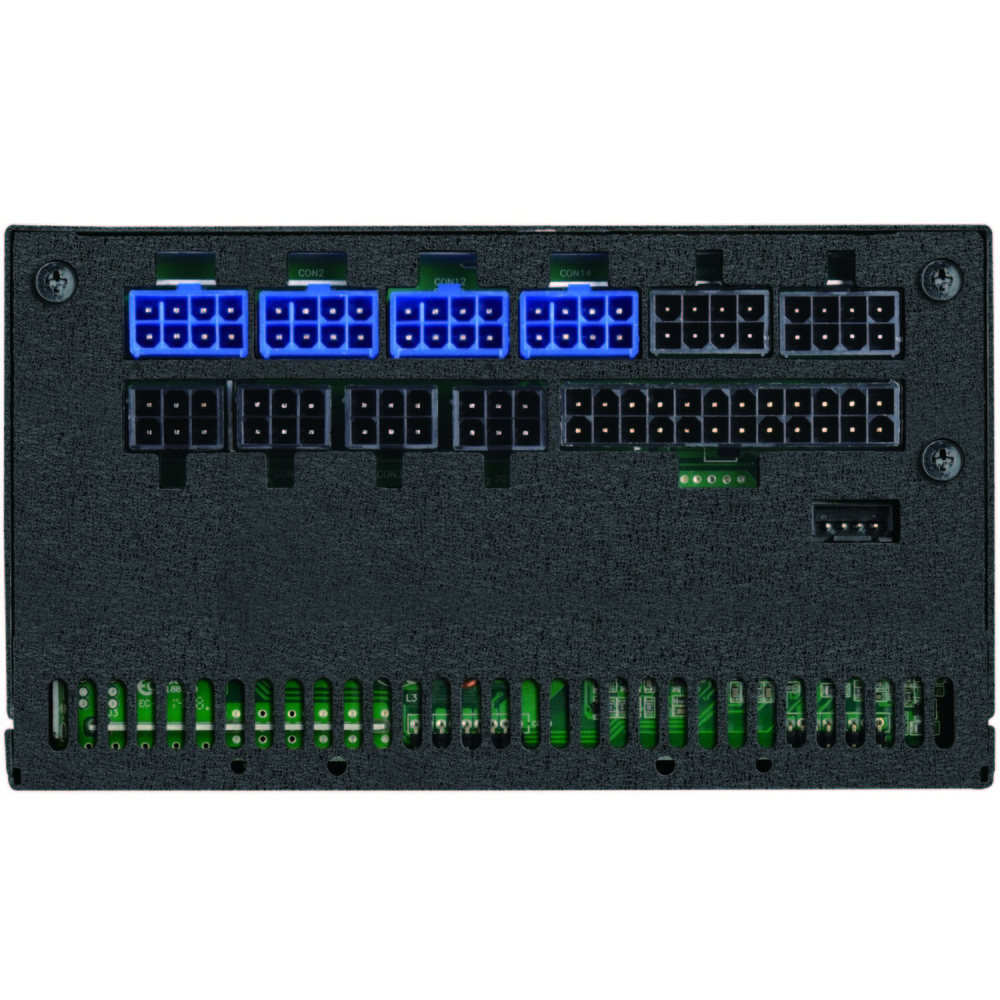

Connectors | |
| Molex | 6 |
| SATA | 16 |
| Floppy | 2 |
| PCIe 6-Pin | 8 |
| CPU Power 8/4 pin | 2 |

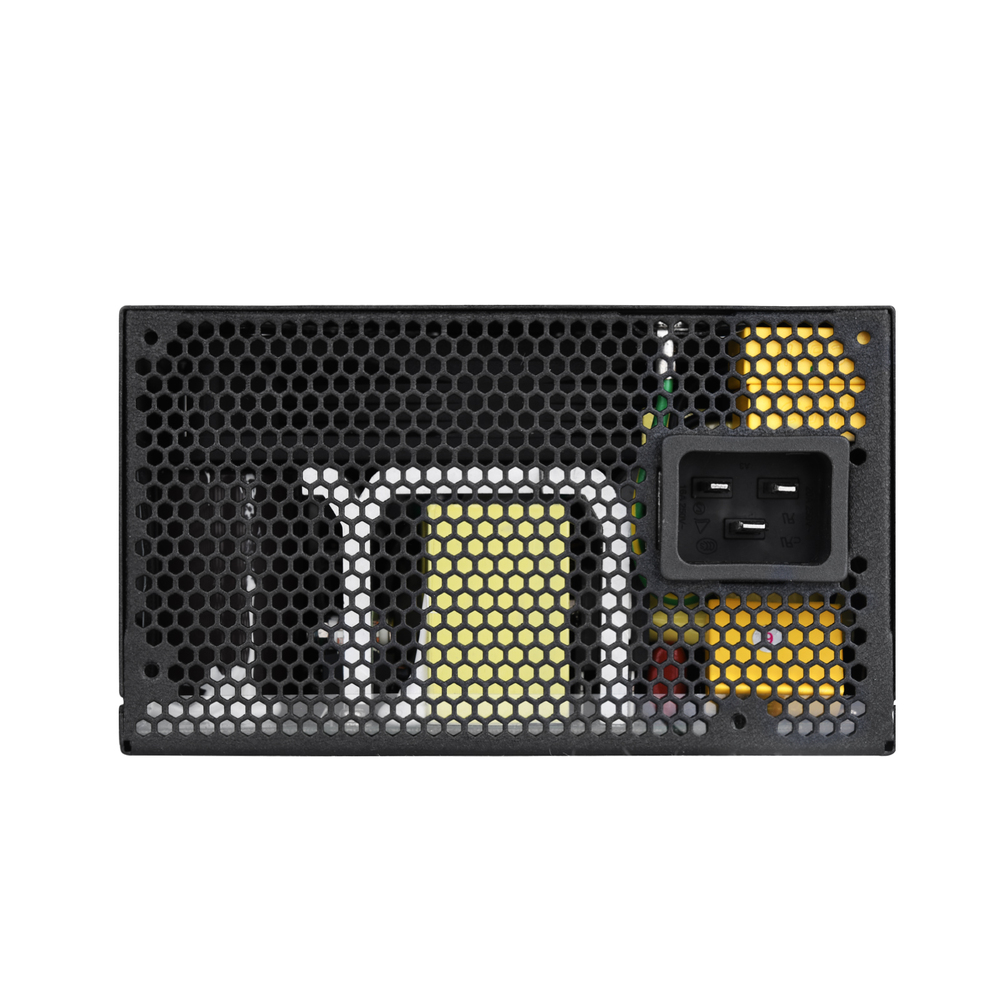

| External Connector Type | C19 |
Dimensions | |
| Height | 86 mm (3.4 in) |
| Width | 150 mm (5.9 in) |
| Depth | 180 mm (7.1 in) |
| Net Weight | 3.20 kg (7.1 lbs) |
Input | |
| Voltage | 90~264 Vac |
| Frequency | 47~63 Hz |
