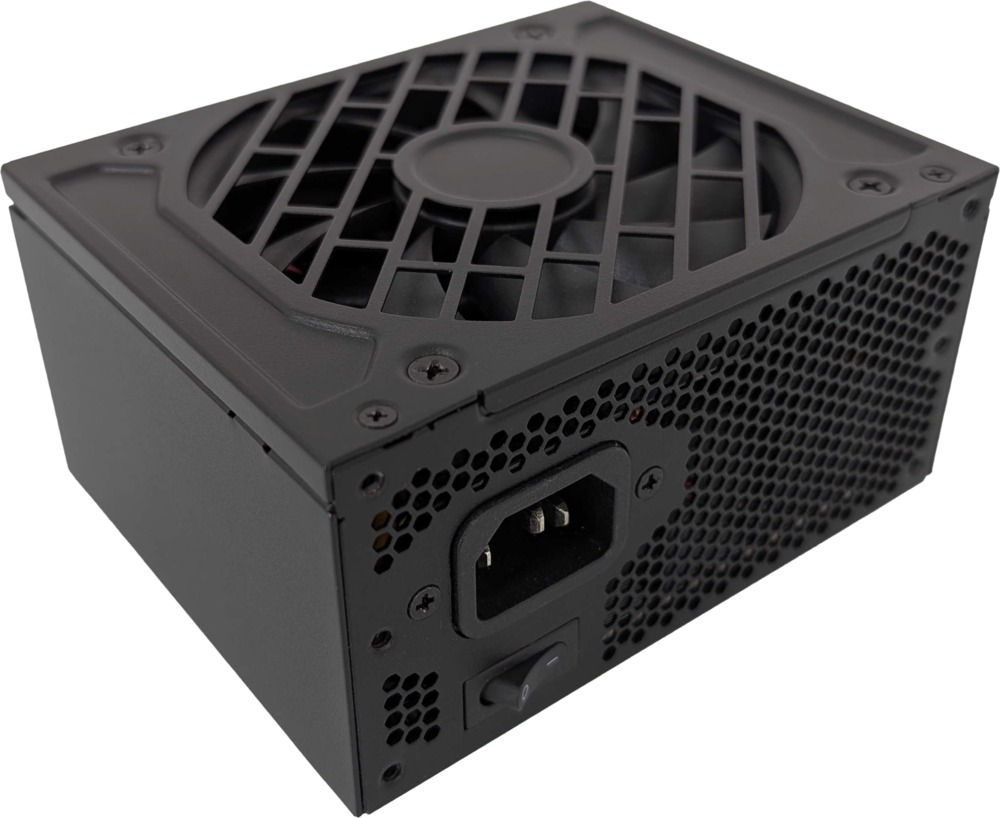

This Super Flower 1000W SFX is a fully modular, small form factor power supply, ideally suited to use in many ITX cases as well as the optional secondary PSU position in our RM51 rackmount chassis. It is very efficient, with an 80 PLUS Platinum rating, and offers a lot of wattage capacity despite its compact size. The PCIe 5.0 standard is also supported, with one 16-pin connector cable included for powering the latest graphics cards. Cooling is handled by a 92mm fan which turns off entirely at low power loads.
Model: Super Flower SF-1000C92SFP
Specifications
| Maximum Power | 1000 W |
| Peak Efficiency | 92 % |
| Efficiency Certification | 80 PLUS Platinum |
| Cooling System | 92mm Fan |
| Form Factor | SFX |
Power Distribution | |
| +3.3V rail | 20 amps |
| +5V rail | 20 amps |
| Combined +12V Maximum | 83.3 amps |
Connectors | |
| SATA | 8 |
| PCIe 8-Pin | 2 |
| 12V-2x6 | 1 |
| CPU Power 8/4 pin | 2 |
| External Connector Type | C13 |
Dimensions | |
| Height | 63.5 mm (2.5 in) |
| Width | 125 mm (4.9 in) |
| Depth | 100 mm (3.9 in) |
| Net Weight | 1.325 kg (2.9 lbs) |
