Super Flower LEADEX Platinum 1200W

Power Supply

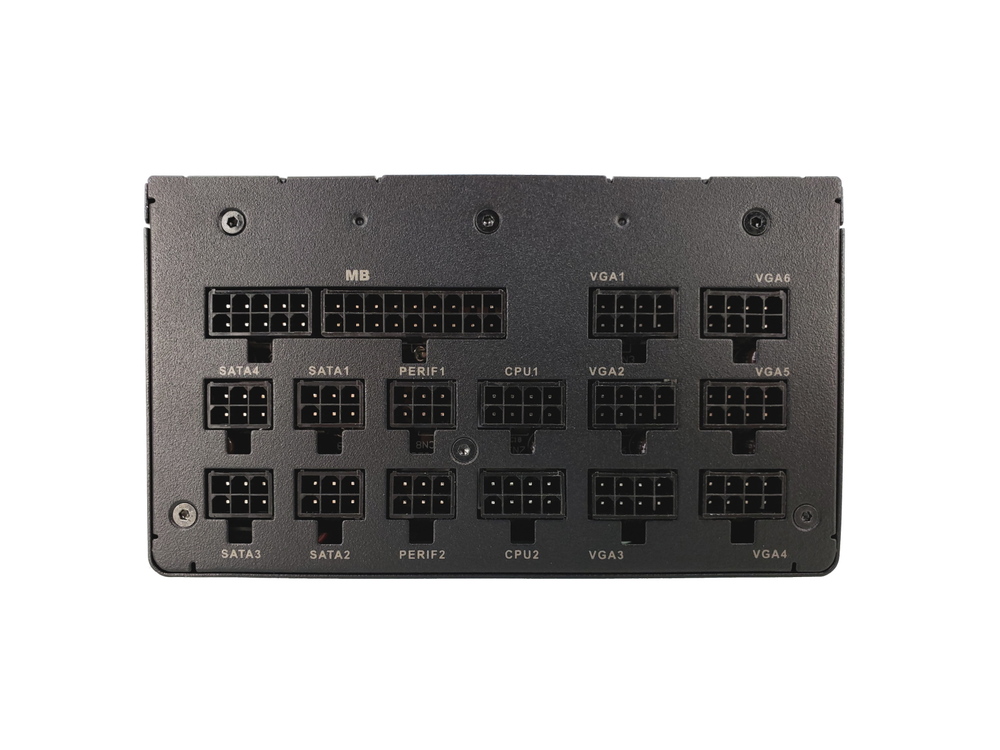

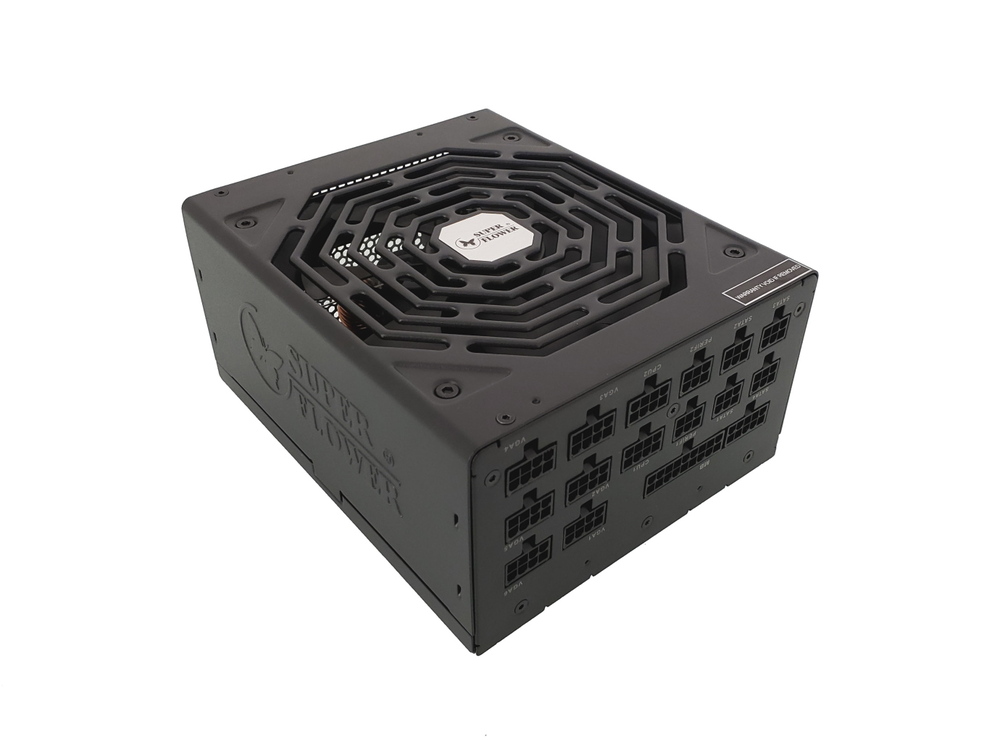

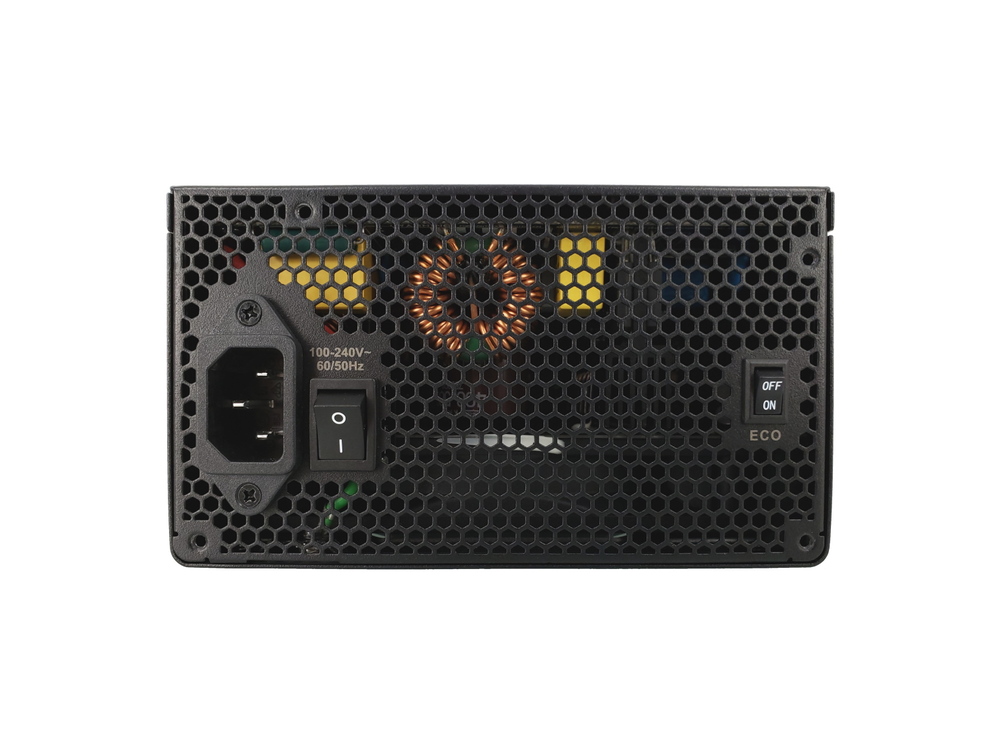

Super Flower LEADEX Platinum 1200W Picture 60580Super Flower LEADEX Platinum 1200W Picture 60583Super Flower LEADEX Platinum 1200W Picture 60582
The Super Flower LEADEX Platinum 1200W is a fully-featured, 80 PLUS Platinum-certified power supply unit with completely modular wiring for clean assembly and a 140mm cooling fan. That fan turns off entirely when the system is using little power, and even when it spins up it is still fairly quiet.

Model: Super Flower SF-1200F14MP

Specifications

Maximum Power 1200 W
Standard Compliance cTUVus, TUV, CB, CE, FCC, RCM, BSMI R33529, RoHS, KCC, CCC
Peak Efficiency 92 %
Efficiency Certification 80 PLUS Platinum
Cooling System 140mm Fan
Safety Compliance cTUVus, TUV, CB, CE, FCC, RCM, BSMI R33529, RoHS, KCC, CCC
Power Distribution
+3.3V rail 20 amps
+5V rail 20 amps
+12V1 rail 99.9 amps
Connectors
Molex 5
SATA 10
Floppy 1
PCI Express 2
PCI Express 8-pin 6
CPU Power 8/4 pin 2
External Connector Type C13
Dimensions
Height 86 mm (3.4 in)
Width 150 mm (5.9 in)
Depth 200 mm (7.9 in)
Net Weight 3.795 kg (8.4 lbs)
Input
Voltage 100-240 Vac
Frequency 50/60 Hz

Features

  • ECO mode keeps the fan off when unneeded, and is only ran at the lowest speed needed to keep the internals cool.
  • Fully modular cables
  • Protections: OVP / OCP / OPP / SCP / OTP / UVP / SVP
