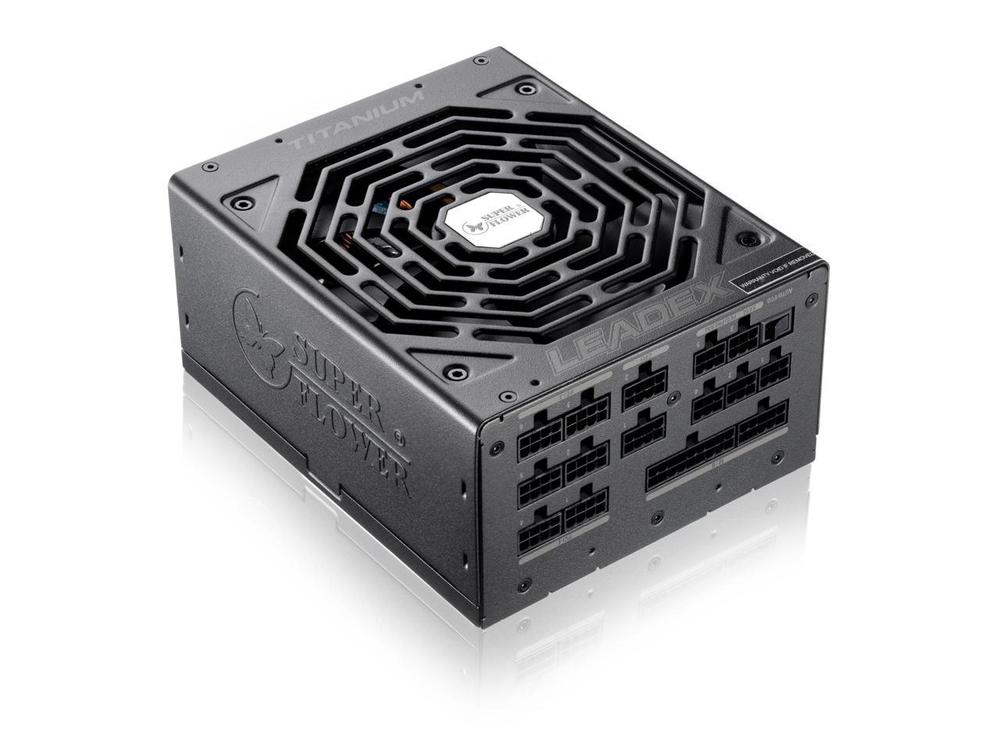

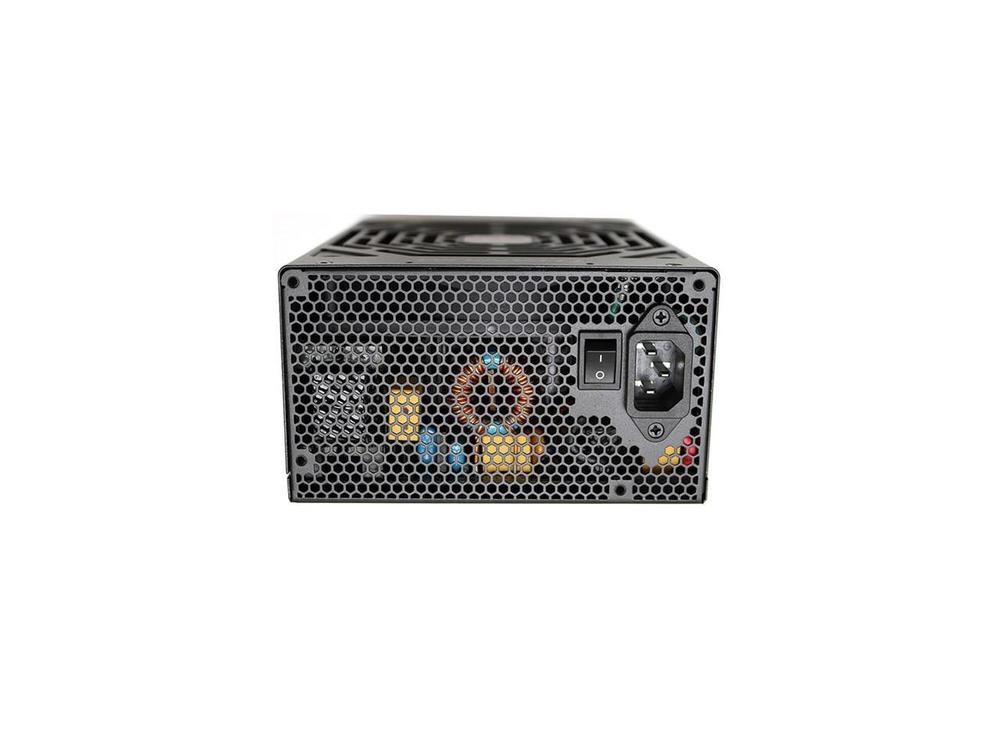

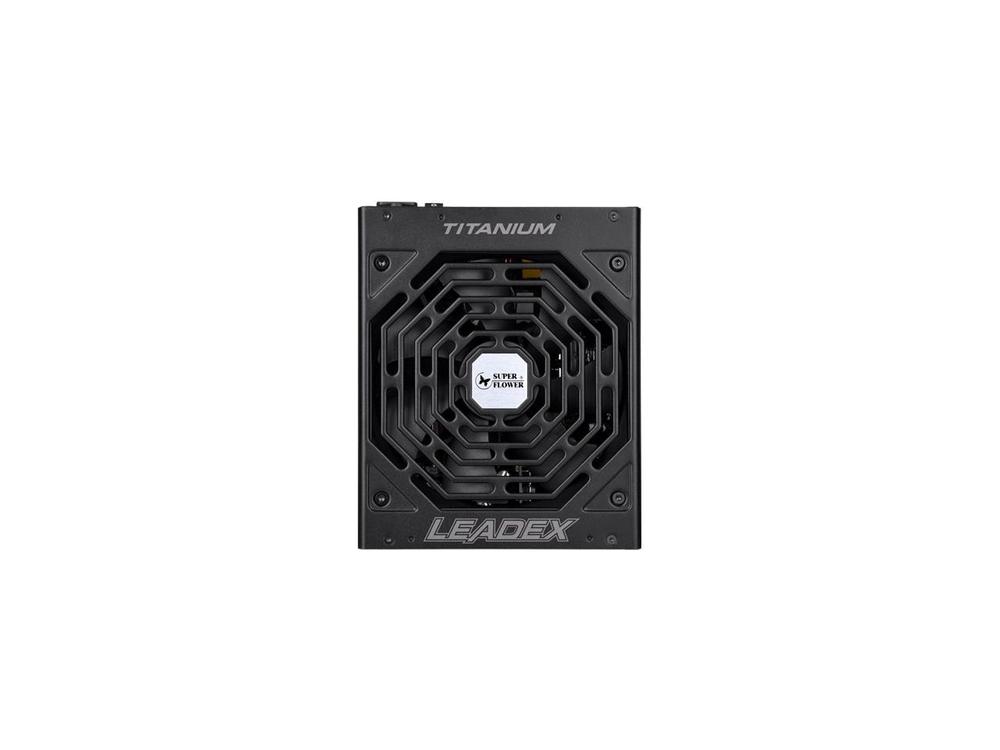

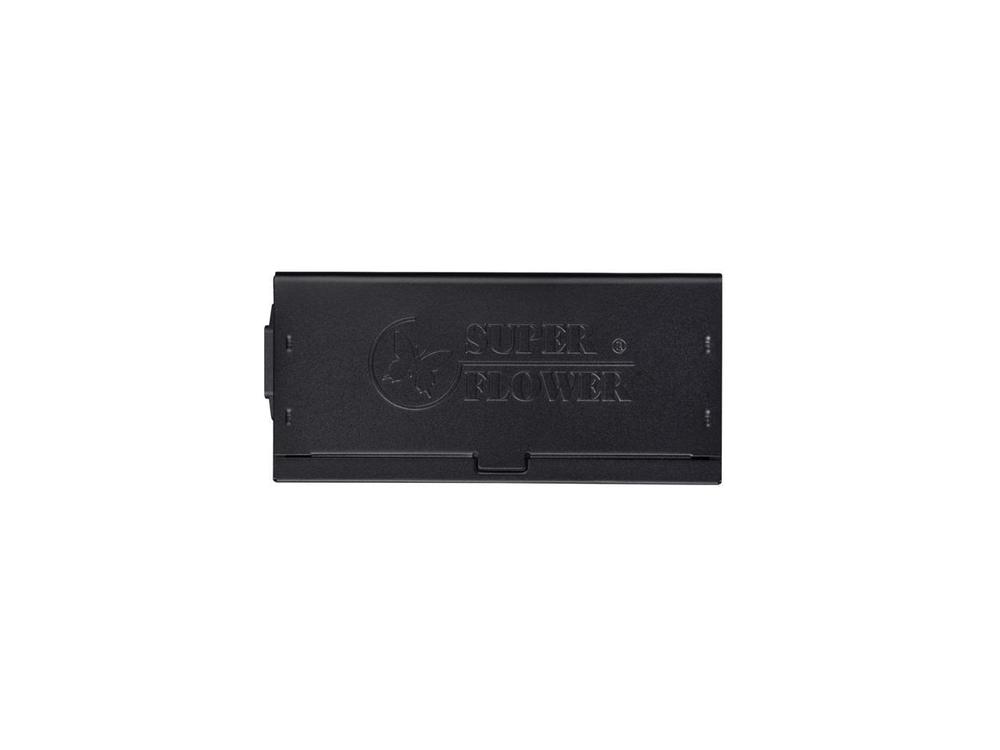

The Super Flower LEADEX Titanium 1000W is a fully-featured, 80 PLUS Titanium-certified power supply unit with completely modular wiring for clean assembly and a 140mm cooling fan. That fan turns off entirely when the system is using little power, and even when it spins up it is still fairly quiet.
Model: Super Flower SF-1000F14HT
Specifications
| Maximum Power | 1000 W |
| Standard Compliance | cTUVus, TUV, CB, CE, FCC, RCM, BSMI R33529, RoHS, KCC, CCC |
| Peak Efficiency | 96 % |
| Efficiency Certification | 80 PLUS Titanium |
| Cooling System | 135mm Fan |
| Safety Compliance | cTUVus, TUV, CB, CE, FCC, RCM, BSMI R33529, RoHS, KCC, CCC |
Power Distribution | |
| +3.3V rail | 20 amps |
| +5V rail | 20 amps |
| +12V1 rail | 83.3 amps |
Connectors | |
| Molex | 6 |
| SATA | 12 |
| Floppy | 1 |
| PCI Express 8-pin | 8 |
| CPU Power 8/4 pin | 2 |
| External Connector Type | C13 |
Dimensions | |
| Height | 86 mm (3.4 in) |
| Width | 150 mm (5.9 in) |
| Depth | 165 mm (6.5 in) |
| Net Weight | 3.672 kg (8.1 lbs) |
Input | |
| Voltage | 100-240 Vac |
| Frequency | 50/60 Hz |
