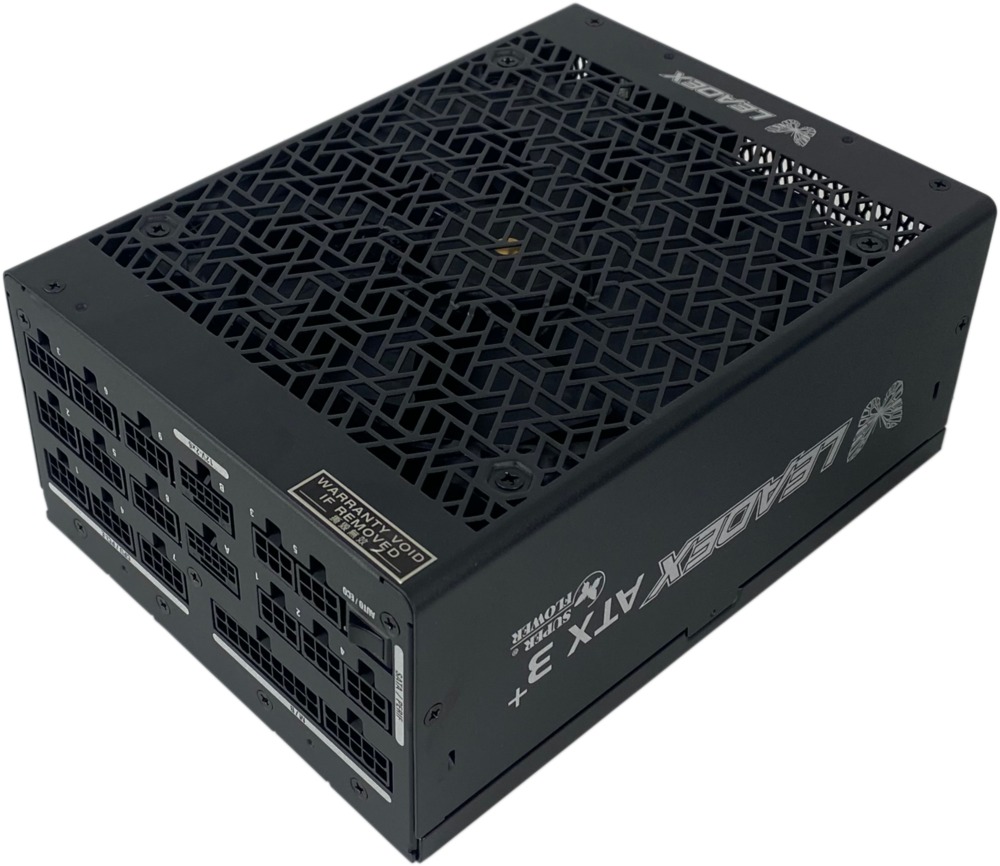

The Super Flower LEADEX Titanium 1700W is a massive, Cybernetics Titanium-certified power supply unit with completely modular wiring for clean assembly and a 140mm cooling fan. That fan turns off entirely when the system is using little power, but when the fan does come on this particular model is a bit noisier than the lower-wattage modes in this series.
This particular unit supports ATX 3.0 and PCIe 5.0 standards, with two 16-pin connectors for powering the latest graphics cards.
This particular unit supports ATX 3.0 and PCIe 5.0 standards, with two 16-pin connectors for powering the latest graphics cards.
Model: Super Flower SF-1700F14HT
Specifications
| Maximum Power | 1700 W |
| Standard Compliance | ATX |
| Peak Efficiency | 94 % |
| Efficiency Certification | Cybenetics Titanium |
| Cooling System | 140mm Fan |
| Noise Level | 0-40 dB |
| Industry Compliance | cTUVus, TUV, CE, UKCA, FCC, EAC, RoHS, CQC |
| Form Factor | PS/2 |
Power Distribution | |
| +3.3V rail | 20 amps |
| +5V rail | 20 amps |
| +12V1 rail | 141.6 amps |

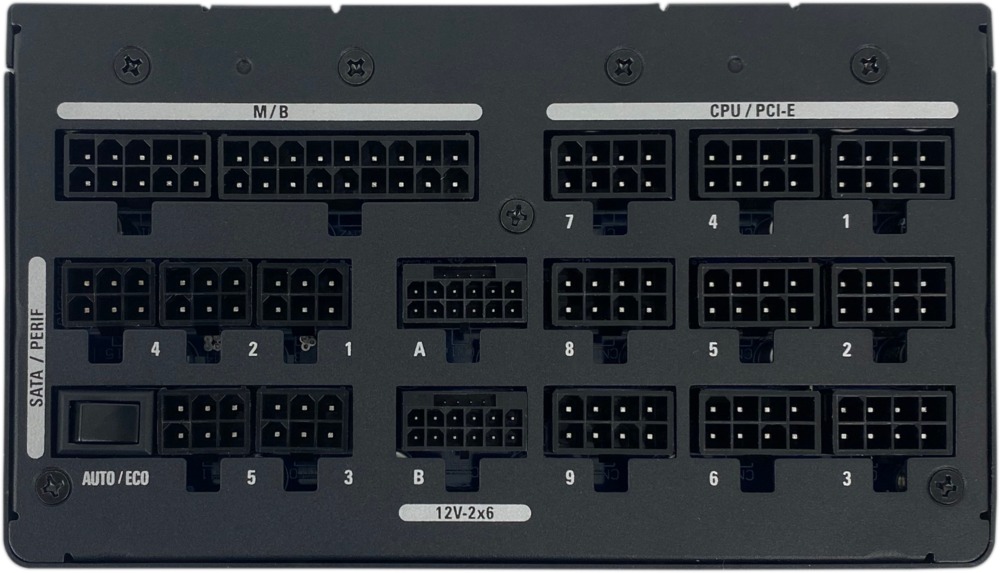

Connectors | |
| Molex | 4 |
| SATA | 16 |
| PCIe 8-Pin | 6 |
| 12V-2x6 | 2 |
| CPU Power 8 pin | 2 |
| External Connector Type | C19 |
Dimensions | |
| Height | 85 mm (3.3 in) |
| Width | 150 mm (5.9 in) |
| Depth | 200 mm (7.9 in) |
| Net Weight | 3.695 kg (8.1 lbs) |
Input | |
| Voltage | 115-240 Vac |
| Frequency | 50-60 Hz |
