Kingston DDR5-4800 ECC Reg. 2R 64GB

Ram

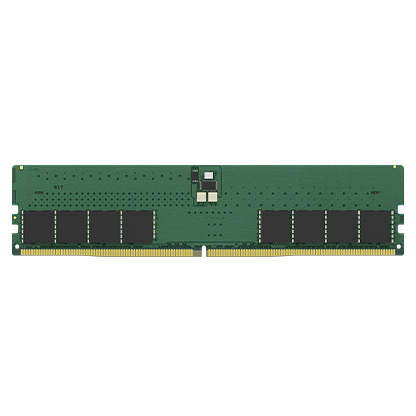

Kingston DDR5-4800 ECC Reg. 2R 64GB Main Picture


Background on DDR5 Registered ECC Memory

DDR5 is the fifth generation of 'double data rate' memory technology. It features reduced power consumption compared to previous generations, while also boosting clock speed and memory density. That means both higher performance and lower power usage, with the potential for larger memory modules as the standard matures.

ECC stands for Error Correction Code, and in the context of computer memory it indicates the ability to detect and correct minor errors. This dramatically increases the reliability of the memory system, which is highly desirable in environments where computers are performing critical functions. There is a small amount of overhead when using ECC memory, so performance takes a slight hit compared to non-ECC options - but the trade-off is well worth it for servers and some workstations.

Further, Registered memory - sometimes also called Buffered memory - puts less of an electrical load on the memory controller chip in a computer. This in turn allows the use of much larger amounts of memory, and so is needed when utilizing all of the memory slots on higher-end server and workstation motherboards.

Due to market volatility, the exact brand and model of memory that we use can vary - but we adhere to strict quality standards and prioritize modules that use Micron or Samsung chips.

Please note that the actual speed at which memory modules will operate in any given system is a combination of several factors: the memory specs, official CPU-supported speeds from Intel & AMD, motherboard memory QVLs, and what we have found to work the best in our internal testing and qualification. If you have questions about what frequency the RAM in your Puget system will be set to, please contact your sales consultant.

William George (Marketing Project Manager)
William George (Marketing Project Manager) Says:
At launch, DDR5-4800 was the common standard - but faster modules are now available. However, the speed your DDR5 memory will actually run at depends heavily on the motherboard, CPU, and even the number and type of modules (single vs dual rank) you have installed. For example, I've seen speeds as low as 3600 specified for some memory combinations on certain Intel Xeon processors. Overall, this isn't something to worry about - as memory speeds aren't a huge factor in performance, and higher-end CPUs that need more bandwidth tend to support faster speeds anyway - but if you have any questions you can reach out to our consulting team.

Model: Kingston KSM48R40BD4TMM-64HMR

Specifications

Total Memory 64GB
Number of Modules 1
Memory per Module 64GB
Memory Type DDR5 RDIMM
Speed Rating PC5 38400
Actual Speed 4800 MT/s
Latency CL40
Voltage 1.1 Volts
ECC Yes
Registered Yes
Heat Spreader No
Rank Dual
Net Weight 0.22 kg (0.5 lbs)
