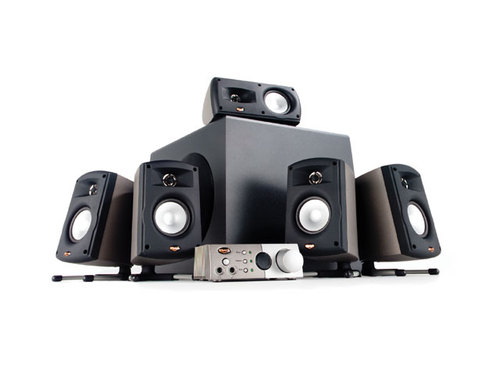

Model: Klipsch ProMedia Ultra 5.1
Frequency Response: 25Hz-20kHz +/- 5dB
Sensitivity: 115dB at listening position (near field)
Maximum Burst Power: 500 w
Enclosure Type: Satellites and center-sealed | Subwoofer-6th order bass reflex
Amplifier: BASH , dual supply, switching/linear hybrid
Inputs: 6 analog discrete channels (3 stereo miniplugs), Auxiliary stereo miniplug music input
Outputs: 5 speaker level outputs (spring clips)
Crossover Frequency: HF - 3000Hz | LF - 120Hz
Tweeter: 25mm metalized polymer
High Frequency Horn: MicroTractrix horn
Midrange: 3-in. fiber composite
Input Connections: DIN cable to control module
Subwoofer: Dual 8-in. side-firing fiber composite drivers
Wire Gauge Accommodated: 18 gauge supplied
Weight: 52.5 lbs
Enclosure Material: MDF
Voltage: 120 volt
Mounting: Wall brackets (wb-1) and telescopic floor stands (rb-1) available at Klipsch web store
Features: Center channel has rear post angle adjustment for positioning
Built From: 2003
FTC Rated per Satellite: 60 w/channel @ = 1% THD, 100Hz - 1KHz
FTC Rated Subwoofer: 170 w @ = 3% THD, 40 - 100Hz
After setting industry standards with the acclaimed ProMedia 5.1 personal audio system, Klipsch has taken things a step further with a new and enhanced version. The ProMedia Ultra 5.1, available in a 120 volt version, augments the performance and style of the award-winning ProMedia 5.1 with an even more impressive subwoofer, updated crossover networks, and new cosmetics on the satellites and control module.
With an enclosure that is 20 percent larger, the ProMedia Ultra 5.1 subwoofer incorporates a series of refinements designed to increase efficiency for more total output, lower distortion and deepen bass extension. These improvements include a lower tuning frequency, a voice coil that is 60 percent longer and a larger, slotted port. The subwoofer is a bass-reflex type with dual 8-inch side-firing woofers and convex driver dust caps for unsurpassed high output linear bass response. The 500-watt BASH amplifier and Klipsch engineering offer high output with low distortion and effortless dynamic headroom.
The updated, two-way Ultra 5.1 satellite speakers and mid-bass drivers sport a sleeker appearance with a refined floating grille and under cone termination, which hides the speaker leads for a cleaner cone appearance. The satellites also feature an updated crossover network that enhances the higher frequencies and delivers richer tones. As with the ProMedia 5.1 satellite speakers, the Ultra 5.1 satellites include exclusive Klipsch MicroTractrix Horn tweeters that cleanly and accurately handle the high frequencies. Each satellite features a redesigned self-supporting pedestal.
The magnetically shielded center channel also features under cone termination uses the same Klipsch MicroTractrix Horn tweeter and three-inch fiber-composite cone woofer as each satellite speaker, ensuring an ideal blend and seamless driver transition.
The user-friendly control module features separate main, center, rear and subwoofer controls as well as a digital LED volume level display and an on/off or headphone listening mode switch. Unlike the original ProMedia 5.1, the Ultra module features all controls on the front panel. It also has two stereo miniplug jacks, one for headphone output and one for the convenient connection of portable audio devices and any other alternative source that uses a stereo miniplug output.
Designed to be the most powerful personal audio system in the world, the ProMedia Ultra 5.1 system will surpass your expectations by delivering the most satisfying ultradynamic surround sound experience available for multimedia applications.
