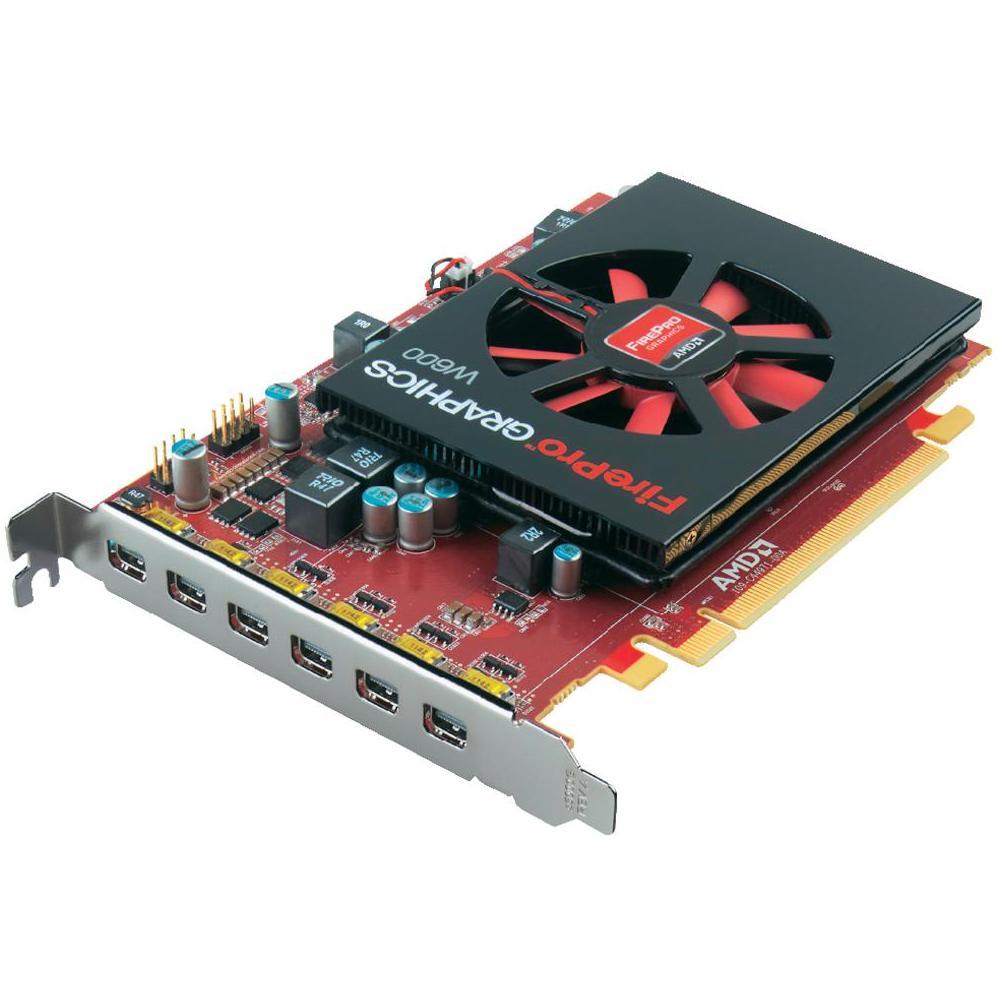

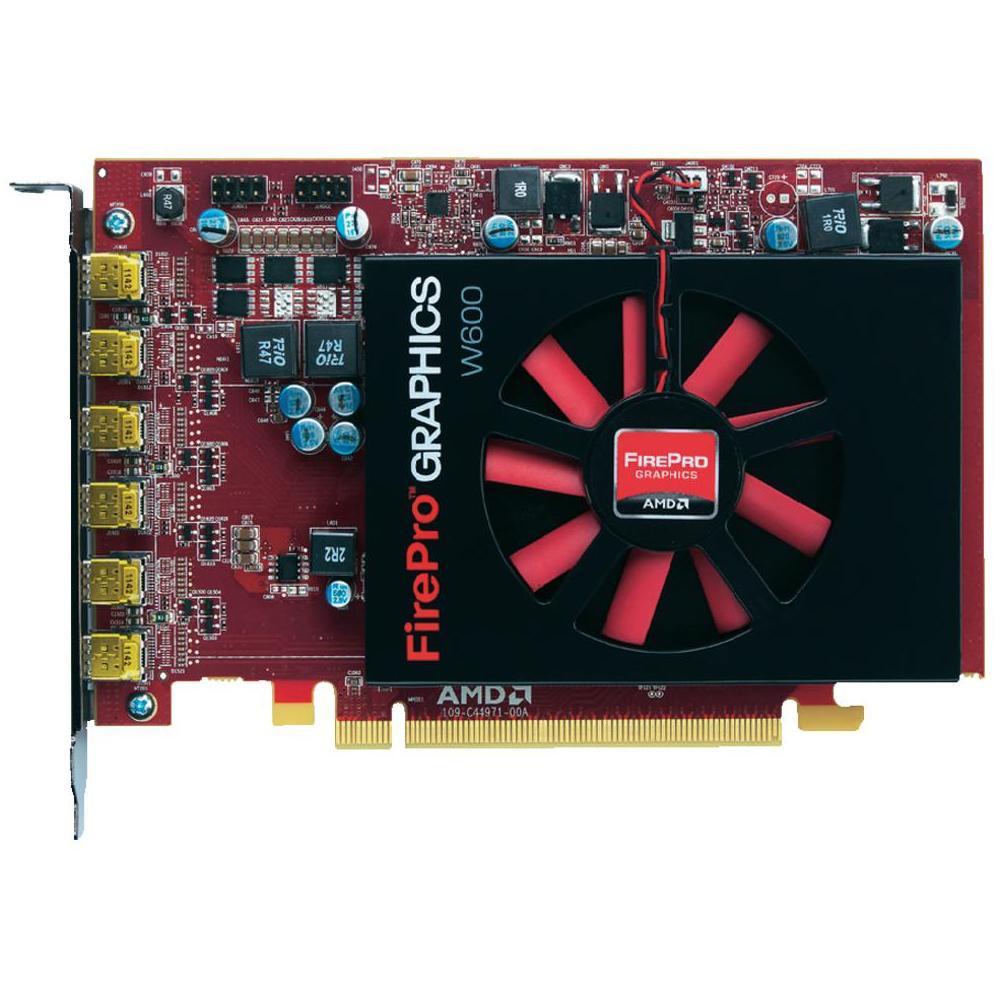

ATI's FirePro W600 is a specialize graphics card, designed for outputting to large arrays of screens such as might be used in a monitor wall or in stock trading applications. This single card can support six display outputs, and can be paired with a second card to support up to twelve. It also supports individual audio output on each connection, thanks to the DisplayPort 1.2 standard.
Other standard display technologies are also supported, including DX11, OpenGL, and OpenCL - but pure performance is limited as this isn't intended as a solution for gaming or demanding graphics workloads. For example, the W600 can only support two HD video streams being decoded at a time.
Other standard display technologies are also supported, including DX11, OpenGL, and OpenCL - but pure performance is limited as this isn't intended as a solution for gaming or demanding graphics workloads. For example, the W600 can only support two HD video streams being decoded at a time.
Model: AMD 100-505746
Specifications
Chipset Manufacturer | ATI |
Product Line | FirePro |
Interface | PCI Express 3.0 x16 |
Maximum DVI Resolution | 2560x1600 |
Maximum Monitors Supported | 6 |
HDCP Compliant | Yes |
GPU Specifications | |
Stream Processors | 512 |
Memory Specifications | |
Video Memory | 2GB |
Memory Type | GDDR5 |
Memory Bus Width | 128-bit |
Additional Information | |
Cooling System | Blower Type |
DirectX Support | DirectX 11 |
OpenGL Support | 4.2 |
Outputs | |
Port 1 | Mini DisplayPort |
Port 2 | Mini DisplayPort |
Port 3 | Mini DisplayPort |
Port 4 | Mini DisplayPort |
Port 5 | Mini DisplayPort |
Port 6 | Mini DisplayPort |
Power Connectors | |
Plug 1 | None |
