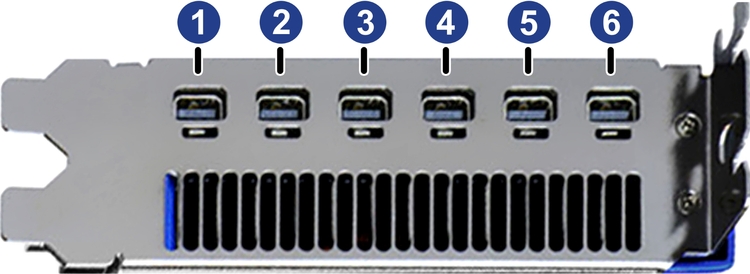

AMD Radeon Pro WX 9100 16GB Ports
Mini DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K. Adaptable to standard DisplayPort.
Mini DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K. Adaptable to standard DisplayPort.
Mini DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K. Adaptable to standard DisplayPort.
Mini DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K. Adaptable to standard DisplayPort.
Mini DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K. Adaptable to standard DisplayPort.
Mini DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K. Adaptable to standard DisplayPort.

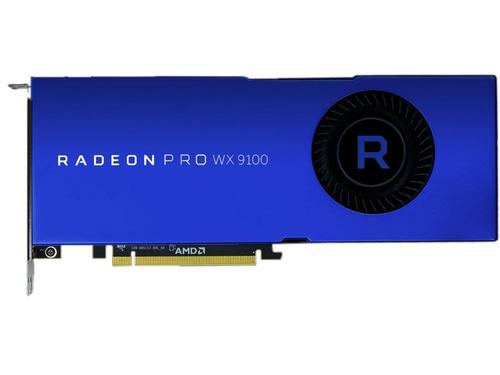

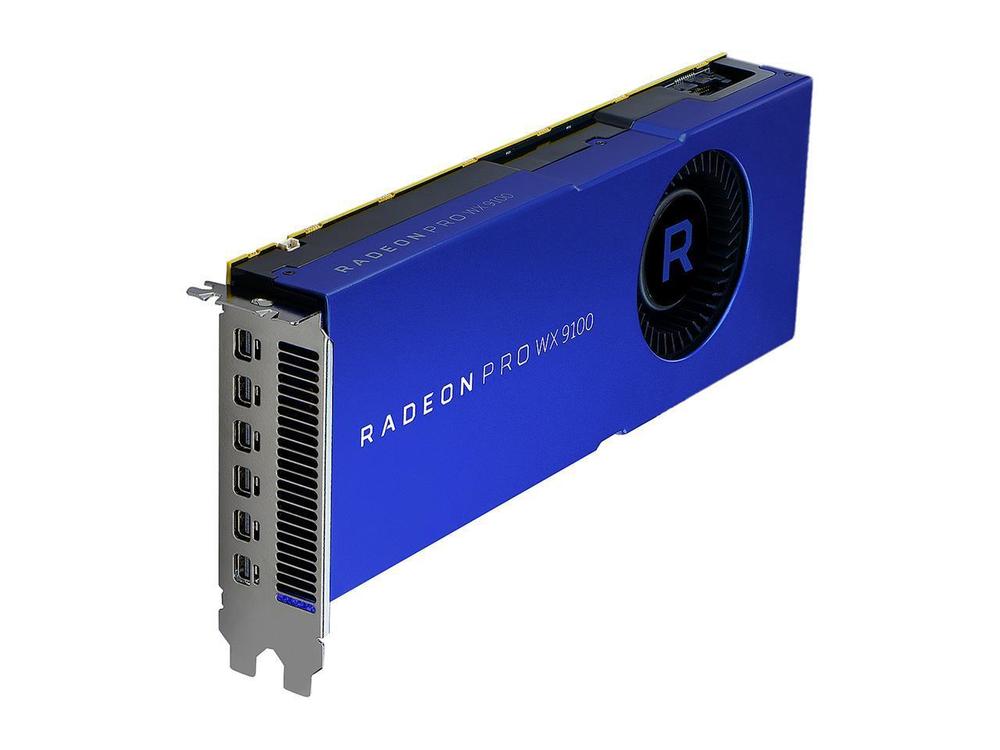

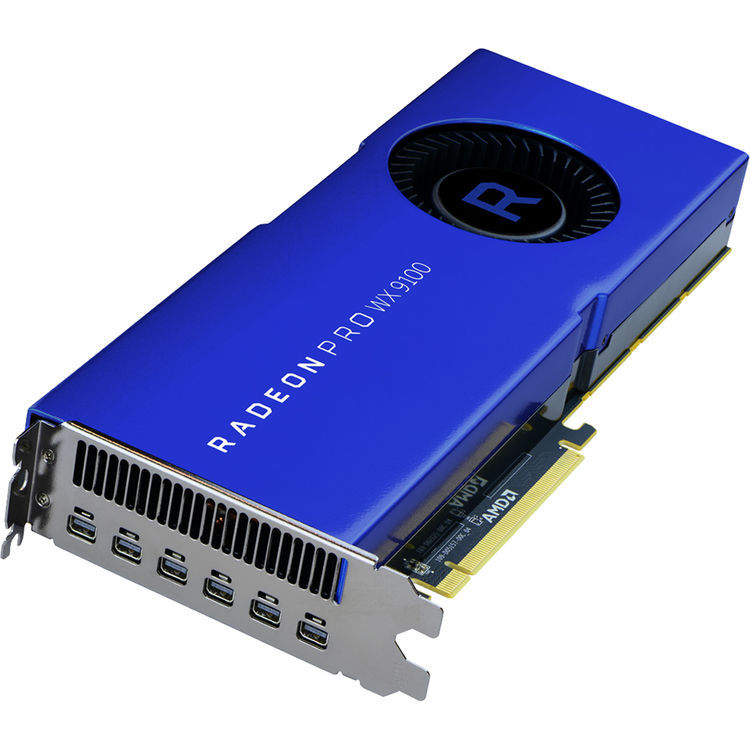

The AMD Radeon Pro WX 9100 is among the first AMD workstation graphics cards to use the Radeon branding name. Compared to its predecessor, the FirePro W9100, it features both more stream processors and higher clock speeds - resulting in significantly more computational performance. It is equipped with 16GB of HBM2 memory and support up to six monitors via Mini DisplayPort outputs.
As with other RadeonPro professional-grade cards, the WX 9100 supports DX12, OpenGL, and OpenCL. Full 10-bit-per-channel color is also available, when paired with supported monitors.
As with other RadeonPro professional-grade cards, the WX 9100 supports DX12, OpenGL, and OpenCL. Full 10-bit-per-channel color is also available, when paired with supported monitors.
Model: AMD 100-505957
Specifications
| Chipset Manufacturer | AMD |
| Product Line | Radeon Pro |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 6 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Boost Speed | 1500 Mhz |
| Stream Processors | 4096 |
Memory Specifications | |
| Video Memory | 16GB |
| Memory Type | HBM2 |
| Memory Speed | 945 MHz |
| Memory Bus Width | 2048-bit |
| Bandwidth | 483.84 GB/s |
Performance | |
| Double Precision Floating Point (Peak) | 0.768 Tflops |
| Single Precision Floating Point (Peak) | 12.29 Tflops |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.5 |
| Removable Backplate | No |
| Slot Width | 2 |
Outputs | |
| Port 1 | Mini DisplayPort |
| Port 2 | Mini DisplayPort |
| Port 3 | Mini DisplayPort |
| Port 4 | Mini DisplayPort |
| Port 5 | Mini DisplayPort |
| Port 6 | Mini DisplayPort |
Power Connectors | |
| Plug 1 | 8-pin PCI-E |
| Plug 2 | 6-pin PCI-E |
