ATI Radeon 9800 Pro 128MB

Video Card

ATI Radeon 9800 Pro 128MB Picture 3216ATI Radeon 9800 Pro 128MB Picture 3209ATI Radeon 9800 Pro 128MB Picture 3210ATI Radeon 9800 Pro 128MB Picture 3211ATI Radeon 9800 Pro 128MB Picture 3212ATI Radeon 9800 Pro 128MB Picture 3213ATI Radeon 9800 Pro 128MB Picture 3214ATI Radeon 9800 Pro 128MB Picture 3215ATI Radeon 9800 Pro 128MB Picture 3217

GPU: RADEON™ 9800 PRO
Memory: 128MB DDR MB
Interface: AGP 1X/2X/4X/8X
Clock Speed: 380MHz
Memory Speed: 680MHz

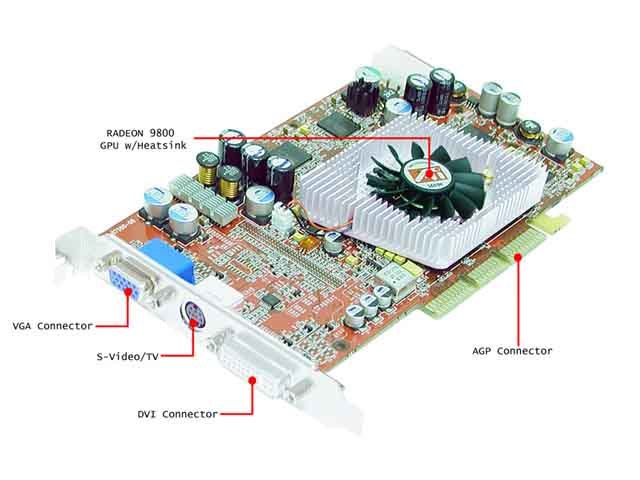

Connectors:n1 x VGA out(15 Pin D-Sub)
1 x TV-Out(S-Video)
1 x DVI connectornnMax Resolution:n2048X1536@85Hznn3D Acceleration Features:nAGP 8X support
SMARTSHADER™ 2.1
Full support for Microsoft® DirectX® 9.0 programmable vertex and
pixel shaders in hardware
2.0 Vertex Shaders support vertex programs up to 65,280 instructions with
flow control
2.0 Pixel Shaders support up to 16 textures per rendering pass
New F-buffer technology supports pixel shader programs with unlimited
instructions
128-bit, 64-bit & 32-bit per pixel floating point color formats
Multiple Render Target (MRT) support
Shadow volume rendering acceleration
Complete feature set also supported in OpenGL® via extensions
SMOOTHVISION™ 2.1
2x/4x/6x full scene anti-aliasing modes
Adaptive algorithm with programmable sample patterns
2x/4x/8x/16x anisotropic filtering modes
Adaptive algorithm with bi-linear (performance) and tri-linear (quality)
options
HYPER Z™ III+
3-level Hierarchical Z-Buffer with early Z test
Lossless Z-Buffer compression (up to 24:1)
Fast Z-Buffer Clear
Z cache optimized for real-time shadow rendering
TRUFORM™ 2.0
2nd generation N-Patch higher order surface support
Discrete and continuous tessellation levels per polygon
Displacement mapping
VIDEOSHADER™
Seamless integration of pixel shaders with video
FULLSTREAM™ video de-blocking technology
Noise removal filtering for captured video




with the ATI Radeon 9800 Pro 128MB.
