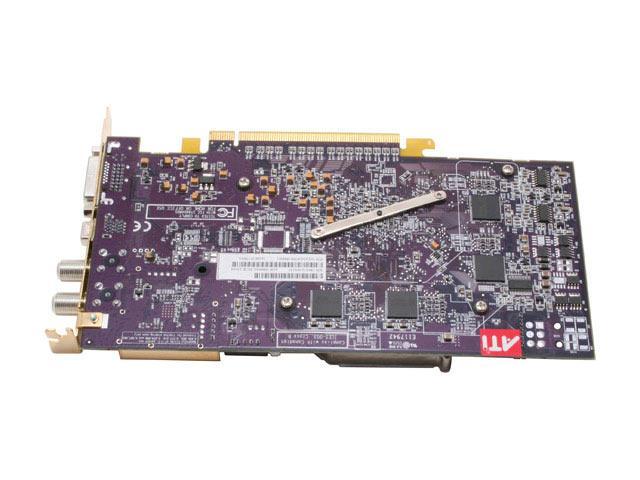

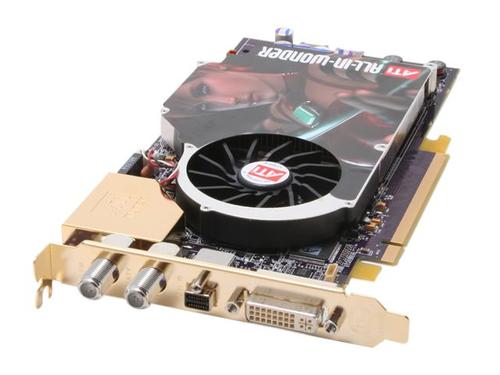

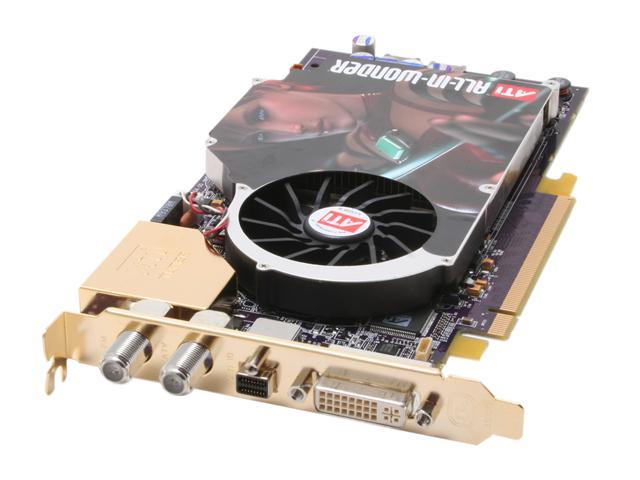

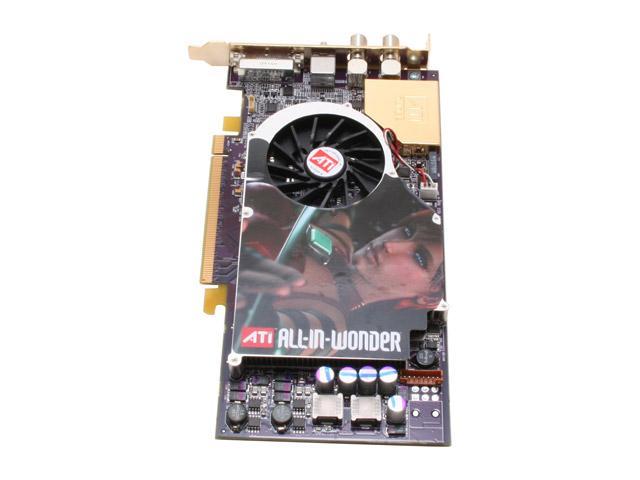

Model: ATI 100-714301
Features
- 160 million transistors on 0.13 micron low-k fabrication process
- Up to sixteen extreme parallel pixel pipelines
- Six programmable vertex shader pipelines
- 256-bit quad-channel GDDR3 memory interface
- AGP 8X support or PCI Express support
- Support for Microsoft DirectX 9.0 programmable vertex and pixel shaders in hardware
- DirectX 9.0 Vertex Shaders
- Vertex programs up to 65,280 instructions with flow control
- Single cycle trigonometric operations (SIN COS) - DirectX 9.0 Extended Pixel Shaders
- Up to 1,536 instructions and 16textures per rendering pass
- 2nd generation F-buffer technology accelerates multi-pass pixel shader programs with unlimited instructions
- 32 temporary and constant registers
- Facing register for two-sided lighting
- 128-bit, 64-bit 32-bit per pixel floating point color formats
- Multiple Render Target (MRT) support - Complete feature set also supported in OpenGL via extensions
- 2x/4x/6x Anti-Aliasing modes
- Sparse multi-sample algorithm with gamma correction, programmable sample patterns, and centroid sampling
- Lossless Color Compression (up to6:1)at all resolutions, including widescreen HDTV resolutions
- Temporal Anti-Aliasing - 2x/4x/8x/16x Anisotropic Filtering modes
- Up to 128-tap texture filtering
- Adaptive algorithm with bilinear (performance) and trilinear (quality) options - High quality 4:1 Normal Map Compression
- Works with any two-channel data format
- 3-level Hierarchical Z-Buffer with Early Z Test
- Lossless Z-Buffer Compression (up to 48:1)
- Fast Z-Buffer Clear
- Z Cache optimized for real-time shadow rendering
- Optimized for performance at high display resolutions, including widescreen HDTV resolutions
- Seamless integration of pixel shaders with video in real time
- FullStream video de-blocking technology for Real, DivX, and WMV9 formats
- VideoSoap noise removal filtering for captured video
- MPEG1/2/4 decode and encode acceleration
- DXVA Support
- Hardware Motion Compensation, iDCT, DCT and color space conversion - All-format DTV/HDTV decoding
- YPrPb component output for direct drive of HDTV displaysÃ1/2
- Adaptive Per-Pixel De-Interlacing and Frame Rate Conversion (temporal filtering)
- Dual integrated display controllers
- Dual integrated 10 bit per channel 400 MHz DACs Integrated 165 MHz TMDS transmitter (DVI 1.0 compliant / HDMI interoperable and HDCP ready)
- Integrated TV Output support up to 1024x768 resolution
- Windows Logo Program compliant
- Catalyst Software Suite
- Watch up to 125 channels on your computer
- Personal Video Recorder functionality allows users to record programs on your hard drive, pause live TV and resume broadcasts on your schedule
- Listen to Stereo FM on your PC
- Gemstar GUIDE Plus+#153; provides free interactive programming guides to select, schedule and record your favorite shows

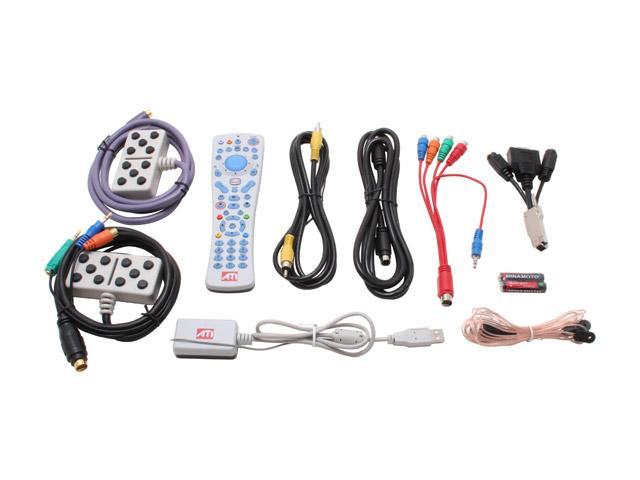

- Control your computer from a distance using your Remote Wonder#153; PLUS or MCE Remote Control** (optional)
- Easily capture and edit your home videos and burn to DVD\\\'s/Video CD
- Enjoy dual tuner capabilities such as Picture-in-Picture with ATI\\\'s MultiView#153; *
- Theatre 200 video decoder powers your PC with high quality video
- Transfer high-definition component video output via a YPrPb adapter
- DVB-T (Digital Video Broadcast-Terrestrial)portable and mobile TV support in Europe
- Windows#174; XP Media Center Edition compatible
- Includes free software:
- Pinnacle Studio 9
- ATI Bonus DVD
- Gemstar GUIDE Plus+#174;
- Muvee AUTOPRODUCER
Graphics Technology: Radeon X800 XL Graphics Processing Unit
Memory Configuration: 256MB of double data rate memory
Operating Systems Support: Windows XP (Home or Professional)Windows XP Media Center 2005 1
Display Support: One display (VGA or DVI) simultaneously connected with a TV or VCROne display (VGA or DVI) simultaneously connected with a VGA displayYPrPb output adapter (available in North America)SCART output adapter (available in Europe)
TV-tuner Requirements: TV signal from amplified antenna or cable. Versions available for
Connectors: DVI-I and VGAStereo audio, S-video, and composite video inputs and outputsExternal stereo connections to sound card#39;s line input and outputYPrPb Output adapter (available in North America)
Processor: Intel Pentium 4/Celeron, AMD Athlon3.0GHz or equivalent minimum CPU is recommended for software encoding requirements of Windows Media Center
Available Slot: PCI Express bus configuration with an x16 lane graphics slot
Memory: 128MB of system memory (256MB or higher recommended)
Optical Disk: Installation software requires CD-ROM drive DVD playback requires DVD drive
Operating System Support: - Windows XP (Home or Pro) - Windows 2000 with Service Pack 1 (or later) - Windows Media Center Edition
Connectivity: Remote control receiver requires available USB port
Processor Speed: 1 GHz minimum processor speed for MPEG-2 video capture
Other: Interactive Program guide requires Internet connection for listing updates
(*): Features vary from country to country and depending on the television standard. Note that Latin American countries using the PAL M and PAL N standards including Argentina and Brazil are supported by the NTSC version.
A total PCI Express Multimedia Solution:
ATI introduces the All-in-Wonder X800 XL Edition which provides a total multimedia experience on your PC. Get video editing and TV/PVR and 3D cinematic gaming included in ONE easy-to-install card. All-in-Wonder X800 XL delivers a home entertainment system for the digital hobbyist, serious gamer, videographer, TV or movie fan, and just about anybody who wants to turn their PC into an audio/video entertainment hub. The All-in-Wonder X800XL features a top quality 3D graphics engine, TV tuner, PVR, FM support, great free software, and all the connectors you need to turn your PC into a Multi-media blockbuster.
Greatest Graphics Power
All-in-Wonder X800 XL delivers an extremely smooth, responsive High-Definition gaming experience with full support for DirectX 9.0 and OpenGL 2.0. Accelerated video processing delivers high-quality video playback with user-programmable video effects, reduced video noise, and supports many video encoding/decoding standards including MPEG 1/2/4, Real Media, DivX, and Microsoft Windows Media Video 9.
Enormous Entertainment Value
ATIs acclaimed Multimedia Center integrated software suite supports your need for a home theater quality multimedia experience.
The All-in-Wonder X800 XL supports high definition-ready TV output, DVD, and video recording and playback work. Included is full on-demand PVR functionality for recording programs on your hard drive, FM Stereo reception, digital audio recording and playback, and imbedded DVD burning capability.
Superior Customer Support
ATIs Catalyst Control Center is the worlds most feature-rich and stable 3D acceleration control application, and automatically configures your system with optimal settings. In the unlikely event of a graphics hang, ATIs VPU Recover automatically resets the graphics processor so you can continue without interruption or data loss. With frequent updates, reliable customer service, and an interactive user feedback program, ATIs Catalyst Control Center is backed by ATIs technical confidence, industry-leading capability, and uncompromising commitment to creating your ultimate visual experience.
