Specifications
| Chipset Manufacturer | ATI |
| Product Line | Radeon HD |
| Interface | PCI Express 2.0 x16 |
| Maximum DVI Resolution | 2560x1600 |
| Maximum Monitors Supported | 5 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Core Speed | 830 MHz |
| Stream Processors | 3072 |
Memory Specifications | |
| Video Memory | 4GB |
| Memory Type | GDDR5 |
| Memory Speed | 1250 MHz |
| Memory Bus Width | 256-bit |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 11 |

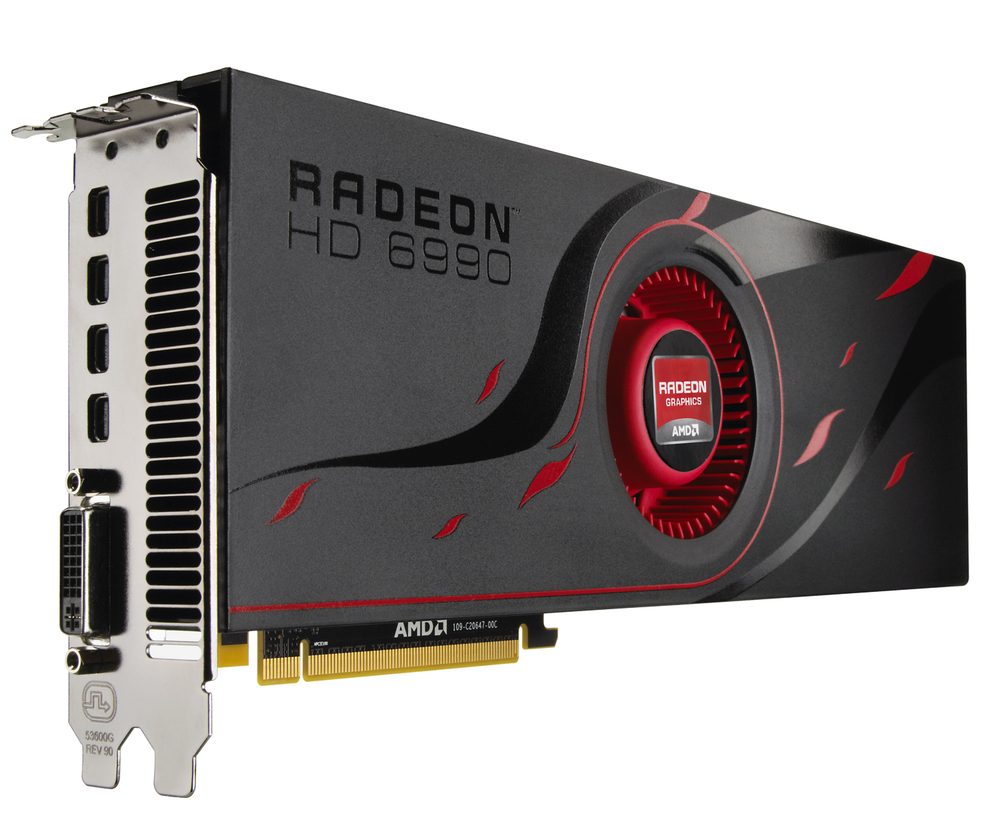

Outputs | |
| Port 1 | Dual-Link DVI |
| Port 2 | Mini DisplayPort |
| Port 3 | Mini DisplayPort |
| Port 4 | Mini DisplayPort |
| Port 5 | Mini DisplayPort |
Power Connectors | |
| Plug 1 | 8-pin PCI-E |
| Plug 2 | 8-pin PCI-E |
Use of 3 or more displays with AMD Eyefinity technology requires a DisplayPort-capable panel or an AMD Eyefinity validated dongle. See http://www.amd.com/EyefinityDongles for a list of validated DisplayPort dongles.
Up to 6 displays supported with DisplayPort 1.2 Multi-Stream Transport
