Model: Asus GTX980-4GD5
Specifications
| Chipset Manufacturer | nVidia |
| Product Line | GeForce |
| Interface | PCI Express 3.0 x16 |
| Maximum DisplayPort Resolution | 4096x2160 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Core Speed | 1127 MHz |
| Boost Speed | 1216 Mhz |
| Stream Processors | 2048 |
Memory Specifications | |
| Video Memory | 4GB |
| Memory Type | GDDR5 |
| Memory Speed | 3505 MHz |
| Memory Bus Width | 256-bit |
| Bandwidth | 224.3 GB/s |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 11.2 |
| OpenGL Support | 4.4 |

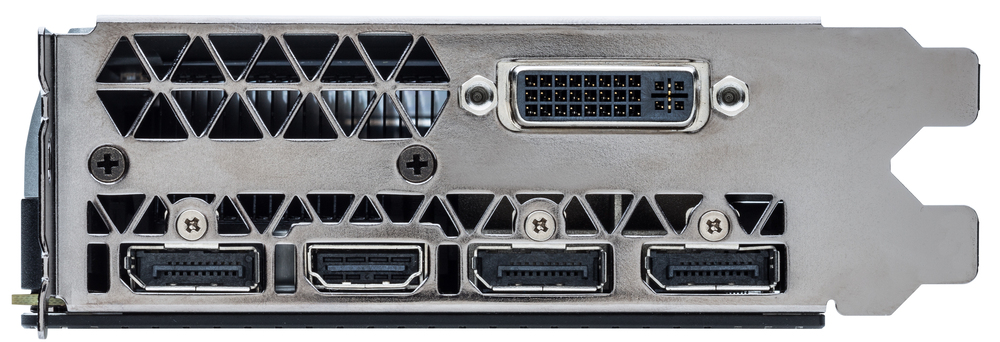

Outputs | |
| Port 1 | Dual-Link DVI |
| Port 2 | HDMI |
| Port 3 | DisplayPort |
| Port 4 | DisplayPort |
| Port 5 | DisplayPort |
Power Connectors | |
| Plug 1 | 6-pin PCI-E |
| Plug 2 | 6-pin PCI-E |
Dimensions | |
| Length | 266.7 mm (10.5 in) |
| Height | 111.15 mm (4.4 in) |
Maximum displays using Nvidia Surround: 3
