Asus GeForce GTX Titan X 12GB (Maxwell)

Video Card

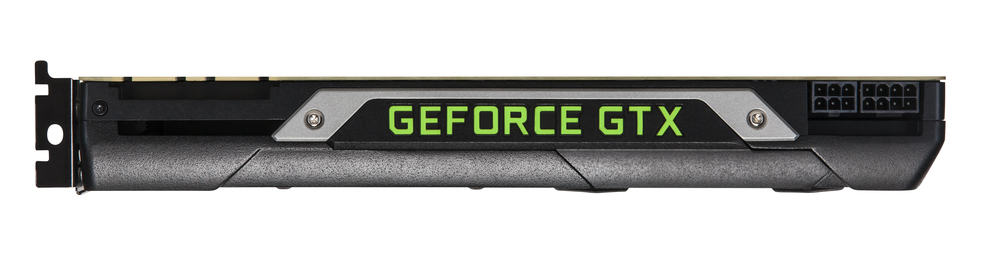

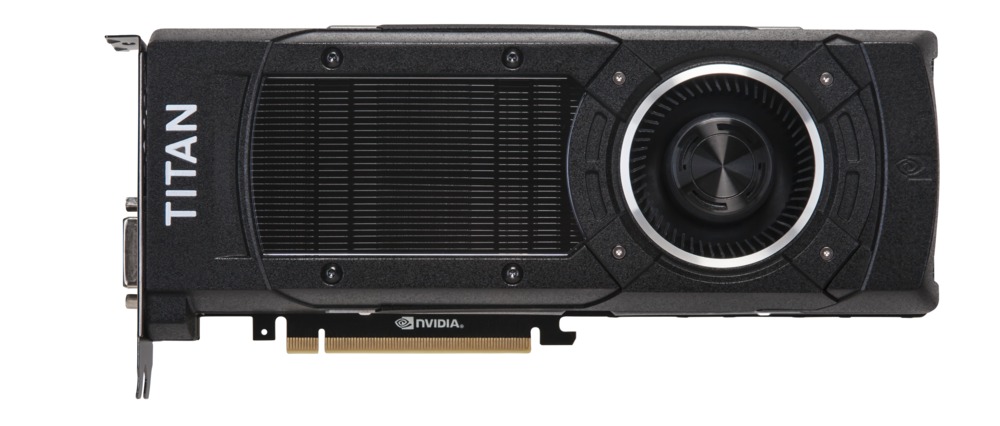

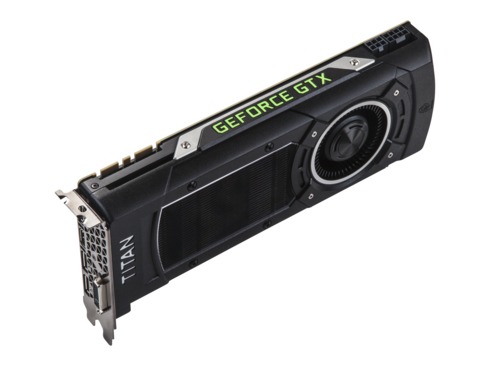

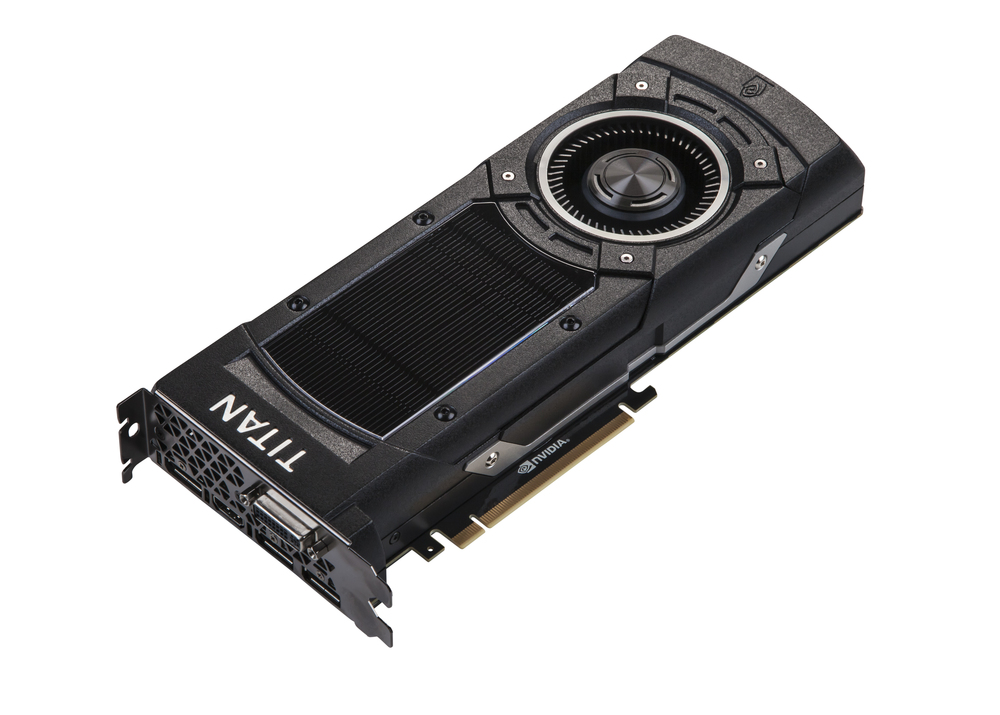

Asus GeForce GTX Titan X 12GB (Maxwell) Main Picture


Asus GeForce GTX Titan X 12GB (Maxwell) Picture 36029Asus GeForce GTX Titan X 12GB (Maxwell) Picture 36030Asus GeForce GTX Titan X 12GB (Maxwell) Picture 36031

Model: Asus GTXTITANX-12GD5

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Interface PCI Express 3.0 x16
Maximum Digital Resolution 4096x2160
Maximum DVI Resolution 2560x1600
Maximum Monitors Supported 4
HDCP Compliant Yes
GPU Specifications
Core Speed 1000 MHz
Boost Speed 1075 Mhz
Stream Processors 3072
Memory Specifications
Video Memory 12GB
Memory Type GDDR5
Memory Speed 7010 MHz
Memory Bus Width 384-bit
Bandwidth 336.5 GB/s
Additional Information
Cooling System Blower Type
DirectX Support DirectX 12
CUDA Support 5.2
OpenGL Support 4.4
Outputs
Port 1 Dual-Link DVI
Port 2 HDMI
Port 3 DisplayPort
Port 4 DisplayPort
Port 5 DisplayPort
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 6-pin PCI-E
Dimensions
Length 267 mm (10.5 in)
Height 111 mm (4.4 in)
Width 38 mm (1.5 in)

Maximum displays using Nvidia Surround: 3
