Asus GeForce RTX 2060 6GB Blower Fan

Video Card

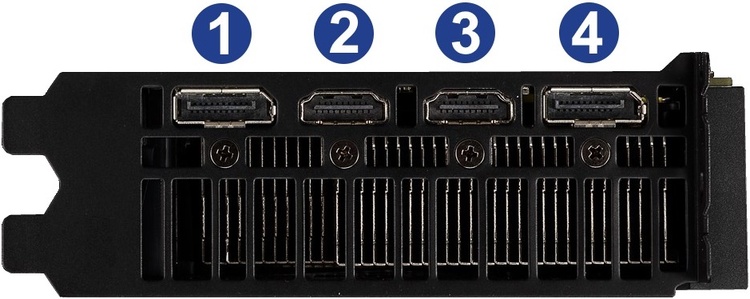

[ Rear Ports ]

Asus GeForce RTX 2060 6GB Blower Fan Picture 53010Asus GeForce RTX 2060 6GB Blower Fan Picture 53011Asus GeForce RTX 2060 6GB Blower Fan Picture 53012Asus GeForce RTX 2060 6GB Blower Fan Picture 54463
The GeForce RTX 2060 is based on NVIDIA's Turing GPU architecture. This generation represents only an incremental improvement in general graphics performance, making the RTX 2060 around the same performance as the previous generation GTX 1070. The big thing that this new GPU architecture brings to the table is forward-looking features not found on previous GTX cards: dedicated RT cores for ray tracing and Tensor cores for machine learning inference. The RT cores are brand-new, while the Tensor cores have existed on previous Titan and Quadro cards - but this is the first time they've come to the mainstream GeForce series. This specialized hardware will allow for new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit.

This particular variant, from Asus, has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.

Finally, in regards to connectivity, this RTX 2060 has dropped DVI output entirely. There are still enough outputs for four monitors, though, with a pair each of HDMI 2.0b and DisplayPort 1.4 connectors.
Model: Asus TURBO-RTX2060-6G

Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  4096x3112
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Core Speed  1,365 MHz
Boost Speed  1,680 Mhz
Stream Processors  1,920
Memory Specifications
Video Memory  6GB
Memory Type  GDDR6
Memory Speed  14,000 MHz
Memory Bus Width  192-bit
Bandwidth  336 GB/s
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Port 1  DisplayPort
Port 2  HDMI
Port 3  HDMI
Port 4  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Length  268 mm (10.6 in)
Height  113 mm (4.4 in)
Width  40 mm (1.6 in)


3 Years

Configure a custom computer with the Asus GeForce RTX 2060 6GB Blower Fan.
