Asus Radeon R9 380 2GB DirectCU II OC

Video Card

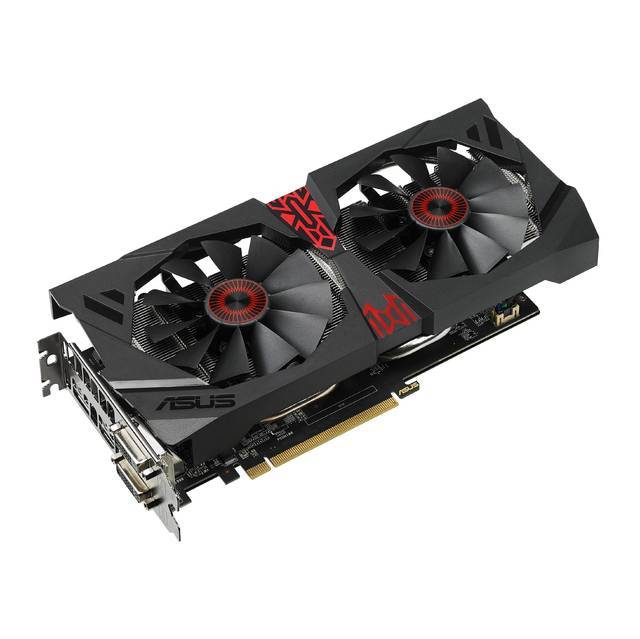

Asus Radeon R9 380 2GB DirectCU II OC Main Picture


Asus Radeon R9 380 2GB DirectCU II OC Picture 36888Asus Radeon R9 380 2GB DirectCU II OC Picture 36889
AMD's Radeon R9 380 is a refresh to the previous R9 285, with the core clock speed slightly increased to boost performance - putting it just a hair faster than the card it replaces. Like most other Radeon cards in the 200- and 300-series, the R9 380 supports several GPU technologies: Eyefinity, Crossfire, Mantle, DirectX 12, OpenGL, OpenCL Accelerated Parallel Processing, the Havok physics engine, and 3D Blu-ray movies.

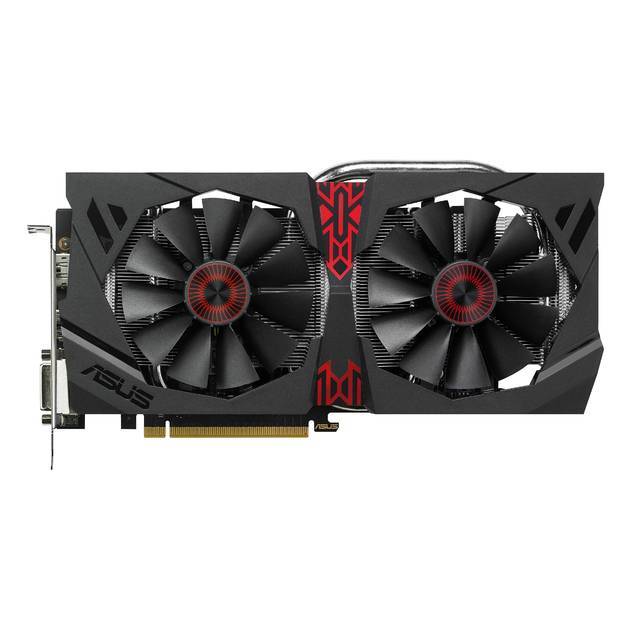

This specific Asus version of the R9 380 has a dual fan cooler for increased cooling capacity at a lower noise level. A potential drawback to this design is that it exhausts hot air into the chassis instead of out the back of the system, which means it can cause a slight temperature increase to other nearby components (CPU, chipset, etc). For display output, two DVI, one HDMI, and one DisplayPort are present.

Model: Asus STRIX-R9380-DC2OC-2GD5-GAMING

Specifications

Chipset Manufacturer AMD
Product Line Radeon
Interface PCI Express 3.0 x16
Maximum Digital Resolution 4096x2160
Maximum DVI Resolution 2560x1600
Maximum Monitors Supported 6
HDCP Compliant Yes
GPU Specifications
Boost Speed 990 Mhz
Stream Processors 1792
Memory Specifications
Video Memory 2GB
Memory Type GDDR5
Memory Speed 5500 MHz
Memory Bus Width 256-bit
Bandwidth 182.4 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
OpenGL Support 4.4
Slot Width 2

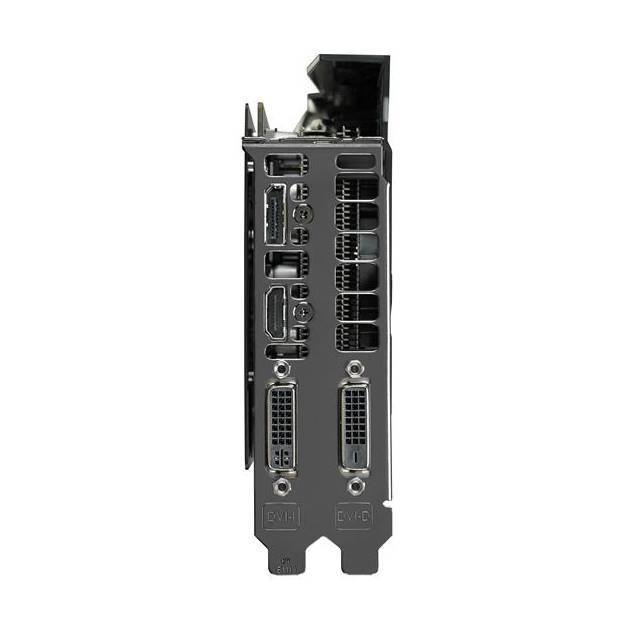

Outputs
Port 1 Dual-Link DVI
Port 2 Dual-Link DVI
Port 3 HDMI
Port 4 DisplayPort
Power Connectors
Plug 1 6-pin PCI-E
Plug 2 6-pin PCI-E
Dimensions
Length 271 mm (10.7 in)
Height 139 mm (5.5 in)
Width 42 mm (1.7 in)

Maximum Displays: 3 with DVI/HDMI, 4 using DisplayPort, 6 with an MST hub
