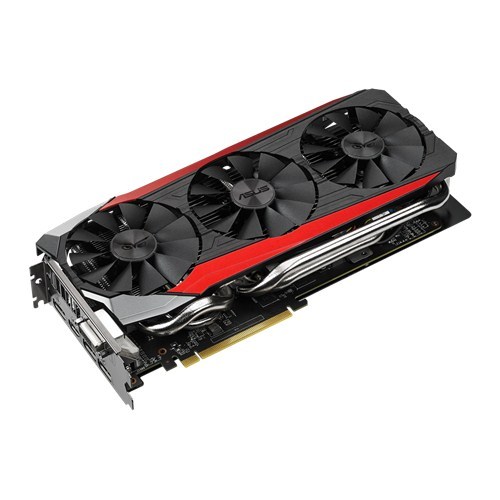

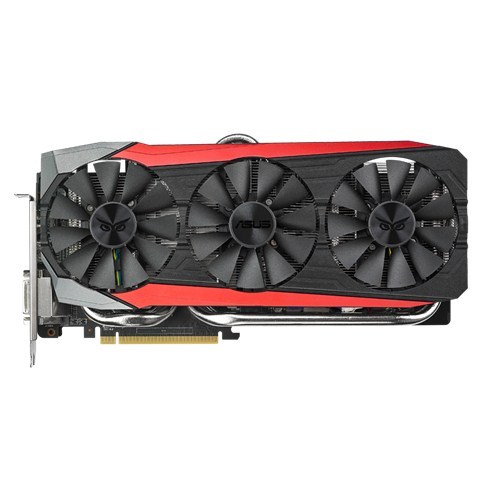

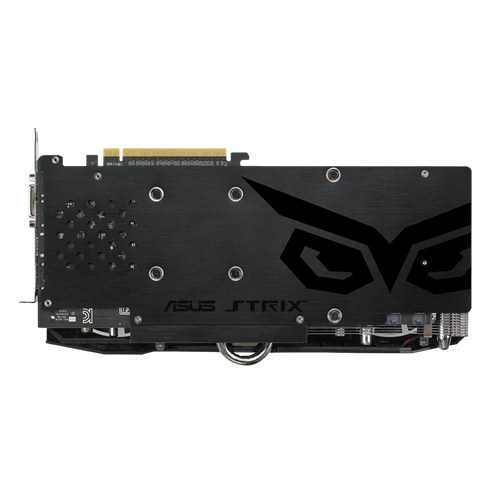

Model: Asus STRIX-R9390X-DC3OC-8GD5-GAMING
Specifications
Chipset Manufacturer | AMD |
Product Line | Radeon |
Interface | PCI Express 3.0 x16 |
Maximum Digital Resolution | 4096x2160 |
Maximum Monitors Supported | 6 |
HDCP Compliant | Yes |
GPU Specifications | |
Boost Speed | 1070 Mhz |
Stream Processors | 2816 |
Memory Specifications | |
Video Memory | 8GB |
Memory Type | GDDR5 |
Memory Speed | 6000 MHz |
Memory Bus Width | 512-bit |
Bandwidth | 384 GB/s |
Additional Information | |
Cooling System | Open Air Type |
DirectX Support | DirectX 12 |
OpenGL Support | 4.4 |
Outputs | |
Port 1 | Dual-Link DVI |
Port 2 | DisplayPort |
Port 3 | HDMI |
Port 4 | DisplayPort |
Port 5 | DisplayPort |
Power Connectors | |
Plug 1 | 6-pin PCI-E |
Plug 2 | 8-pin PCI-E |
Dimensions | |
Length | 300 mm (11.8 in) |
Height | 137.7 mm (5.4 in) |
Width | 40 mm (1.6 in) |
Maximum Displays: 3 with DVI/HDMI, 4 using DisplayPort, 6 with an MST hub
