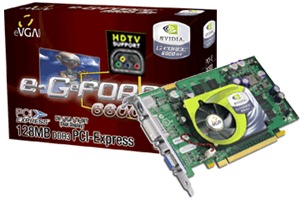

Model: EVGA 128-P2-N368-TX
Features
- 256-bit GeForce 6600 GT (500MHz clock)
- 128MB 128-bit 2ns (8x32) DDR3 Memory
- (500MHz clock - 1000MHz effective)
- PCI Express x16 Compatibility
- ( PCI Express Compliant )
- PC 99 DB-15 analog connector
- ( VESA DDC2B + DPMS )
- Integrated NVIDIA TV Encoder (S-Video)
- DVI-I Connector for Analog/Digital Display
- 16 GB per second memory bandwidth
- Supports component video (HDTV-output)
- Superscaler 8-pipe architecture
- CineFX 3.0 Engine
- UltraShadowII Technology
- 64-bit texture filtering and blending
- Intellisample 3.0 Technology
- SLI Multi-GPU Ready
- 128-bit Studio precision computation
- Full speed 32-bit color precision
- NVIDIA nView multi-display technology
- On-Chip Video Processor
- Integrated Dual 400MHz RAMDACs
- Advanced Adaptive De-Interlacing
- NVIDIA Digital Vibrance Control (DVC) 3.0
- 64-phase Video Scaler
- True color 64x64 hardware cursor with alpha
- Optimized for 32, 24, 16, 15 and 8-bpp modes
- Integrated Full-Hardware MPEG Support
Model: e-GeForce 6600 GT 128MB DDR3 HDTV PCI-E
Driver Support: AutoInstaller with ADM Technology | ResChanger(C) | NVIDIA Unified Driver Architecture (UDA) | (Windows 98/ME/NT 4.0/2000/XP) | Direct Draw | Direct3D | DirectVideo | DirectX | Full OpenGL ICD for All Supported Operating Systems
Performance: NVIDIA GeForce 6600 GT | 500 MHz GPU | 8 Pixel Pipelines | 400 MHz RAMDAC
Memory: 128 MB, 128 bit DDR3 | 1000 MHz (effective) | 16 GB/s Memory Bandwidth
Interface: PCI-E 16X | VGA, DVI-I, HDTV
Resolution Refresh: 240 Hz Max Refresh Rate | 2048 x 1536 x 32bit x 85 Hz Max Analog | 1600 x 1200 Max Digital
Power Requirements: Minimum of a 350 Watt power supply.
Height: 3.88in - 88.4mm
Length: 6.88in - 174.6mm
EVGA video cards have attained "Designed for Windows XP" certification. These video cards have passed rigorous testing and take full advantage of all of the features and capabilities that Microsoft Windows XP.
CineFX 3.0 Engine
Powers the next generation of cinematic realism. Full support for Microsoft DirectX 9.0 Shader Model 3.0 enables stunning and complex special effects. Next-generation shader architecture delivers faster and smoother gameplay.
UltraShadow II Technology
Enhances the performance of bleeding-edge games, like id Softwares Doom III, that feature complex scenes with multiple light sources and objects. 2nd-generation technology delivers more than 4x the shadow processing power over the previous generation.
Intellisample 3.0 Technology
The industrys fastest antialiasing delivers ultra-realistic visuals, with no jagged edges, at lightning-fast speeds. Visual quality is taken to new heights through a new rotated grid sampling pattern.
Integrated HDTV Encoder
Provides world-class HDTV-out functionality up to and including 1920x1080i resolutions.
Adaptable Programmable Video Processor
PureVideos programmable technology adapts to new video encoding formats as they are developed to provide a future-proof video solution.
64-Bit Texture Filtering and Blending
Based on the OpenEXR technology from Industrial Light Magic, NVIDIAs 64-bit texture implementation sets new standards for image clarity and quality through floating point capabilities in shading, filtering, texturing, and blending.
Unified Driver Architecture (UDA)
Part of the NVIDIA Forceware unified software environment (USE). The NVIDIA UDA guarantees forward and backward compatibility with software drivers. Simplifies upgrading to a new NVIDIA product because all NVIDIA products work with the same driver software.
nView Multi-Display Technology
The nView hardware and software technology combination delivers maximum flexibility for multi-display options, and provides unprecedented end-user control of the desktop experience. NVIDIA GPUs are enabled to support multi-displays, but graphics cards vary. Please verify multi-display support in the graphics card before purchasing.
Digital Vibrance Control 3.0 Technology
Allows the user to adjust color controls digitally to compensate for the lighting conditions of their workspace, in order to achieve accurate, bright colors in all conditions.
PCI Express Certified
Designed to run perfectly with the next-generation PCI Express bus architecture. This new bus doubles the bandwidth of AGP 8X delivering over 4GB/s in both upstream and downstream data transfers.
NVIDIA SLI Technology
Dramatically scales performance by allowing two graphics cards to be run in parallel. Only available on select PCI-Express models.
NVIDIA PureVideo Technology
The combination of the GeForce 6 Series GPUs high-definition video processor and NVIDIA video decode software delivers unprecedented HD video, stunning picture clarity, smooth video, accurate color, and precise image scaling for all video content to turn your PC into a high-end home theater.
High-Speed GDDR3 Memory Interface
Support for the worlds fastest GDDR3 memory delivers fluid frame rates for even the most advanced games and applications.
Full-Speed 32-Bit Color Precision
Delivers increased image quality with no performance compromise.
Dual 400MHz RAMDACs
Blazing-fast RAMDACs support dual QXGA displays with ultra-high, ergonomic refresh ratesup to 2048x1536@85Hz.
Microsoft DirectX 9.0 Optimizations and Support
Ensures the best performance and application compatibility for all DirectX 9 applications.
OpenGL 2 Optimizations and Support
Ensures the best performance and application compatibility for all OpenGL applications.
Revolutionary Superscalar Architecture
Delivers up to 8x the shading power of previous generation products for screaming gaming performance.
WMV-HD Hardware Acceleration
