EVGA GeForce RTX 2070 GAMING 8GB Blower Fan

Video Card

[ Rear Ports ]

EVGA GeForce RTX 2070 GAMING 8GB Blower Fan Picture 53000EVGA GeForce RTX 2070 GAMING 8GB Blower Fan Picture 53001EVGA GeForce RTX 2070 GAMING 8GB Blower Fan Picture 53003EVGA GeForce RTX 2070 GAMING 8GB Blower Fan Picture 53004EVGA GeForce RTX 2070 GAMING 8GB Blower Fan Picture 53006
NVIDIA's GeForce RTX 2070 is part of the first wave of graphics cards based on the Turing GPU architecture. This generation represents only an incremental improvement in general graphics performance, making the RTX 2070 a little faster than the previous generation GTX 1080 (and slightly more expensive as well). The big thing that this new GPU architecture brings to the table is forward-looking features not found on previous GTX cards: dedicated RT cores for ray tracing and Tensor cores for machine learning inference. The RT cores are brand-new, while the Tensor cores have existed on previous Titan and Quadro cards - but this is the first time they've come to the mainstream GeForce series. This specialized hardware will allow for new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit.

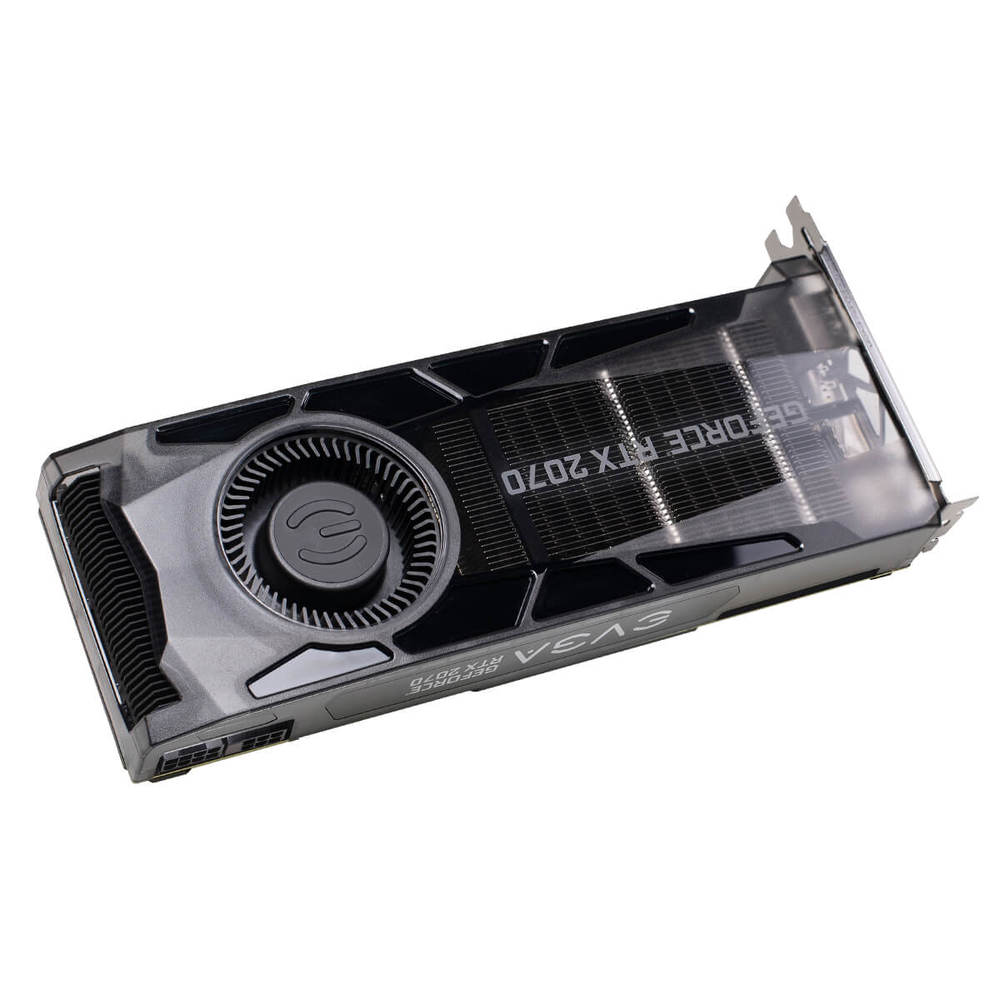

This particular variant, from EVGA, has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.

Finally, in regards to connectivity, this RTX 2070 has dropped DVI output entirely. There are still enough outputs for four monitors, though: one HDMI 2.0b and three DisplayPort 1.4. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.
Model: EVGA 08G-P4-2070-KR

Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  4096x2160
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Core Speed  1410 MHz
Boost Speed  1620 Mhz
Stream Processors  2304
Memory Specifications
Video Memory  8GB
Memory Type  GDDR6
Memory Speed  14,000 MHz
Memory Bus Width  256-bit
Bandwidth  448 GB/s
Additional Information
Cooling System  Loud Fan and Heatsink
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2

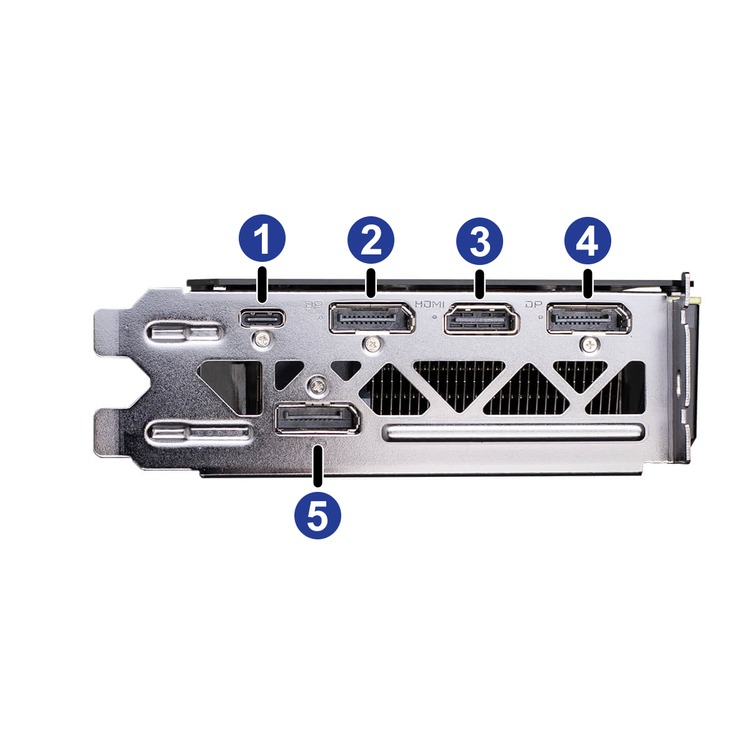

Outputs
Port 1  USB Type-C
Port 2  DisplayPort
Port 3  HDMI
Port 4  DisplayPort
Port 5  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  6-pin PCI-E
Dimensions
Length  266 mm (10.5 in)
Height  112 mm (4.4 in)
Width  42 mm (1.7 in)

Warranty:

3 Years
