EVGA GeForce RTX 3070 XC3 BLACK 8GB Open Air

Video Card

[ Rear Ports ]

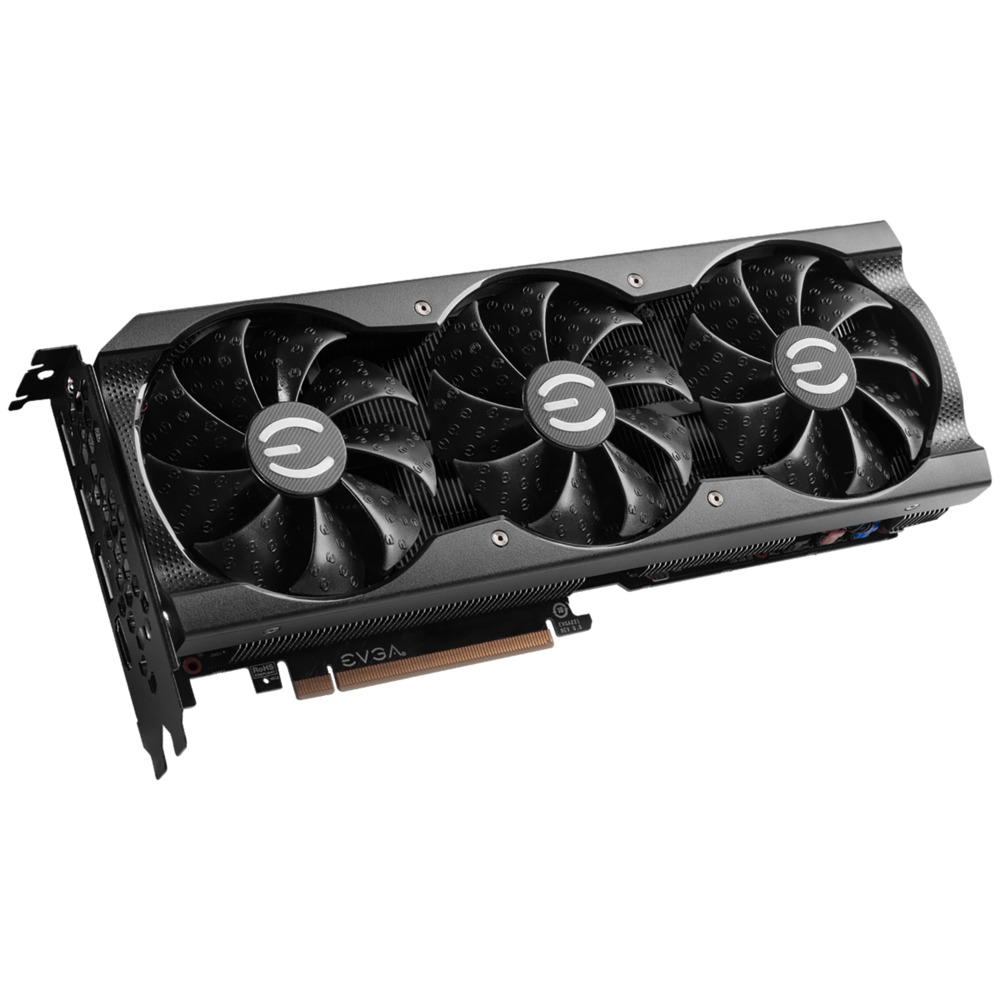

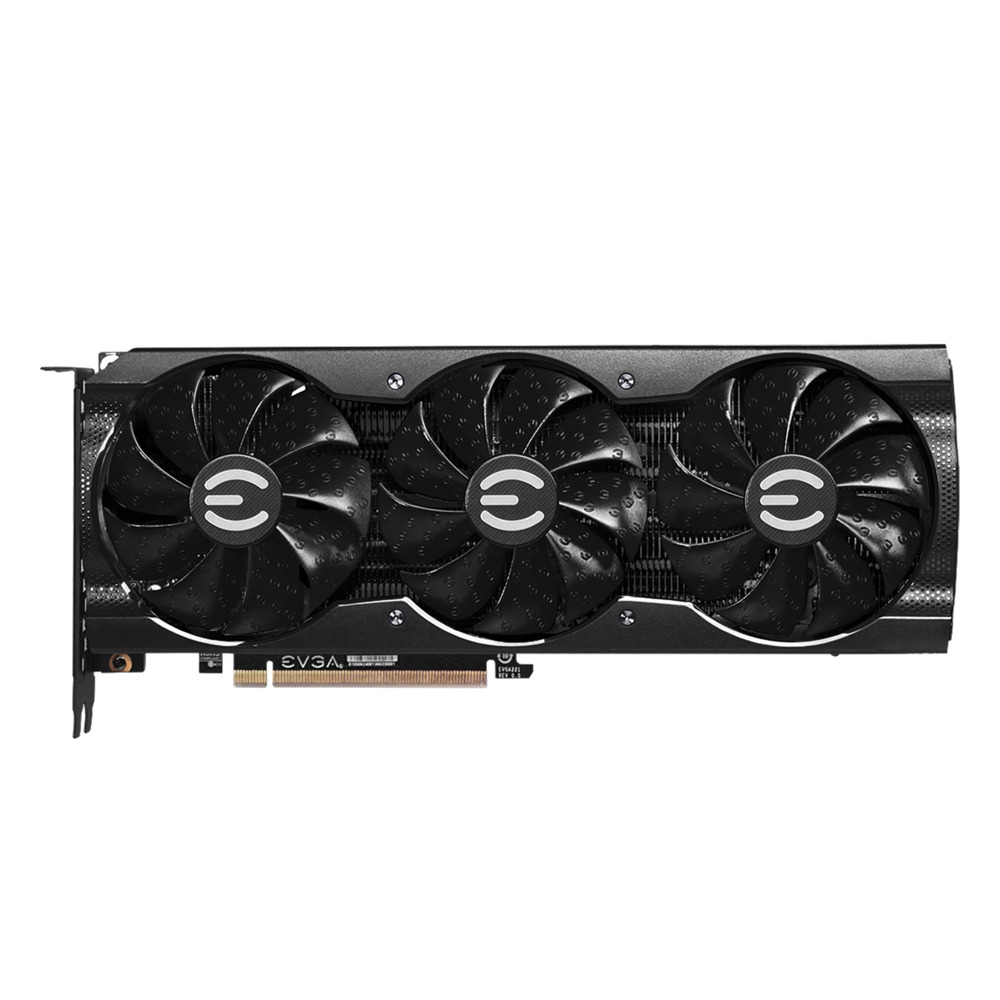

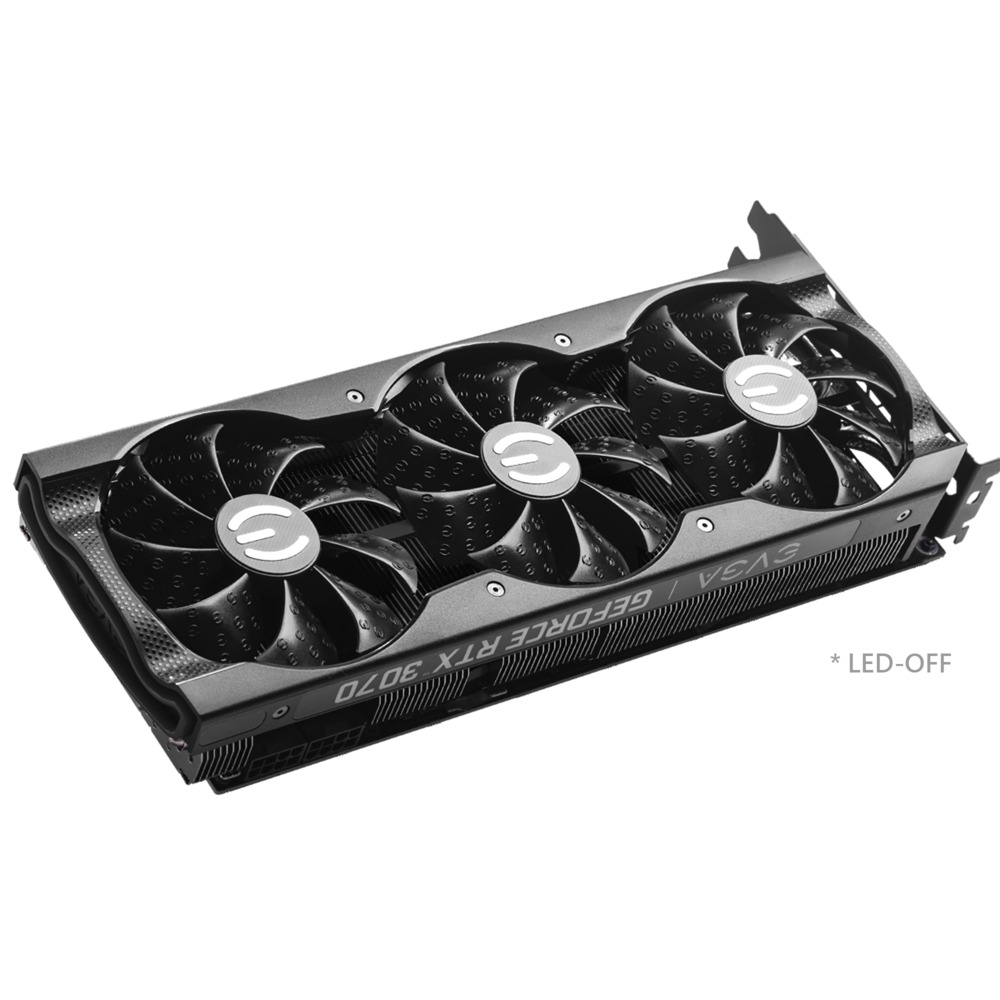

EVGA GeForce RTX 3070 XC3 BLACK 8GB Open Air Picture 68512EVGA GeForce RTX 3070 XC3 BLACK 8GB Open Air Picture 68513EVGA GeForce RTX 3070 XC3 BLACK 8GB Open Air Picture 68514EVGA GeForce RTX 3070 XC3 BLACK 8GB Open Air Picture 68515
NVIDIA's GeForce RTX 3070 is their third consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The performance increase this video card brings varies depending on workflow, with the biggest improvements coming in areas like 3D rendering, video editing, and game engines. In general, though, it should match or beat the performance of the older RTX 2080 Ti card in most applications.

This variant from EVGA uses a triple-fan cooling layout. It is a great design for keeping a single card running cool and quiet, but results in most of the heat it generates being pumped back into the computer. That makes this a poor choice for use in multi-GPU systems. In those cases, a video card with a blower-style fan and rear heat exhaust would be much better.

Finally, in regards to connectivity, this card has one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
Model: EVGA 08G-P5-3751-KR

Chipset Manufacturer  NVIDIA
Product Line  GeForce
Series  RTX 3000
Model  3070
Motherboard Connection  PCI Express 4.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
Lite Hash Rate  No
GPU Specifications
Core Speed  1,500 MHz
Boost Speed  1,725 Mhz
Stream Processors  5888
Memory Specifications
Video Memory  8GB
Memory Type  GDDR6
Memory Speed  14,000 MHz
Memory Bus Width  256-bit
Bandwidth  448 GB/s
Additional Information
Cooling System  Open Air Type
DirectX Support  DirectX 12
CUDA Support  11
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2+
Port 1  HDMI 2.1
Port 2  DisplayPort 1.4a
Port 3  DisplayPort 1.4a
Port 4  DisplayPort 1.4a
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  8-pin PCI-E
Length  286 mm (11.3 in)
Height  112 mm (4.4 in)
Width  46 mm (1.8 in)
Net Weight  0.932 kg (2.1 lbs)

Configure a custom computer with the EVGA GeForce RTX 3070 XC3 BLACK 8GB Open Air.
