Intel Arc Pro B70

Video Card

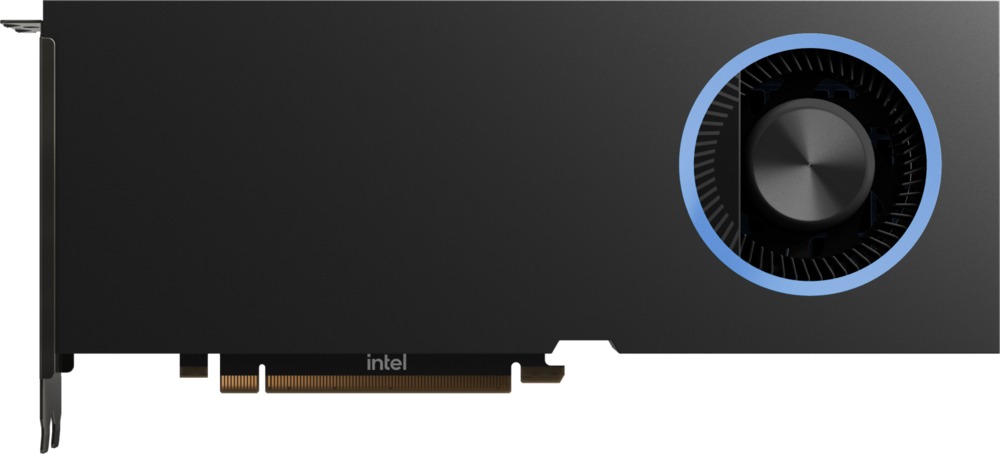

Intel Arc Pro B70 Main Picture

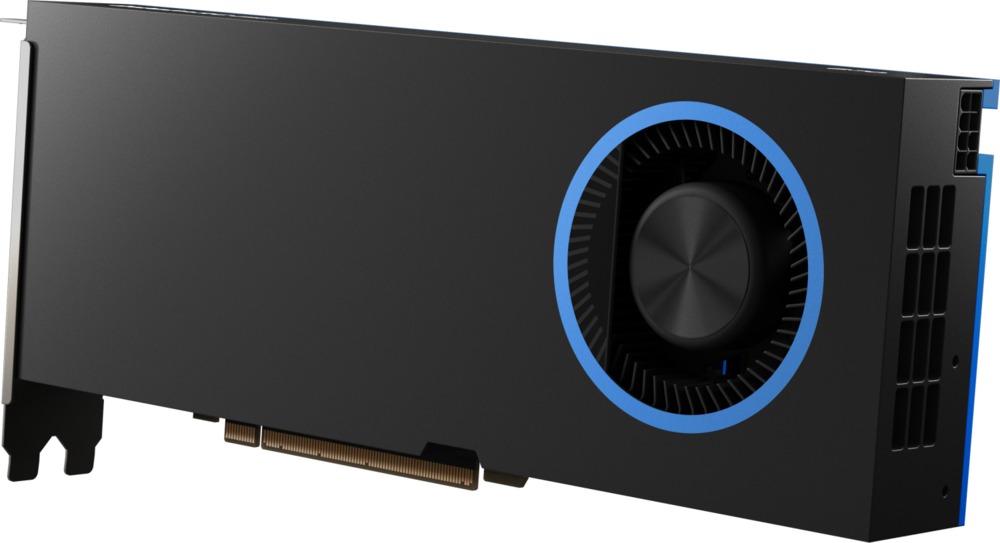

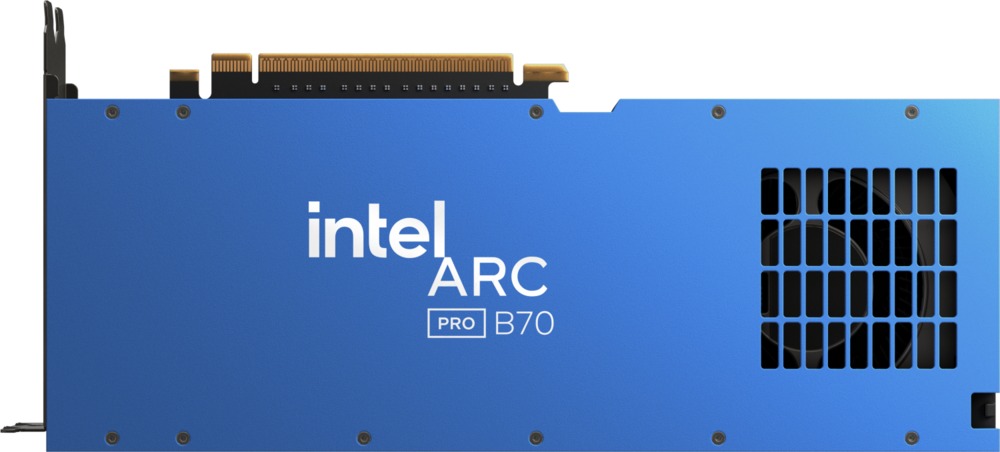

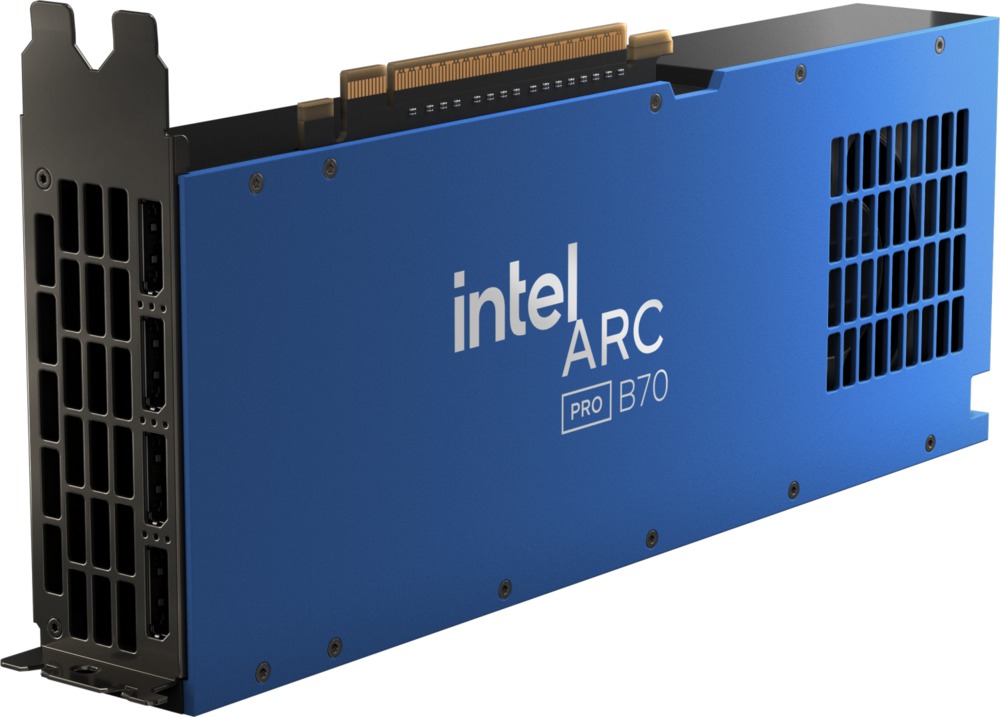

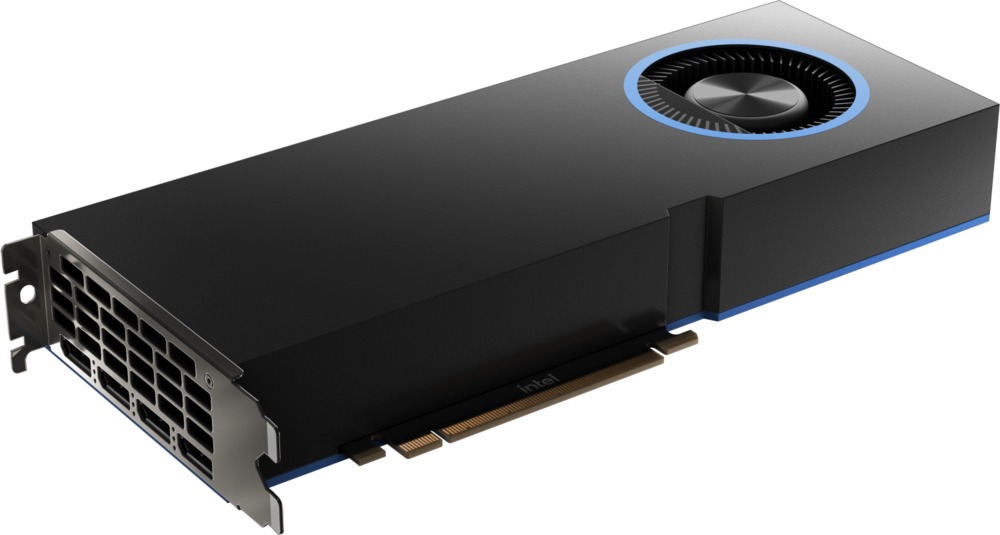

Intel Arc Pro B70 Picture 94737Intel Arc Pro B70 Picture 94738Intel Arc Pro B70 Picture 94739Intel Arc Pro B70 Picture 94740
Intel is still relatively new to the discrete GPU market, but their Arc Pro B70 is an impressive card for the price. It isn't as fast as other brands in many areas, but it packs 32GB of VRAM - making it excellent for workloads where memory capacity is more important that raw processing power, as well as budget-limited situations that can't afford to compromise on VRAM.

This card uses a standard-size dual-width cooler, with a blower fan. Those aren't the quietest, but do work well in multi-GPU configurations. With only 230W maximum power draw per card, fitting multiple into a large workstation or server is also completely viable without exceeding power or cooling limits.

As is standard for professional video cards, the B70 has four DisplayPort outputs.

Model: Intel 33P01IB0BB

Specifications

Chipset Manufacturer Intel
Product Line Arc Pro
Series B-Series
Model B70
Motherboard Connection PCI Express x16
Interface PCI Express 5.0 x16
Maximum Digital Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
TGP 230 W
GPU Specifications
Core Speed 2280 MHz
Boost Speed 2800 Mhz
AI Cores 256
RT Cores 32
Memory Specifications
Video Memory 32GB
Memory Type GDDR6
Memory Bus Width 256-bit
Bandwidth 608 GB/s
Performance
Single Precision Floating Point (Peak) 22.94 Tflops
Additional Information
Cooling System Blower Type
DirectX Support DirectX 12
OpenGL Support 4.6
Slot Width 2
Integrated GPU Brace Mounting Yes
Outputs
Port 1 DisplayPort 2.1b
Port 2 DisplayPort 2.1b
Port 3 DisplayPort 2.1b
Port 4 DisplayPort 2.1b
Power Connectors
Plug 1 8-pin PCI-E
Dimensions
Length 267 mm (10.5 in)
Height 99 mm (3.9 in)
Width 40 mm (1.6 in)
Net Weight 1.035 kg (2.3 lbs)
