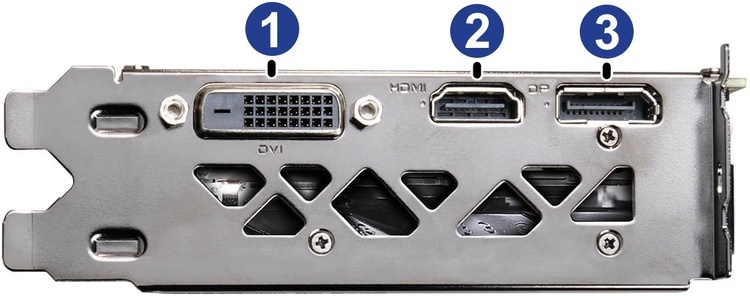

NVIDIA GeForce GTX 1660 Ti 6GB Open Air Ports
Dual-Link DVI-D Out Port: Outputs digital video at up to (2560x1600 @ 60Hz). Not compatible with VGA adapters.
HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
Sorry, we have no advice for this part!
Specifications
| Chipset Manufacturer | nVidia |
| Product Line | GeForce |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum HDMI Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 4096x2160 |
| Maximum DVI Resolution | 2560x1600 |
| Maximum Monitors Supported | 3 |
| HDCP Compliant | Yes |
| Multi-GPU Technology | Not Available |
GPU Specifications | |
| Core Speed | 1,500 MHz |
| Boost Speed | 1,860 Mhz |
| Stream Processors | 1,536 |
Memory Specifications | |
| Video Memory | 6GB |
| Memory Type | GDDR6 |
| Memory Speed | 12,000 MHz |
| Memory Bus Width | 192-bit |
| Bandwidth | 288 GB/s |
Additional Information | |
| Cooling System | Open Air Type |
| DirectX Support | DirectX 12 |
| CUDA Support | 6.5 |
| OpenGL Support | 4.5 |
| Removable Backplate | No |
| Slot Width | 2 |
Outputs | |
| Port 1 | DVI |
| Port 2 | HDMI |
| Port 3 | DisplayPort |
Power Connectors | |
| Plug 1 | 8-pin PCI-E |
Dimensions | |
| Length | 268 mm (10.6 in) |
| Height | 112 mm (4.4 in) |
| Width | 40 mm (1.6 in) |
