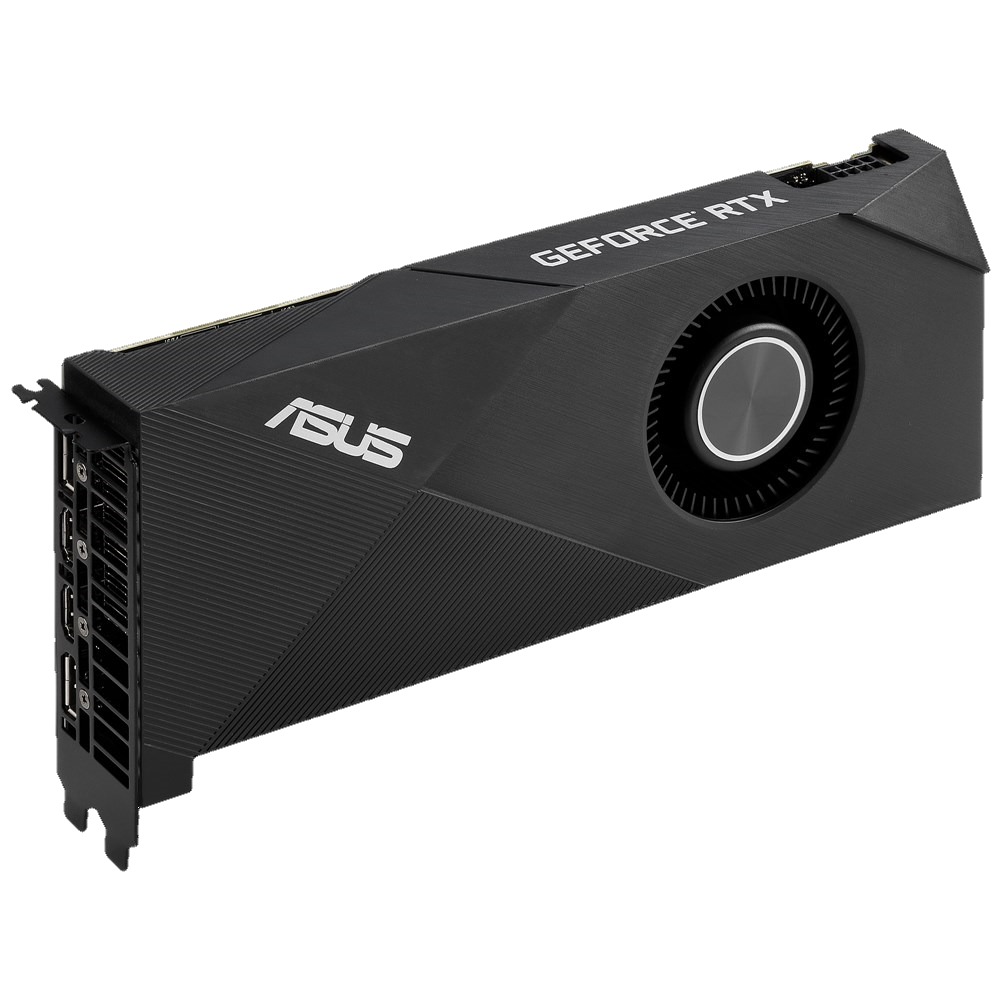

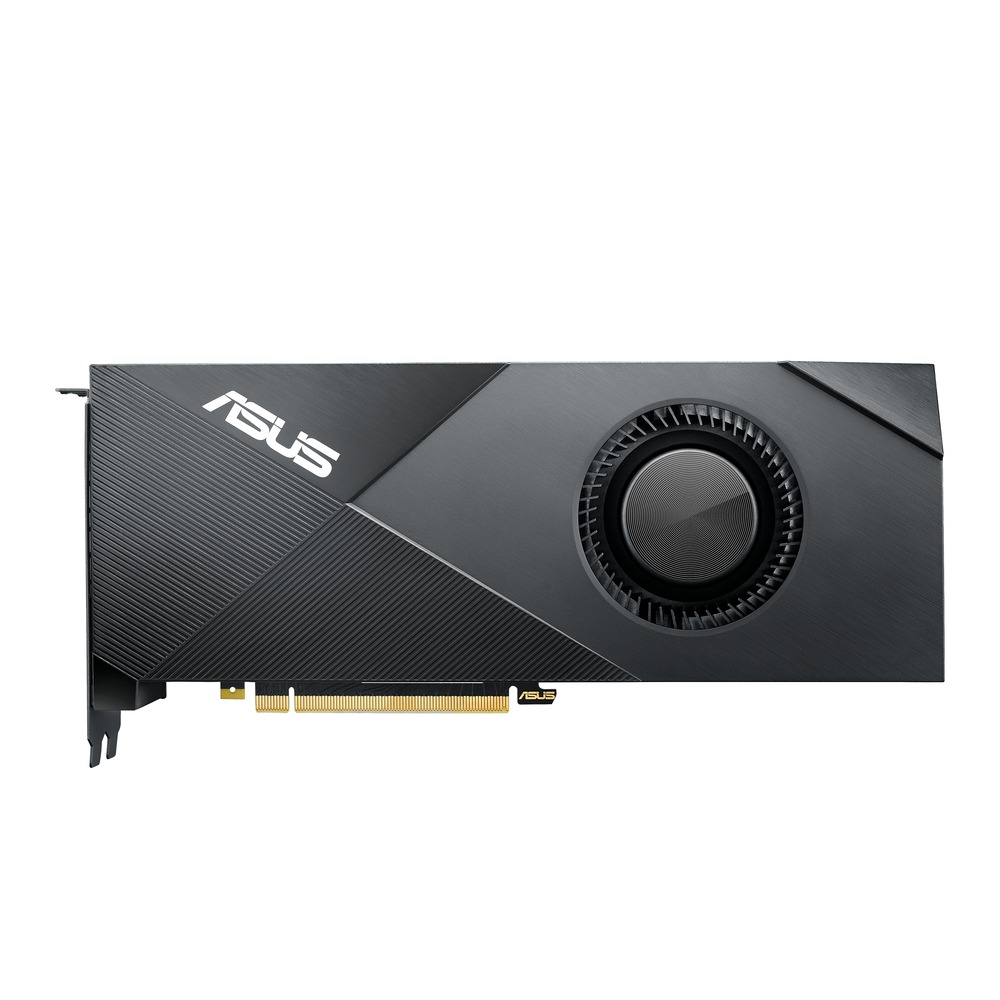

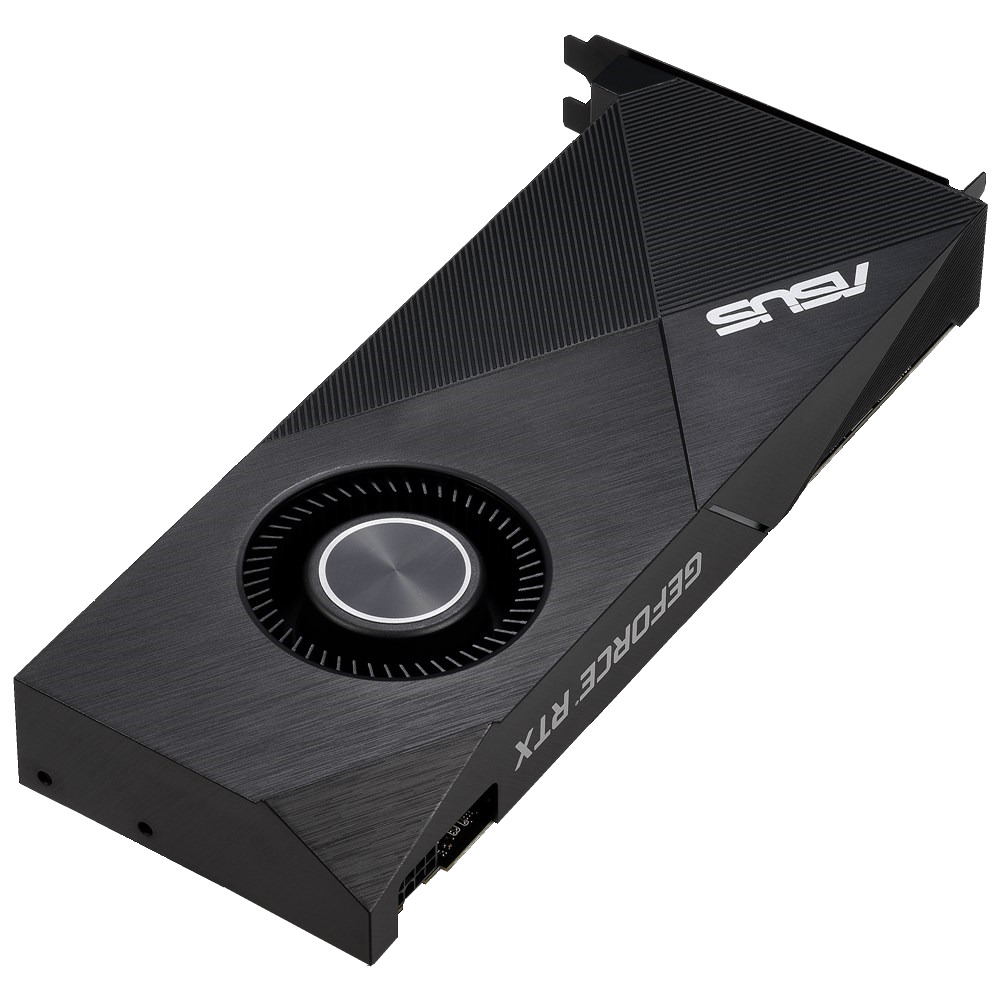

NVIDIA GeForce RTX 2060 6GB Blower Fan Ports
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
Sorry, we have no advice for this part!
Model: NVIDIA RTX 2060
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | GeForce |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum HDMI Resolution | 4096x3112 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| Multi-GPU Technology | Not Available |
GPU Specifications | |
| Core Speed | 1,365 MHz |
| Boost Speed | 1,680 Mhz |
| Stream Processors | 1,920 |
Memory Specifications | |
| Video Memory | 6GB |
| Memory Type | GDDR6 |
| Memory Speed | 14,000 MHz |
| Memory Bus Width | 192-bit |
| Bandwidth | 336 GB/s |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 12 |
| CUDA Support | 6.5 |
| OpenGL Support | 4.5 |
| Removable Backplate | No |
Outputs | |
| Port 1 | DisplayPort |
| Port 2 | HDMI |
| Port 3 | HDMI |
| Port 4 | DisplayPort |
Power Connectors | |
| Plug 1 | 8-pin PCI-E |
Dimensions | |
| Length | 268 mm (10.6 in) |
| Height | 113 mm (4.4 in) |
| Width | 40 mm (1.6 in) |
