NVIDIA GeForce RTX 2060 SUPER Founders Edition 8GB Open Air

Video Card

NVIDIA GeForce RTX 2060 SUPER Founders Edition 8GB Open Air Main Picture


NVIDIA GeForce RTX 2060 SUPER Founders Edition 8GB Open Air Picture 56441NVIDIA GeForce RTX 2060 SUPER Founders Edition 8GB Open Air Picture 56442
The GeForce RTX 2060 SUPER is part of the second wave of graphics cards based on the Turing GPU architecture. This mid-generation release increases performance substantially over the vanilla RTX 2060 - in fact it is on par with the RTX 2070, but at a lower price point. It even has 8GB of memory, the same as the RTX 2070 and 2080 (unlike the 6GB that the 2060 had). Like all RTX cards, this model includes dedicated RT cores for ray tracing and Tensor cores for machine learning inference. This specialized hardware enables new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit.

As with the previous RTX cards directly from NVIDIA, this "Founders Edition" card uses a dual-fan cooling layout. This is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems, especially in configurations where there will be no space between each card. In those cases, a video card with a blower-style fan and rear heat exhaust will be much better.

Finally, in regards to connectivity, the RTX 2060 SUPER supports up to four monitors. Unlike the higher-end RTX 2080 and 2080 Ti, it still has one dual-link DVI output - along with one HDMI 2.0b and two DisplayPort 1.4 outputs. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.

Model: NVIDIA 9001G1602565000

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Interface PCI Express 3.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 4096x3112
Maximum DisplayPort Resolution 7680x4320
Maximum DVI Resolution 2560x1600
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology Not Available
GPU Specifications
Core Speed 1,470 MHz
Boost Speed 1,650 Mhz
Stream Processors 2176
Memory Specifications
Video Memory 8GB
Memory Type GDDR6
Memory Speed 14,000 MHz
Memory Bus Width 256-bit
Bandwidth 448 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
CUDA Support 6.5
OpenGL Support 4.5
Removable Backplate No
Slot Width 2

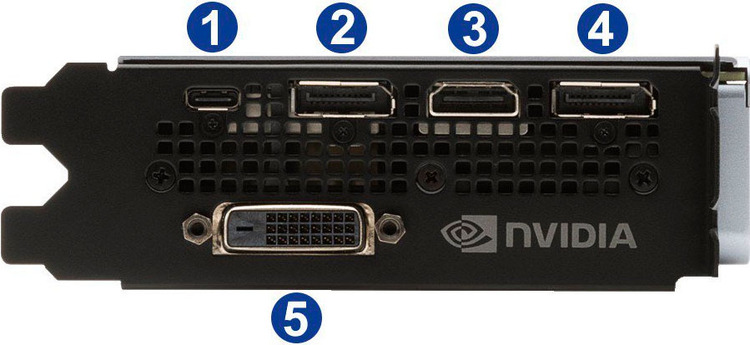

Outputs
Port 1 USB Type-C
Port 2 DisplayPort
Port 3 HDMI
Port 4 DisplayPort
Port 5 DVI
Power Connectors
Plug 1 8-pin PCI-E
Dimensions
Length 229 mm (9.0 in)
Height 113 mm (4.4 in)
Width 41 mm (1.6 in)
