NVIDIA GeForce RTX 2080 8GB Open Air

Video Card

NVIDIA GeForce RTX 2080 8GB Open Air Main Picture


NVIDIA GeForce RTX 2080 8GB Open Air Picture 52143NVIDIA GeForce RTX 2080 8GB Open Air Picture 52146NVIDIA GeForce RTX 2080 8GB Open Air Picture 52147NVIDIA GeForce RTX 2080 8GB Open Air Picture 52148
NVIDIA's GeForce RTX 2080 is one of the first graphics cards based on the Turing GPU architecture. This generation represents an incremental improvement in general graphics performance, as usual, along with the addition of two major features: dedicated RT cores for ray tracing and Tensor cores for machine learning inference. The RT cores are brand-new, while the Tensor cores have existed on previous Titan and Quadro cards - but this is the first time they've come to the mainstream GeForce series. This specialized hardware will allow for new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit. General performance should be about 20-30% faster than the previous GTX 1080, in situations where the video card is the limiting factor.

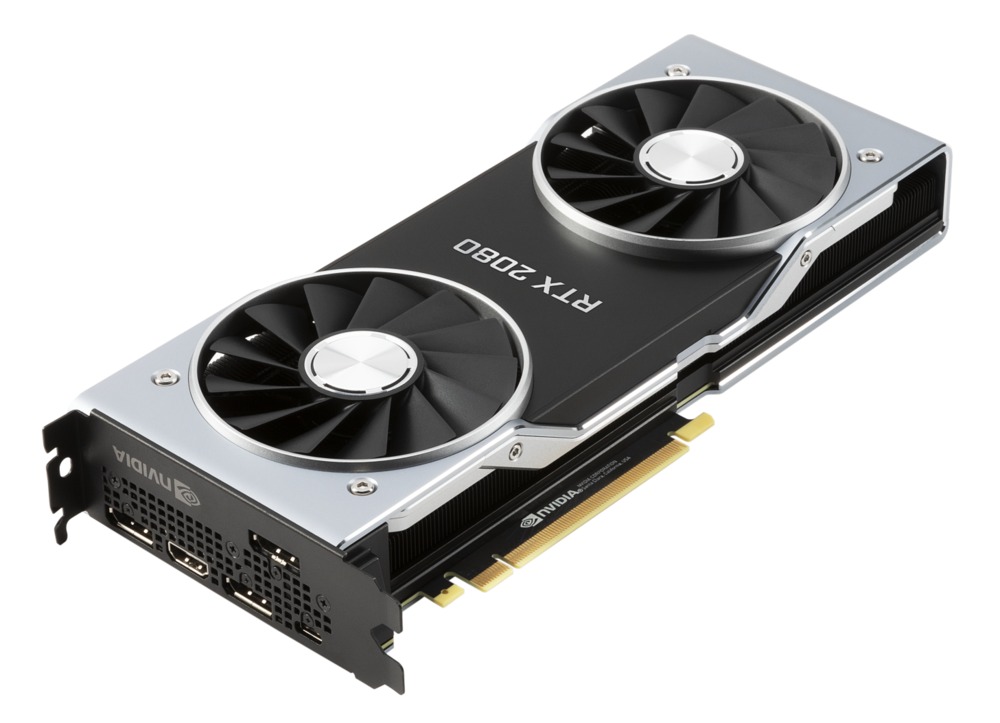

This variant has a dual-fan cooling layout. That is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems, especially in configurations where there will be no space between each card. In those cases, a video card with a blower-style fan and rear heat exhaust will be much better.

Finally, in regards to connectivity, the RTX 2080 has dropped DVI output entirely. There are still enough outputs for four monitors, though: one HDMI 2.0b and three DisplayPort 1.4. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Motherboard Connection PCI Express 3.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 4096x2160
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology NVLink (GeForce RTX)
GPU Specifications
Core Speed 1515 MHz
Boost Speed 1800 Mhz
Stream Processors 2944
Memory Specifications
Video Memory 8GB
Memory Type GDDR6
Memory Speed 14,000 MHz
Memory Bus Width 256-bit
Bandwidth 448 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
CUDA Support 6.5
OpenGL Support 4.5
Removable Backplate No

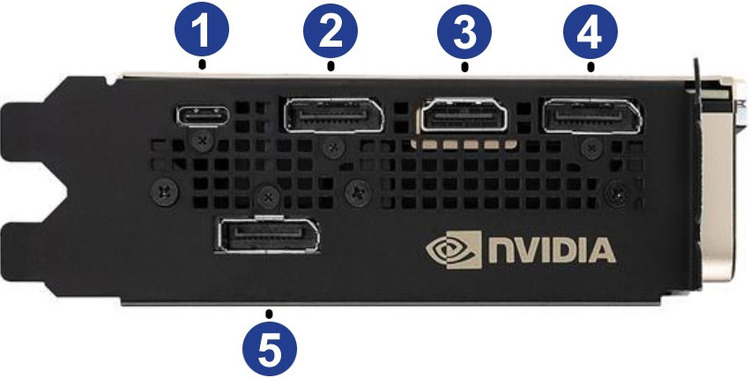

Outputs
Port 1 USB Type-C
Port 2 DisplayPort
Port 3 HDMI
Port 4 DisplayPort
Port 5 DisplayPort
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 6-pin PCI-E
Dimensions
Length 269 mm (10.6 in)
Height 114 mm (4.5 in)
Width 42 mm (1.7 in)
