NVIDIA's GeForce RTX 2080 Ti is the highest-end GeForce model based on the Turing GPU architecture. This generation represents an incremental improvement in general graphics performance, as usual, along with the addition of two major features: dedicated RT cores for ray tracing and Tensor cores for machine learning inference. The RT cores are brand-new, while the Tensor cores have existed on previous Titan and Quadro cards - but this is the first time they've come to the mainstream GeForce series. This specialized hardware will allow for new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit. The 2080 Ti should be about 20-30% faster than the previous GTX 1080 Ti in normal GPU-limited situations, and even higher in applications that utilize RT and/or Tensor cores.

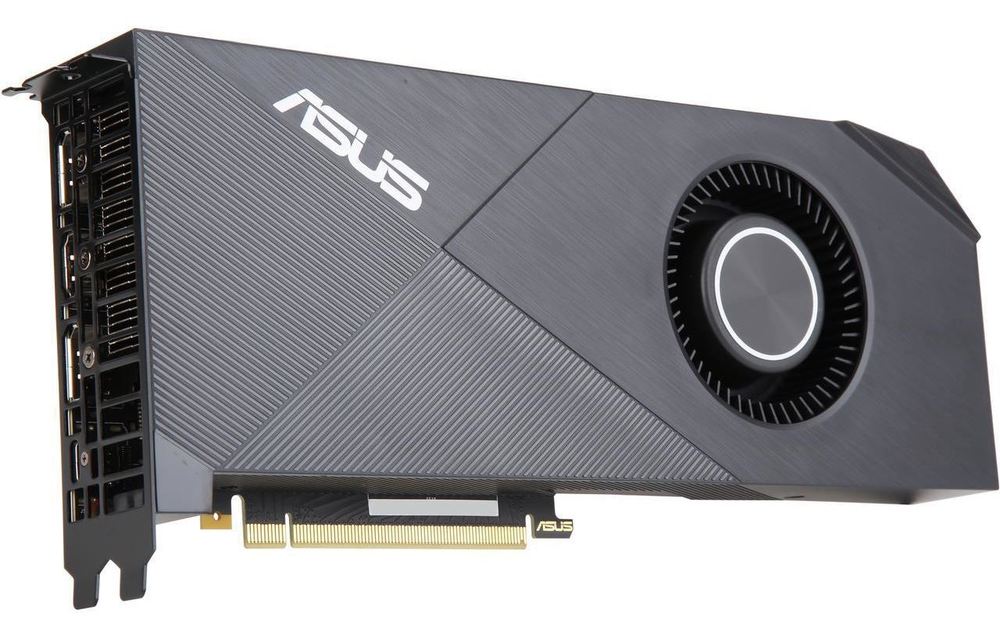

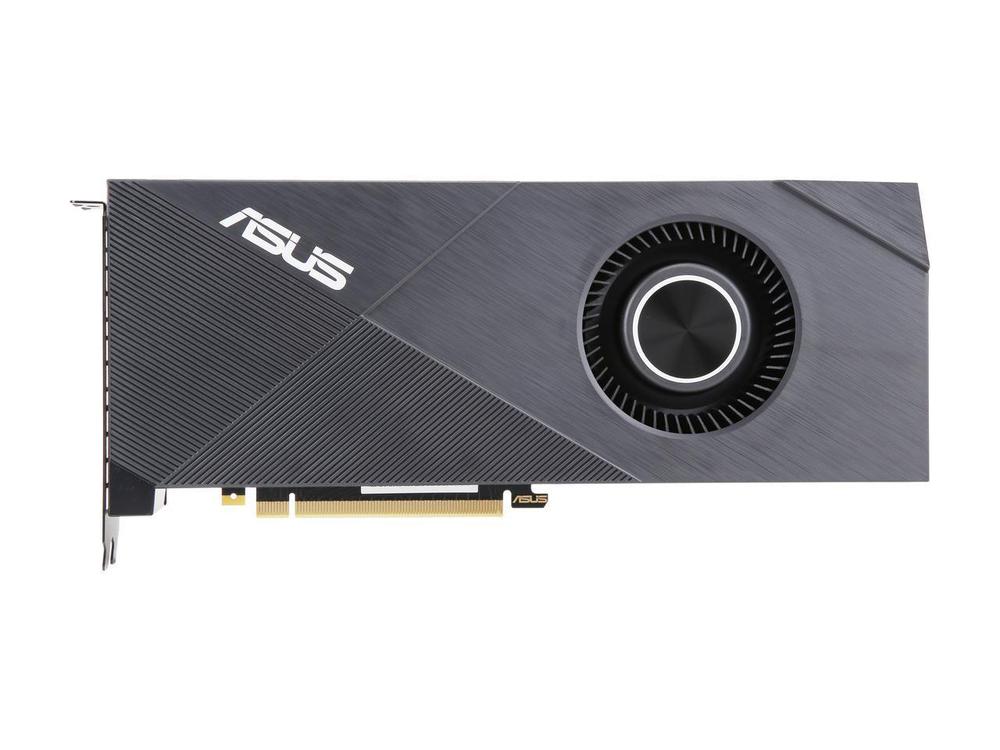

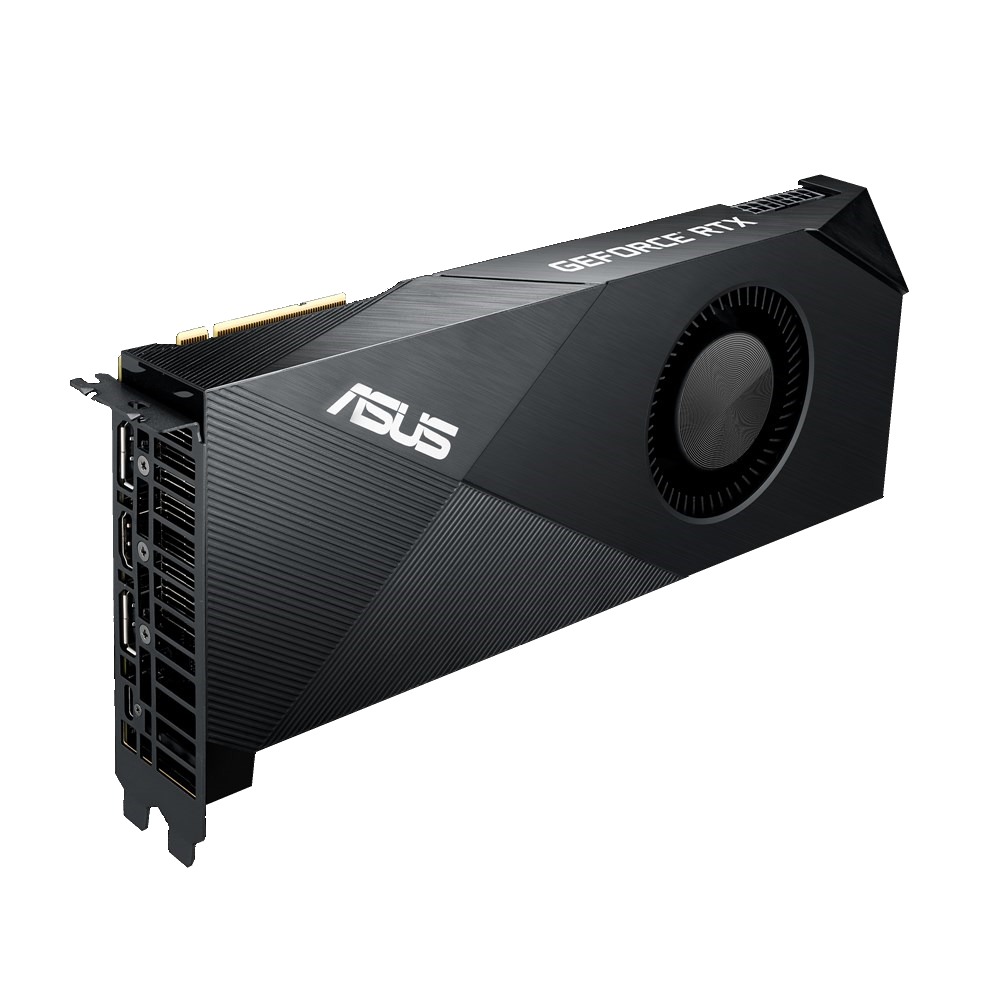

This particular variant has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.
Finally, in regards to connectivity, the RTX 2080 Ti has dropped DVI output entirely. There are still enough outputs for three monitors, though: one HDMI 2.0b and two DisplayPort 1.4. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.
This particular variant has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.
Finally, in regards to connectivity, the RTX 2080 Ti has dropped DVI output entirely. There are still enough outputs for three monitors, though: one HDMI 2.0b and two DisplayPort 1.4. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | GeForce |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum HDMI Resolution | 4096x2160 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| Multi-GPU Technology | NVLink (GeForce RTX) |
GPU Specifications | |
| Core Speed | 1350 MHz |
| Boost Speed | 1545 Mhz |
| Stream Processors | 4352 |
Memory Specifications | |
| Video Memory | 11GB |
| Memory Type | GDDR6 |
| Memory Speed | 14,000 MHz |
| Memory Bus Width | 352-bit |
| Bandwidth | 616 GB/s |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 12 |
| CUDA Support | 6.5 |
| OpenGL Support | 4.5 |
| Removable Backplate | No |
Outputs | |
| Port 1 | USB Type-C |
| Port 2 | DisplayPort |
| Port 3 | HDMI |
| Port 4 | DisplayPort |
| Port 5 | DisplayPort |
Power Connectors | |
| Plug 1 | 8-pin PCI-E |
| Plug 2 | 8-pin PCI-E |
Dimensions | |
| Length | 269 mm (10.6 in) |
| Height | 114 mm (4.5 in) |
| Width | 42 mm (1.7 in) |
