NVIDIA GeForce RTX 3070 8GB Blower

Video Card

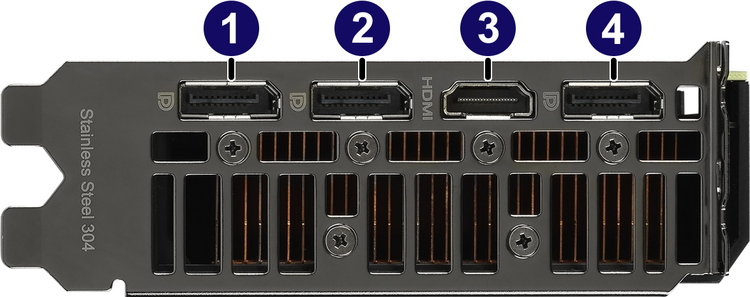

[ Rear Ports ]

NVIDIA GeForce RTX 3070 8GB Blower Picture 67103NVIDIA GeForce RTX 3070 8GB Blower Picture 67104NVIDIA GeForce RTX 3070 8GB Blower Picture 67105NVIDIA GeForce RTX 3070 8GB Blower Picture 67106NVIDIA GeForce RTX 3070 8GB Blower Picture 67107NVIDIA GeForce RTX 3070 8GB Blower Picture 67108
NVIDIA's GeForce RTX 3070 is their third consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The performance increase this video card brings varies depending on workflow, with the biggest improvements coming in areas like 3D rendering, video editing, and game engines. In general, though, it should match or beat the performance of the older RTX 2080 Ti card in most applications.

This variant uses a single-fan, blower-style cooler. That means most of the heat generated by the card is exhausted out the back of the system, making this design ideal for multi-GPU configurations. In trade it will make a lot more noise under load, since the one fan has to run at much higher RPMs in order to dissipate the same amount of heat as the two or three fans on other variants.

Finally, in regards to connectivity, this card has one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
Model: NVIDIA 3070 Blower

Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  GeForce
Series  RTX 3000
Model  3070
Motherboard Connection  PCI Express 4.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Core Speed  1,500 MHz
Boost Speed  1,725 Mhz
Stream Processors  5888
Memory Specifications
Video Memory  8GB
Memory Type  GDDR6
Memory Speed  14,000 MHz
Memory Bus Width  256-bit
Bandwidth  448 GB/s
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  11
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Outputs
Port 1  HDMI
Port 2  DisplayPort
Port 3  DisplayPort
Port 4  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  8-pin PCI-E
Dimensions
Length  269 mm (10.6 in)
Height  112 mm (4.4 in)
Width  40 mm (1.6 in)
Net Weight  1.1 kg (2.4 lbs)


Configure a custom computer with the NVIDIA GeForce RTX 3070 8GB Blower.
