NVIDIA GeForce RTX 3070 Ti 8GB Founders Edition

Video Card

[ Rear Ports ]

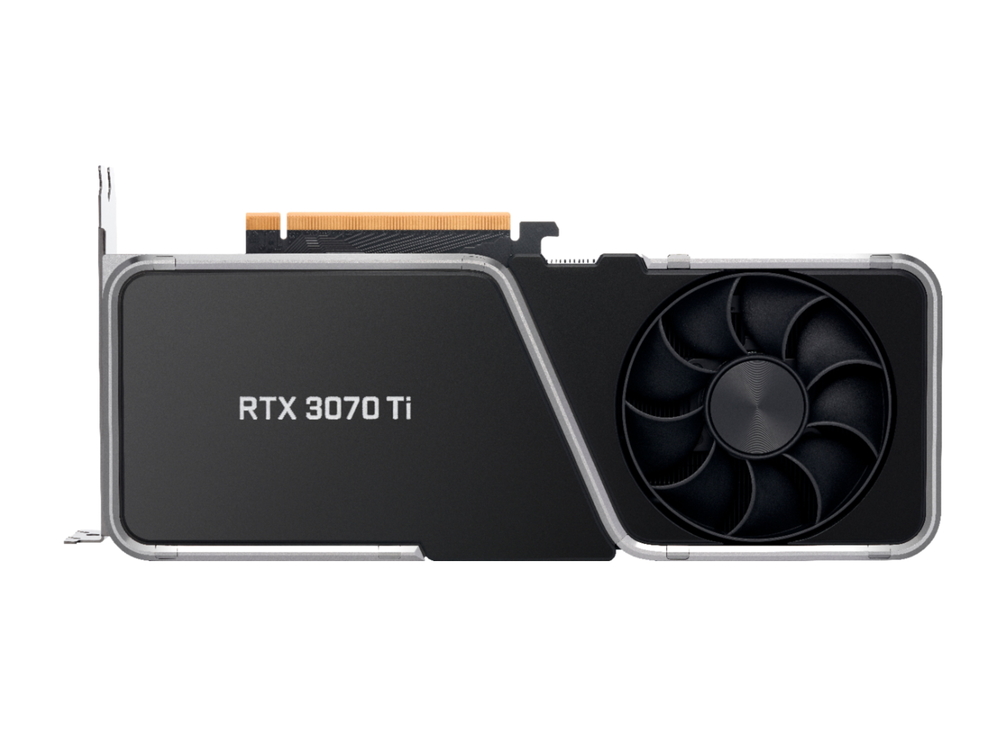

NVIDIA GeForce RTX 3070 Ti 8GB Founders Edition Picture 69738NVIDIA GeForce RTX 3070 Ti 8GB Founders Edition Picture 69739NVIDIA GeForce RTX 3070 Ti 8GB Founders Edition Picture 69071
NVIDIA's GeForce RTX 3070 Ti is a consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The RTX 30-series is substantial faster than the previous 20-series, and this particular model lands midway between the RTX 3070 and 3080 in terms of 3D rendering, video editing, and game engine performance - will offering the same 8GB of onboard VRAM as the 3070.

This variant, directly from NVIDIA, uses a unique dual-fan cooling layout. It is a great design for keeping a single card running cool and quiet, venting some heat out the back of the computer while circulating the rest upward within the case. We have found in our testing that this makes a dual-card configuration viable, as long as the chassis fans can ramp up to help with cooling, but for more than two GPUs you would need to use models with a blower-style fan and rear heat exhaust instead.

Finally, in regards to connectivity, this card has one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
Model: NVIDIA 900-1G143-2515-000

Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  GeForce
Series  RTX 3000
Model  3070 Ti
Motherboard Connection  PCI Express 4.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Core Speed  1,580 MHz
Boost Speed  1,770 Mhz
Stream Processors  6144
Memory Specifications
Video Memory  8GB
Memory Type  GDDR6X
Memory Speed  19,000 MHz
Memory Bus Width  256-bit
Bandwidth  608 GB/s
Additional Information
Cooling System  Open Air Type
DirectX Support  DirectX 12
CUDA Support  11
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Outputs
Port 1  HDMI 2.1
Port 2  DisplayPort 1.4a
Port 3  DisplayPort 1.4a
Port 4  DisplayPort 1.4a
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  8-pin PCI-E
Dimensions
Length  267 mm (10.5 in)
Height  112 mm (4.4 in)
Width  42 mm (1.7 in)
Net Weight  1.192 kg (2.6 lbs)
