NVIDIA GeForce RTX 3070 Ti 8GB Open Air

Video Card

NVIDIA GeForce RTX 3070 Ti 8GB Open Air Picture 69976NVIDIA GeForce RTX 3070 Ti 8GB Open Air Picture 69975
NVIDIA's GeForce RTX 3070 Ti is a consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. The RTX 30-series is substantial faster than the previous 20-series, and this particular model lands midway between the RTX 3070 and 3080 in terms of 3D rendering, video editing, and game engine performance - while offering the same 8GB of onboard VRAM as the 3070.

This variant uses a multi-fan cooling layout. It is a great design for keeping a single card running cool and quiet, but results in some of the heat the card generates being pumped back into the computer. That makes this variant a poor choice for use in systems with more than one or maybe two GPUs. In those situations, video cards with a blower-style fan and rear heat exhaust would be much better.

Finally, in regards to connectivity, this card has one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 3000
Model 3070 Ti
Motherboard Connection PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology Not Available
Lite Hash Rate Yes
GPU Specifications
Core Speed 1,580 MHz
Boost Speed 1,770 Mhz
Stream Processors 6144
Memory Specifications
Video Memory 8GB
Memory Type GDDR6X
Memory Speed 19,000 MHz
Memory Bus Width 256-bit
Bandwidth 608 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 2

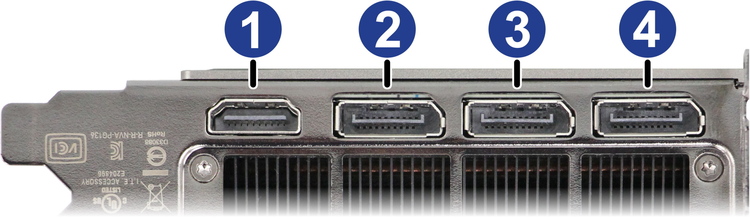

Outputs
Port 1 HDMI 2.1
Port 2 DisplayPort 1.4a
Port 3 DisplayPort 1.4a
Port 4 DisplayPort 1.4a
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 8-pin PCI-E
Dimensions
Length 267 mm (10.5 in)
Height 112 mm (4.4 in)
Width 42 mm (1.7 in)
Net Weight 1.192 kg (2.6 lbs)
