NVIDIA GeForce RTX 3080 Ti 12GB Blower

Video Card

[ Rear Ports ]

NVIDIA GeForce RTX 3080 Ti 12GB Blower Picture 72910NVIDIA GeForce RTX 3080 Ti 12GB Blower Picture 72909NVIDIA GeForce RTX 3080 Ti 12GB Blower Picture 72911NVIDIA GeForce RTX 3080 Ti 12GB Blower Picture 72912NVIDIA GeForce RTX 3080 Ti 12GB Blower Picture 72914
NVIDIA's GeForce RTX 3080 Ti is a high-end consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. This model offers 3D performance very close to the level of the top-end RTX 3090, but with half the onboard memory (12GB instead of 24GB). That makes it an excellent choice for applications where extreme graphics performance is required, but massive amounts of VRAM are not necessary.

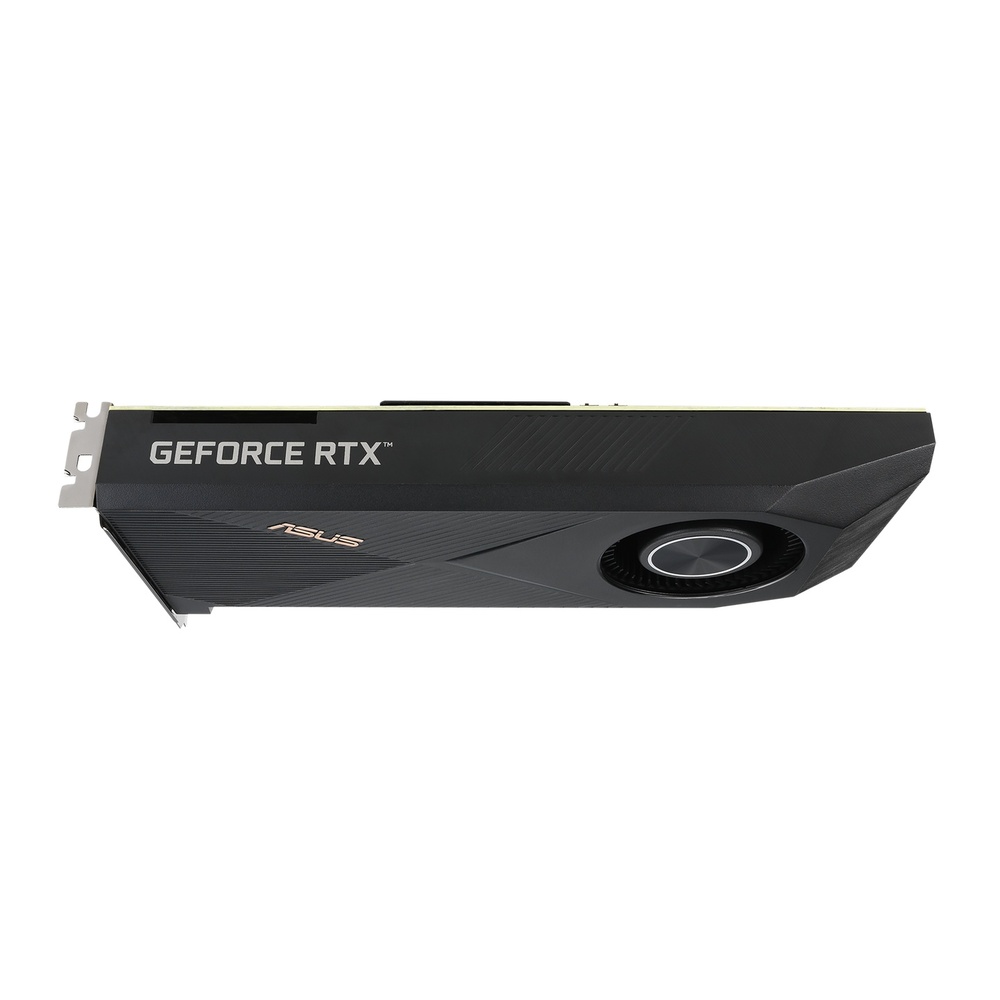

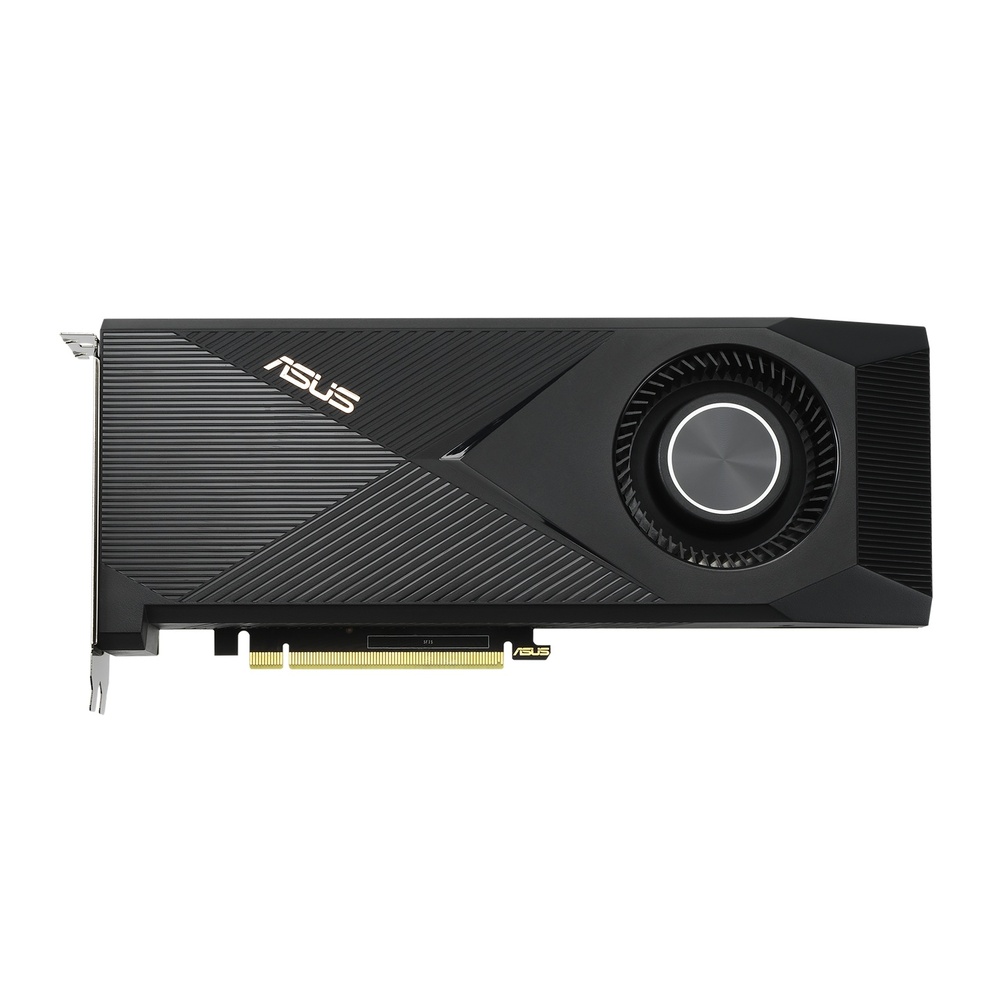

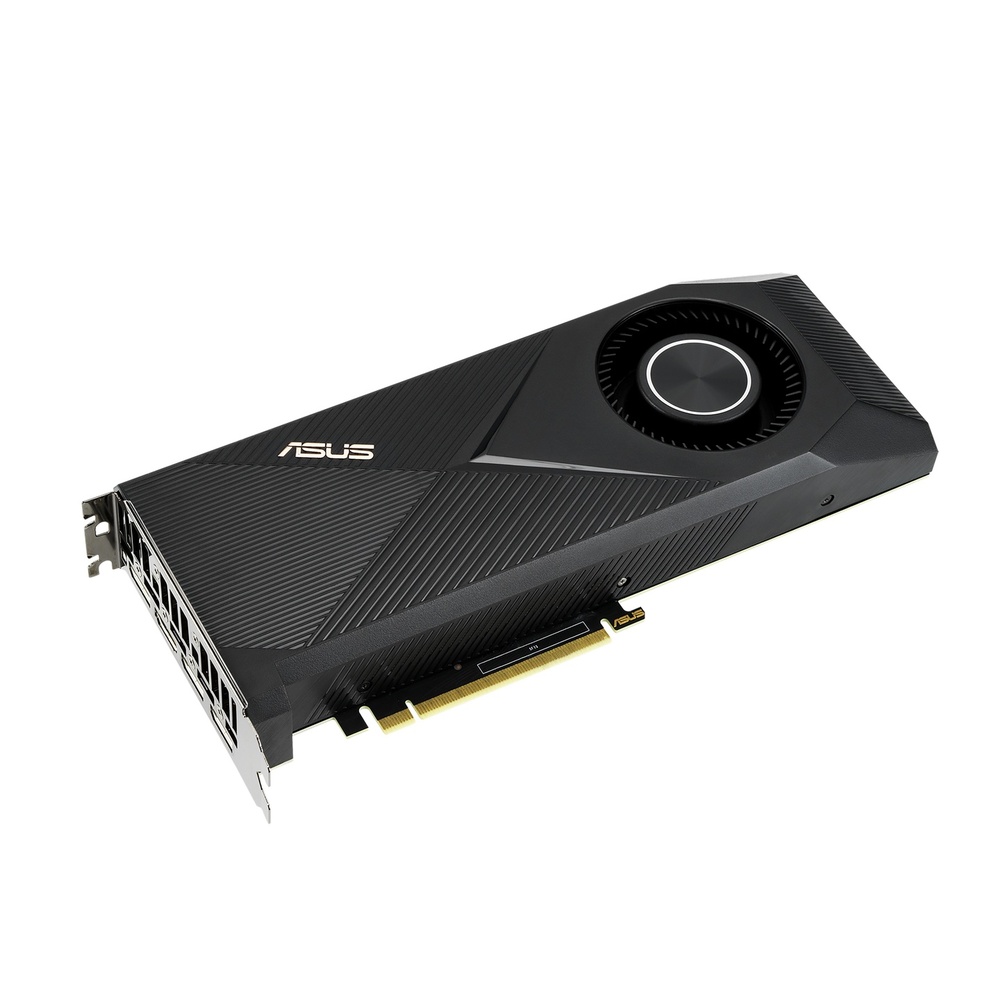

This variant uses a single-fan, blower-style cooler. That means most of the heat generated by the card is exhausted out the back of the system, making this design ideal for multi-GPU configurations. In trade it will make a lot more noise under load, since the one fan has to run at much higher RPMs in order to dissipate the same amount of heat as the two or three fans on other variants.

Finally, in regards to connectivity, there are one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  GeForce
Series  RTX 3000
Model  3080 Ti
Motherboard Connection  PCI Express 4.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
Lite Hash Rate  Yes
GPU Specifications
Core Speed  1,365 MHz
Boost Speed  1,665 Mhz
Stream Processors  10240
Memory Specifications
Video Memory  12GB
Memory Type  GDDR6X
Memory Speed  19,000 MHz
Memory Bus Width  384-bit
Bandwidth  912 GB/s
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  11
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Outputs
Port 1  HDMI 2.1
Port 2  DisplayPort 1.4a
Port 3  DisplayPort 1.4a
Port 4  DisplayPort 1.4a
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  8-pin PCI-E
Dimensions
Length  267 mm (10.5 in)
Height  112 mm (4.4 in)
Width  42 mm (1.7 in)
Net Weight  1.366 kg (3.0 lbs)


Configure a custom computer with the NVIDIA GeForce RTX 3080 Ti 12GB Blower.
