NVIDIA GeForce RTX 3080 Ti 12GB Founders Edition

Video Card

NVIDIA GeForce RTX 3080 Ti 12GB Founders Edition Picture 69359NVIDIA GeForce RTX 3080 Ti 12GB Founders Edition Picture 69358NVIDIA GeForce RTX 3080 Ti 12GB Founders Edition Picture 69360NVIDIA GeForce RTX 3080 Ti 12GB Founders Edition Picture 69361NVIDIA GeForce RTX 3080 Ti 12GB Founders Edition Picture 69362
NVIDIA's GeForce RTX 3080 Ti is a high-end consumer graphics card based on the Ampere architecture, which in turn is the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. This model offers 3D performance very close to the level of the top-end RTX 3090, but with half the onboard memory (12GB instead of 24GB). That makes it an excellent choice for applications where extreme graphics performance is required, but massive amounts of VRAM are not necessary.

The "Founders Edition" 3080 Ti from NVIDIA sports a dual-fan cooling system, which is in fact the same size and style of cooler that their RTX 3080 has. However, this card draws more power and generates more heat - so under load it will run louder than the RTX 3080 (or the 3090, which uses a much bigger cooling system). While it is able to keep a single card cooled adequately, most of the heat is pumped back into the computer. That makes these a poor choice for use in multi-GPU systems. In those cases, a different video card with a blower-style fan and rear heat exhaust would be much better.

Finally, in regards to connectivity, there are one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).

Model: NVIDIA 9001G1332518000

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 3000
Model 3080 Ti
Motherboard Connection PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology Not Available
Lite Hash Rate Yes
GPU Specifications
Core Speed 1,365 MHz
Boost Speed 1,665 Mhz
Stream Processors 10240
Memory Specifications
Video Memory 12GB
Memory Type GDDR6X
Memory Speed 19,000 MHz
Memory Bus Width 384-bit
Bandwidth 912 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 2

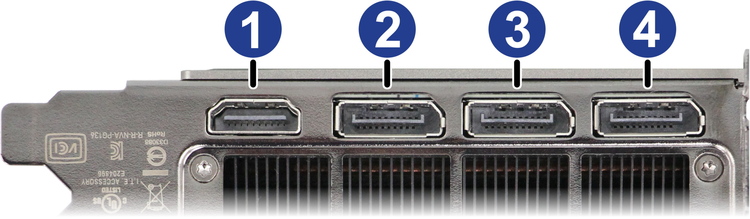

Outputs
Port 1 HDMI 2.1
Port 2 DisplayPort 1.4a
Port 3 DisplayPort 1.4a
Port 4 DisplayPort 1.4a
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 8-pin PCI-E
Uses Power Adapter Yes
Dimensions
Length 293 mm (11.5 in)
Height 112 mm (4.4 in)
Width 42 mm (1.7 in)
Net Weight 1.366 kg (3.0 lbs)
